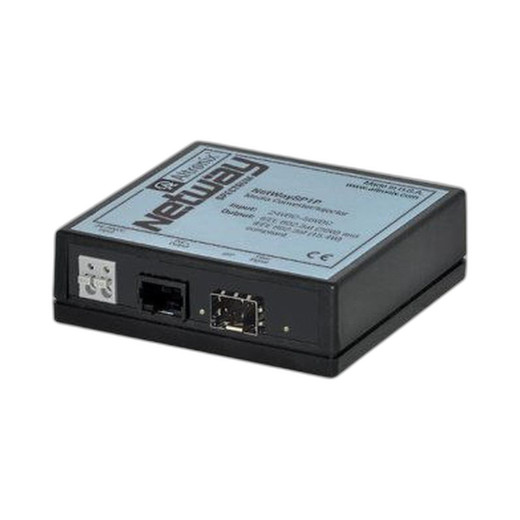

Altronix NETWAYSP1P PoE Injector Fiber Converter

Altronix NETWAYSP1P PoE Injector and Fiber Media Converter

The Altronix NETWAYSP1P is a powered Ethernet to fiber media converter and PoE injector designed for security integrators and system designers who need to extend IP camera and access control connectivity over extended distances. This combination injector/converter unit delivers Power over Ethernet to remote IP devices while simultaneously converting between copper Ethernet and fiber optic media, eliminating the need for separate components and reducing installation footprint.

Overview

The NETWAYSP1P addresses a critical requirement in large-scale security deployments: reliable power and data delivery across distances where standard copper cabling becomes impractical or cost-prohibitive. By combining PoE injection with fiber media conversion in a single enclosure, integrators can simplify network topology planning and reduce bill-of-materials complexity. The unit operates from a 230VAC source, delivering up to 30W of PoE output to connected IP devices such as cameras, door access modules, and wireless access points. Its dual-function design makes it particularly valuable in campus, industrial, and critical infrastructure installations where fiber backbone runs are standard practice.

Key Features

• PoE Injection (30W Maximum): Supplies up to 30W of power to IP endpoints over standard Ethernet cabling, supporting high-power cameras and dual-port devices without requiring separate field power.
• Fiber Media Conversion: Converts between copper RJ45 Ethernet and fiber optic transmission, enabling long-distance, noise-immune connectivity beyond copper distance limitations.
• 230VAC Input: Wall-powered design eliminates battery backup requirements and simplifies installation in standard electrical environments.
• UL Listed and CE Approved: Meets North American and European safety and EMC standards, satisfying requirements for commercial security system installations.
• Integrated Injector/Converter Design: Single-unit solution reduces component count, installation labor, and rack/enclosure space compared to separate injector and media converter modules.
• Application Flexibility: Suitable for video surveillance, access control, intercoms, and other IP security devices in extended-distance network architectures.

Integration and Deployment

The NETWAYSP1P integrates into security system designs where fiber optic runs extend beyond standard copper distance limits (typically 100 meters per IEEE 802.3). Install the unit at the boundary between copper and fiber segments of your network backbone. Connect the PoE source (typically a network switch or injector) to the unit's input, then connect your IP endpoint device to the copper output port. The unit's PoE pass-through ensures full power delivery to the remote device, while fiber connectivity isolates the remote segment from electrical noise and ground loop issues common in large installations.

For multi-device deployments, cascade multiple NETWAYSP1P converters to serve different fiber segments or zones. The 30W PoE budget supports standard-power IP cameras (typically 10–25W), making it suitable for single or dual-endpoint runs per converter.

As a 230VAC-powered device, the NETWAYSP1P requires permanent power infrastructure at its installation location. Plan AC outlet placement during site survey and ensure power is protected by facility-level surge protection and UPS systems as appropriate for your critical infrastructure classification.

Jerry Tildsen

I've evaluated the NETWAYSP1P during planning phases for campus-scale surveillance and access control deployments where fiber backbone infrastructure already exists. This unit delivers genuine value when you need to inject PoE onto a fiber-extended network segment without deploying additional powered switches or separate conversion equipment at remote locations.

Technical Highlights:

• 30W PoE Budget: Sufficient for single high-power cameras or dual standard-power endpoints per converter, matching typical security device power draw (10–25W range).
• Fiber Isolation: Eliminates ground loop and EMI issues inherent to long copper runs, particularly valuable in industrial and utility environments with significant electrical noise.
• UL and CE Compliance: Meets safety and EMC requirements for commercial security installations, simplifying compliance documentation and reducing audit risk.

Deployment Considerations:

• Verify 230VAC availability at intended installation location; this is not a portable or battery-backed device. Plan accordingly during site survey.
• Confirm fiber connector type compatibility (ST, SC, LC, etc.) with your existing fiber backbone before ordering; specification detail was not provided in available documentation.
• The 30W maximum output is per-unit; for high-density remote segments, plan multiple NETWAYSP1P converters rather than attempting to power multiple cameras from a single injector.

For integrators working with large fiber-based security networks, the NETWAYSP1P eliminates the cost and complexity of deploying powered switches at every fiber endpoint. It's a focused, reliable solution for the specific requirement of injecting PoE onto fiber-extended segments. Order with confidence for campus, industrial, and critical infrastructure projects.
