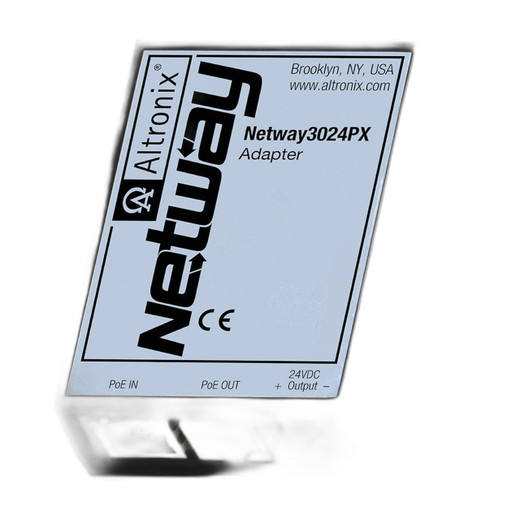

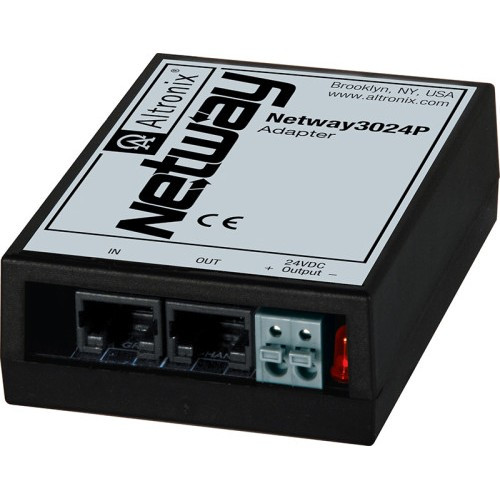

Altronix NETWAY3024P PoE+ to 24V DC Adapter
The Altronix NETWAY3024P is a power conversion adapter that accepts PoE+ input and delivers regulated 24V DC output at up to 24W — a practical bridge for integrating 24V access control, alarm sensors, and older security equipment into IP-based network infrastructure without requiring separate power drops or dedicated outlets.
Key Features
- PoE+ Input Compatibility: Accepts up to 24W of PoE+ power delivery (IEEE 802.3at), meaning you can source the adapter from any standard PoE+ managed switch or injector without additional power budgeting complexity.
- Regulated 24V DC Output: Delivers clean, stabilized 24V DC — critical for access control logic boards, magnetic locks, and sensor circuits that expect tightly controlled voltage to operate reliably.
- 24W Power Rating: Sufficient for moderate-draw 24V loads such as single electric strikes, small control relay modules, or alarm panel field devices; dimensioning matters here — if you're powering multiple high-current devices, you may need to distribute load across additional adapters or step up to a larger power supply.
- Compact Form Factor: Small enough to mount in equipment racks, on DIN rails, or integrate into control cabinets without consuming significant space — useful in retrofit scenarios where cabinet real estate is already tight.
- Lifetime Limited Warranty: Altronix stands behind the unit for the life of ownership, reducing long-term replacement risk on a passive infrastructure component.
Integration & Compatibility
The NETWAY3024P works with any standard PoE+ Ethernet source — managed switches, PoE+ injectors, and uninterruptible power supplies (UPS) with PoE+ output. It accepts input on a standard RJ-45 connector and delivers output as bare wire terminals, so you'll terminate the 24V leads directly into your legacy device or control panel.
Typical deployments include converting centralized PoE+ network closet power into distributed 24V for badge readers, door controller modules, relay boards, and alarm sensors deployed throughout a facility. This eliminates the need to run separate 24V power lines or add dedicated power supplies at each remote location — the Ethernet run that feeds the IP devices also powers the legacy gear.
The adapter integrates well into PoE infrastructure planning and mixed-technology security deployments. Before commissioning, verify that your PoE+ source has adequate power budget remaining (each NETWAY3024P draws 24W), and confirm that 24V is the correct operating voltage for your end devices — some legacy equipment may require 12V or 48V, which would need a different adapter model.
Deployment Considerations
The NETWAY3024P is a passive converter — it does not provide surge protection, filtering, or backup power. If your access control or alarm devices require surge suppression, you should add external protection between the adapter output and the load. Similarly, if you need the adapter to remain powered during a mains outage, the PoE+ source itself must be backed by a UPS.
Load calculation is essential: add up the quiescent current draw of all 24V devices you plan to power through the adapter. If the total approaches or exceeds 1A at 24V (roughly 24W), you're at the ceiling; additional load requires either a second adapter or a larger regulated 24V power supply. This is especially important in access control environments where multiple solenoid locks or high-current relays may energize simultaneously.
Frequently Asked Questions
Q: Does the NETWAY3024P include a power cord or wall outlet connection?
A: No. The adapter sources power entirely from PoE+ Ethernet input (RJ-45) and delivers output as bare wire terminals. You connect it between a PoE+ switch or injector and your 24V device or control panel.
Q: Can I use the NETWAY3024P with standard PoE (802.3af) instead of PoE+?
A: Standard PoE (802.3af) delivers a maximum of 15.4W, while this adapter is rated for PoE+ input (up to 24W). Using it with 802.3af may limit available output power and is not recommended. Confirm your network source is PoE+ before deploying.
Q: What is the maximum continuous current output at 24V?
A: At 24W maximum power, the adapter can deliver approximately 1A continuous at 24V. Do not exceed this rating; if your load requires more than 1A, select a larger 24V power supply.
Q: Is the NETWAY3024P suitable for outdoor or harsh-environment mounting?
A: The adapter is designed for indoor rack or cabinet installation. It is not rated for direct outdoor exposure, high moisture, or temperature extremes. Install it in a protected enclosure or equipment room.
Q: Does the adapter provide any protection against voltage spikes or power surges on the output?
A: The NETWAY3024P outputs regulated 24V DC but does not include surge protection. If your application requires protection against transient overvoltages (common in solenoid or relay circuits), add a surge suppressor or transient-protection module between the adapter output and the load.
Q: What is the warranty coverage?
A: The unit carries a Lifetime Limited Warranty. Refer to Altronix's warranty terms for coverage details and claim procedures.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The NETWAY3024P solves a real problem in mixed-technology sites: you've invested in modern PoE+ switching infrastructure, but your access control logic, door readers, and alarm relays still run on 24V — and you don't want to maintain two separate power trees. This adapter collapses that into a single network-delivered power source.
Technical Highlights:
- 24W PoE+ to 24V Conversion: Takes up to 24W from any 802.3at source and outputs regulated 24V DC. No separate outlet or UPS tap required — it rides the same Ethernet that feeds your IP cameras and controllers.
- Regulated Output for Sensitive Logic: Access control boards, electromagnetic strikes, and relay circuits demand stable voltage. The NETWAY3024P delivers clean 24V, not drooping or ripple-prone — keeps solenoids and logic circuits happy in environments where voltage sag causes nuisance lock failures or panel resets.
- 1A Continuous Capacity (~24W ceiling): That's enough for a single electric strike, a card reader + relay module, or a modest alarm sensor cluster. Once you exceed 1A, you're starved — either add a second adapter or step up to a standalone 24V supply rated for 2A or more.
Deployment Considerations:
- Load math is mandatory: sum the standby and peak current of every 24V device you'll attach. Door strikes on high-traffic sites can draw 0.5–0.8A alone; add a reader and relay module and you're bumping the 1A edge. Plan conservatively.
- No surge suppression built in — if you're controlling solenoid locks or inductive loads, transients when the solenoid de-energizes can damage logic circuits. Bolt a diode or surge module on the output side to be safe.
- The adapter itself adds latency risk only if your PoE+ source loses power (mains outage). If uninterruptible lock operation is mandatory, ensure the PoE+ source or your entire Ethernet infrastructure sits behind a UPS.
Ideal fit: retrofit sites consolidating 24V gear into a PoE+ backbone, or new warehouse automation deployments where access control and sensor power can ride the network infrastructure. Not suitable for high-current solenoid banks (door frames with 10+ locks) or outdoor sensor arrays — those need dedicated 24V supplies rated for 5–10A.
