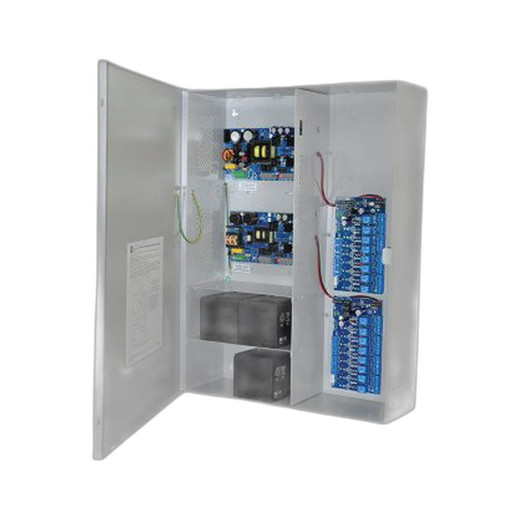

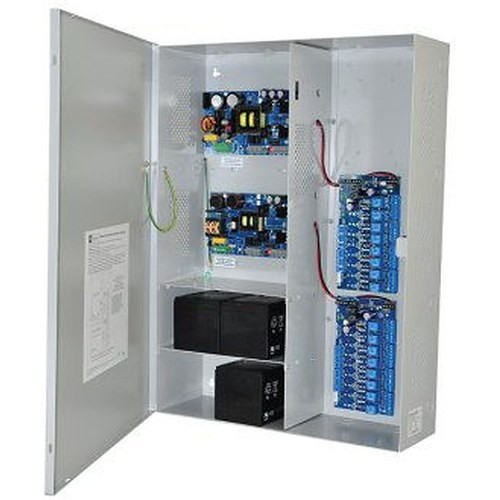

Altronix MAXIMAL75FD Pwr Sply/Charger,16 PTC Class 2 Rly Out

Altronix MAXIMAL75FD Power Supply/Charger with 16 PTC Relay Outputs

The Altronix MAXIMAL75FD is a 115VAC-input power supply and battery charger designed for security and access control installations requiring multiple independently protected output circuits. The MAXIMAL75FD features 16 individually fused PTC relay outputs with integrated battery backup charging capability, delivering regulated DC power at either 24VDC @ 9.7A or 12VDC @ 9.5A depending on application requirements. This Class 2 device addresses the need for distributed, protected power distribution in systems where individual circuit isolation and overcurrent protection are critical design parameters.

Key Features

• 16 PTC relay-protected output circuits for independent circuit isolation
• Selectable output voltage: 1–24VDC @ 9.7A or 1–12VDC @ 9.5A
• Integrated battery charger for uninterrupted power backup
• 115VAC input for standard North American facility power
• Class 2 rated construction for low-voltage safety compliance
• Lifetime Limited Warranty backing the product
• FAI and LinQ2 Ready certifications for system integration
• BC800 enclosure footprint for standard mounting configurations

Applications

• Multi-zone access control systems requiring distributed power with per-circuit protection
• Alarm monitoring stations and security control centers with redundant power circuits
• Emergency lighting and egress control systems with battery backup capability
• IP camera and network device power distribution with circuit isolation
• Building security integration projects requiring Class 2 compliant power architecture

Specifications

• Input Voltage: 115VAC
• Output Voltage: 1–24VDC @ 9.7A or 1–12VDC @ 9.5A
• Maximum Current: 9.7A (24VDC mode), 9.5A (12VDC mode)
• Output Circuits: 16 PTC relay-protected Class 2 outputs
• Battery Backup: Integrated charger
• Enclosure: BC800
• Approvals: FAI, LinQ2 Ready
• Warranty: Lifetime Limited Warranty
