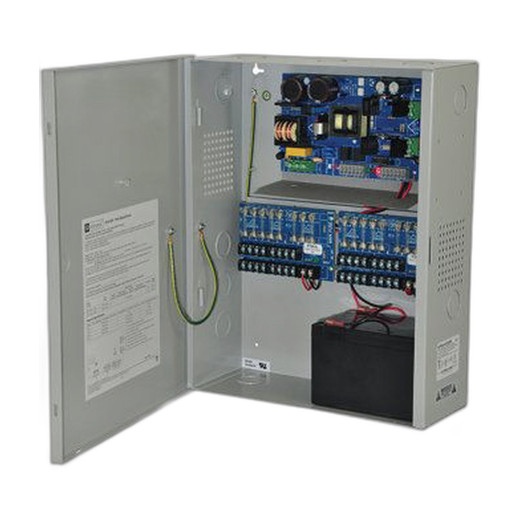

Altronix EFLOW102NX16 16-Output Power Supply/Charger
Overview
The Altronix EFLOW102NX16 is a 16-fused output power supply and charger designed for multi-output security system installations requiring centralized 12VDC distribution with integrated battery backup. Operating from 120VAC 60Hz input, the EFLOW102NX16 delivers regulated 12VDC power across 16 independent supervised outputs, each protected by individual fuses. This unit is UL listed and equipped with auxiliary output connectivity, fire alarm disconnect functionality, and LinQ2-ready architecture for integration into broader security management systems.
Key Features
- 16 Fused Outputs: Independent fused channels provide circuit-level protection and isolation, allowing selective load management and reducing downtime from single-point failures.
- 12VDC @ 10A Rating: Rated output capacity supports multiple low-to-medium current security devices including access control, intercoms, and surveillance equipment.
- 6A Maximum Input Current: 120VAC 60Hz input draws controlled current, reducing site electrical load and minimizing infrastructure upgrades.
- Battery Backup Capable: Integrated charger supports rechargeable battery connection for uninterrupted power during AC loss events, maintaining critical security operations during outages.
- AC Fail Supervision: Monitors input AC voltage and alerts system on power loss, enabling immediate response and logging of outage events.
- Low Battery Supervision: Continuous battery voltage monitoring prevents system operation at insufficient charge levels, protecting connected devices and battery lifespan.
- Battery Presence Detection: Automatic detection confirms battery installation and connectivity, preventing operational errors from missing or disconnected backup power.
- Fire Alarm Disconnect (FAI): Fire alarm integration allows automated power shutdown to connected circuits during alarm conditions, meeting code requirements for alarm system interfacing.
- LinQ2-Ready Architecture: Firmware and connector compatibility with Altronix LinQ2 management platform enables remote monitoring, diagnostics, and centralized reporting across multiple sites.
- BC400 Enclosure: Compact mounted enclosure houses the power module, reducing installation footprint while protecting internal components.
- UL Listed: Meets UL safety standards for power supply devices in security applications.
- Auxiliary Output: Additional non-fused output connector supports auxiliary load distribution or system integration requirements.
Integration & Compatibility
The EFLOW102NX16 is designed for integration into distributed security installations where multiple devices require simultaneous, supervised 12VDC power. The 16-output architecture supports mixed loads—access readers, electronic locks, control panels, audio/video codecs—with each output independently fused for selective circuit isolation. Fire alarm disconnect functionality allows code-compliant integration with life safety systems. LinQ2 readiness positions the EFLOW102NX16 for enterprise monitoring, enabling real-time status visibility and predictive maintenance scheduling across networked sites.
Battery Backup & Supervision
Battery backup transforms the EFLOW102NX16 into a resilient power platform. The integrated charger maintains battery state during normal operation while automatically transitioning to backup power on AC loss. Dual-layer supervision—AC fail detection and low battery warnings—ensures operators maintain situational awareness and prevents brownout conditions. Battery presence detection eliminates commissioning errors, confirming backup readiness before handoff to end-users.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Altronix EFLOW102NX16 during deployment planning for multi-site security rollouts. This unit addresses the practical requirement for distributed, supervised 12VDC power in environments where centralized distribution and individual circuit protection are non-negotiable. The 16-fused output architecture is particularly valuable in retrofit scenarios where device counts exceed single-supply capacity, yet site electrical infrastructure cannot support multiple units without load balancing complications.
Technical Highlights:
- 16-Output Fused Distribution: Each output operates independently with individual fuse protection. This design prevents a single-device short from affecting system-wide power, a critical requirement in access control and intercom environments where downtime cascades across facilities.
- Battery Supervision Triad: AC fail, low battery, and battery presence detection provides three-layer confidence in backup readiness. In practice, this eliminates surprise power-down scenarios caused by discharged or disconnected batteries.
- Fire Alarm Integration (FAI): Direct fire alarm disconnect support ensures code compliance in jurisdictions requiring automated power shutdown to non-emergency circuits during alarm conditions, eliminating the need for external relay staging.
- LinQ2 Ecosystem Readiness: The EFLOW102NX16 integrates natively with Altronix management platforms, enabling remote diagnostics, output-level reporting, and battery health trending without additional gateway hardware.
Deployment Considerations:
- Load planning across 16 outputs requires upfront current budgeting. While the supply is rated 12VDC @ 10A (120W aggregate), individual output current limits should be confirmed during design to prevent nuisance fuse trips under transient peak loads common in lock strikes and solenoid operation.
- Battery backup capacity depends entirely on external battery selection and charge state. Specify battery amp-hour rating based on expected hold-time requirements for critical devices, then verify charger current aligns with recharge speed objectives.
- In multi-supply installations, coordinate AC fail alarm handling to avoid redundant alerts across networked systems. LinQ2 platform can aggregate these events for cleaner operator visibility.
The EFLOW102NX16 is a solid choice for integrators managing mixed-device environments where power distribution, fusing, and supervision cannot be compromised. Its open architecture accommodates battery expansion and its fire alarm disconnect function eliminates integration shortcuts. Recommended for facilities requiring enterprise-grade power resilience with code-compliant alarm interfacing.
