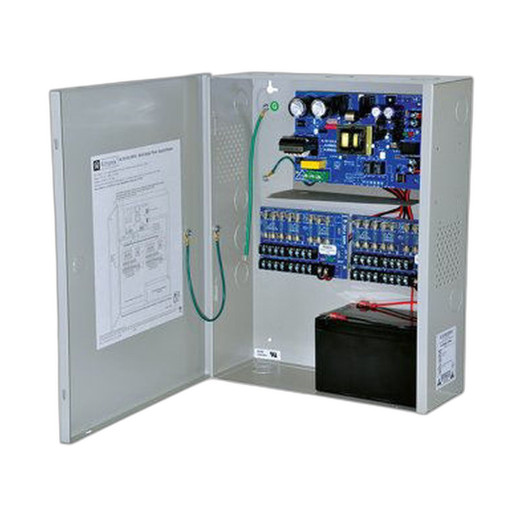

Altronix AL1012XPD16220 12VDC 10A 16-Output Power Supply

Altronix AL1012XPD16220 12VDC Power Supply/Charger

Overview

The AL1012XPD16220 is a wall-mount multi-output power supply and battery charger designed for security systems requiring distributed 12VDC power. It converts 220VAC input (198–256VAC, 50/60Hz) to regulated 12VDC at 10A continuous, delivering sixteen independently fused outputs rated at 3.5A each. Built-in sealed lead acid/gel battery charger with 0.7A maximum charge current provides automatic switchover to battery backup with zero voltage drop on AC failure.

Key Features

• 16 fused 12VDC outputs with individual 3.5A protection
• 10A continuous supply current
• Integrated battery charger for sealed lead acid or gel batteries
• AC fail, low battery, and battery presence supervision with form C contacts
• AC fail notification trigger selectable for 30 seconds or 6 hours
• Short circuit and thermal overload protection
• AC input and DC output LED indicators

Compatibility

Suitable for access control, CCTV, alarm, and intercom system installations requiring multi-point 12VDC distribution with battery backup capability. Wall-mount BC400 enclosure for indoor use.
