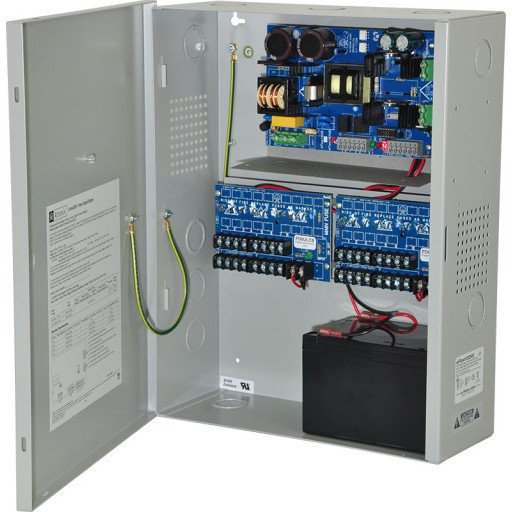

Altronix EFLOW102NX16D Power Supply Charger
Overview
The Altronix EFLOW102NX16D is a 12VDC @ 10A power supply and charger designed for distributed power delivery in security integration installations. Built for the BC400 enclosure form factor, this unit delivers 16 individually protected Class 2 outputs via PTC (Positive Temperature Coefficient) technology, supported by an auxiliary output for supplemental loads. The EFLOW102NX16D integrates FAI supervision capability and is LinQ2 ready, enabling modern alarm monitoring and system integration without requiring external modules.
Key Features
- 16 PTC-Protected Class 2 Outputs: Each output is independently protected against overcurrent and short-circuit conditions, ensuring reliable load distribution across multiple devices without cascading failures.
- 12VDC @ 10A Output Voltage and Current: Delivers regulated 12-volt direct current at 10-amp maximum capacity, suitable for powering door locks, card readers, sensors, and auxiliary security devices.
- 115VAC Input: Standard North American utility voltage input simplifies installation and replacement in existing infrastructure.
- Auxiliary Output: Dedicated auxiliary power connection for secondary loads or system-level supervision equipment.
- FAI Supervision Ready: Built-in support for Fire Alarm Interface supervision, enabling monitored integration with fire and life safety systems.
- LinQ2 Ready: Altronix LinQ2 compatibility allows seamless communication and integration with Altronix monitoring platforms and networked access control systems without requiring separate adapter modules.
- BC400 Enclosure Form Factor: Compact, standard-footprint design fits within BC400 backboxes and cabinet installations for space-constrained deployments.
- Battery Backup Compatibility: Designed to work with external battery backup systems for continued operation during power loss events.
Integration and Compatibility
The EFLOW102NX16D is engineered for seamless deployment in multi-access control and distributed power architectures. LinQ2 readiness eliminates the need for separate communication modules, reducing bill-of-materials complexity and installation labor. FAI supervision support allows direct integration with monitored fire alarm systems, meeting code requirements for emergency egress control and system integrity monitoring. The 16 independent PTC outputs accommodate mixed-load scenarios where individual devices require isolated protection, eliminating the need for external circuit protection modules.
Typical Applications
Integrators deploy the EFLOW102NX16D in multi-door access control systems, distributed reader power delivery, auxiliary device power for sensors and relays, and supervised alarm monitoring applications. The combination of 16 protected outputs and auxiliary connectivity makes this unit well-suited for mid-scale installations requiring flexible, protected power distribution without oversizing to larger industrial supplies.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During recent deployment planning for a 12-door access control retrofit, I evaluated the Altronix EFLOW102NX16D for power distribution across distributed readers and lock controllers. The unit's 16 PTC-protected outputs and LinQ2 readiness eliminated the need for external supervision and communication adapters, reducing both cost and complexity in the cabinet.
Technical Highlights:
- 16 Independent PTC Outputs: Each output is thermally protected, preventing one failed load from affecting the entire system. This is critical in access control where reader or lock failure must remain isolated.
- LinQ2 Ready Architecture: Native compatibility with Altronix monitoring platforms means supervision and status reporting integrate directly without intermediate protocol conversion modules.
- FAI Supervision Support: Fire alarm integration capability meets jurisdictional requirements for emergency unlock monitoring and system integrity in life safety applications.
Deployment Considerations:
- Verify that total load across all 16 outputs does not exceed the 10A aggregate current rating; plan reader and lock power draw carefully in advance to avoid oversubscription.
- Position the EFLOW102NX16D within the BC400 enclosure with adequate ventilation clearance to ensure thermal protection mechanisms function correctly under sustained load conditions.
- Confirm LinQ2 network readiness in your monitoring platform before final installation; legacy systems may require firmware updates to fully leverage this integration.
For multi-door access control and distributed reader power, the EFLOW102NX16D delivers the output count and integrated supervision required by modern security architectures. If you require external battery backup, plan the charger circuit accordingly—this unit is designed to work with external battery systems for continued operation during AC power loss.
