Altronix EFLOW102N8DV Pwr Supply/Charger 12VDC@10A,8PTC,FAI220

Altronix EFLOW102N8DV Power Supply/Charger 12VDC@10A with 8 PTC Outputs

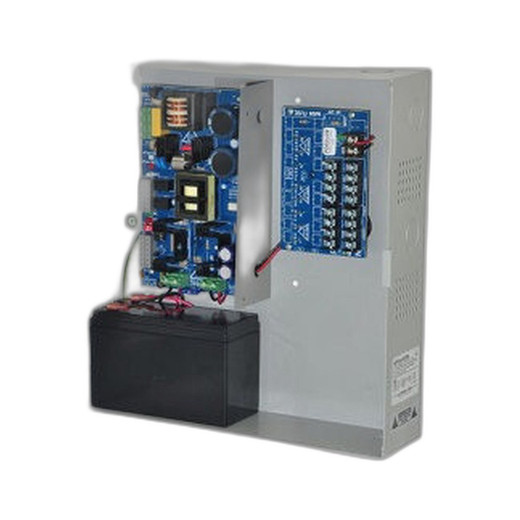

The Altronix EFLOW102N8DV is a 12VDC regulated power supply and charger rated for 10A total current capacity with eight individually protected outputs. Designed for fire alarm and access control applications, the EFLOW102N8DV integrates battery backup charging, fire alarm interface signaling, and supervised distribution in a single UL Listed enclosure.

Key Features

• Eight supervised, individually protected PTC (Positive Temperature Coefficient) outlets preventing nuisance tripping and load isolation during faults
• Integrated battery backup charging for seamless UPS operation during AC power loss
• Fire alarm disconnect (FAI) interface for automatic power-down during active alarm conditions
• Regulated 12VDC output maintaining stable voltage across all eight terminals
• Multi-layer system supervision: AC fail detection, low battery warning, and battery presence confirmation
• Compact form factor supporting distributed auxiliary power in cramped installation environments
• UL Listed for fire alarm and security system compliance
• Lifetime Limited Warranty

Applications

• Fire alarm control panel auxiliary power and battery backup charging in commercial installations
• Access control system power distribution with per-circuit protection and battery UPS capability
• Multiple device charging and supervision in monitored security infrastructure
• Distributed 12VDC power with supervised output control in compliance-critical environments

Specifications

• Input Voltage: 120VAC 60Hz
• Output Voltage: 12VDC regulated
• Maximum Current: 10A total
• Number of Outputs: 8 protected PTC terminals
• Battery Backup: Yes
• Fire Alarm Interface: Yes (FAI220)
• Supervision: AC fail, low battery, battery presence detection
• UL Listed
• Warranty: Lifetime Limited
