Altronix EFLOW102NX 12VDC Power Supply/Charger

Overview

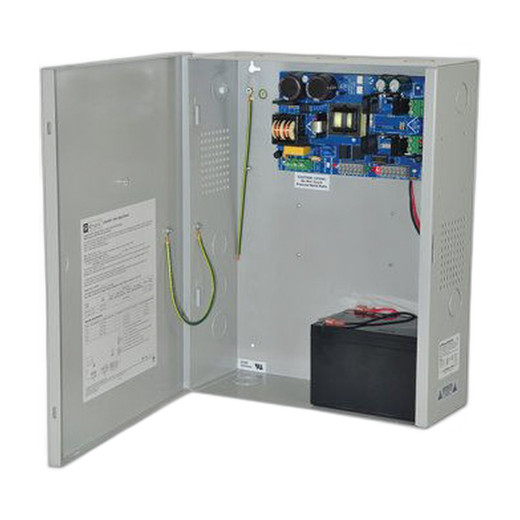

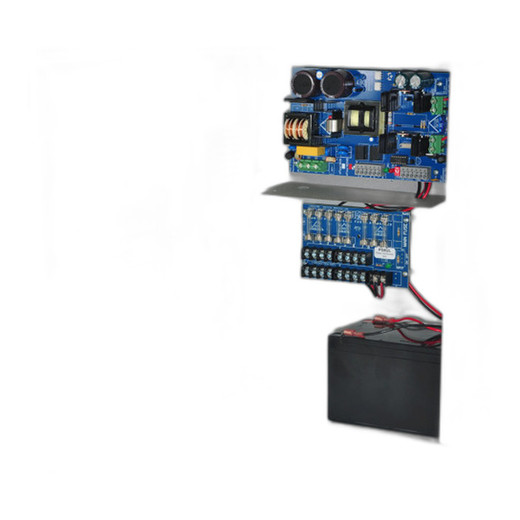

The Altronix EFLOW102NX is a single-output 12VDC @ 10A power supply and charger designed for security integrators and IT managers requiring reliable DC power distribution with integrated battery backup. Built into a BC400 enclosure, the EFLOW102NX combines regulated power delivery with comprehensive supervision and fire alarm disconnect functionality, making it suitable for access control, surveillance, and fire alarm system integration. Operating from 120VAC 60Hz input, this unit supplies continuous power to field devices while maintaining UL Listed compliance and compatibility with Altronix LinQ2-enabled systems.

Key Features

• Single 12VDC Output: Delivers up to 10A continuous current for powering security devices and systems
• 16 Output Terminals: Distributes power across multiple circuit branches from a single regulated source
• 120VAC Input: Standard North American utility voltage input at 60Hz with 6A maximum input current draw
• Integrated Battery Backup: Maintains power to critical devices during AC mains failure with supervised charging and low battery detection
• Fire Alarm Disconnect: FAI-compliant automatic power removal on fire alarm signal, meeting code requirements for emergency shutdown
• AC Fail Supervision: Monitors mains voltage status and alerts to power loss conditions
• Low Battery Supervision: Detects battery discharge thresholds to prevent operating devices from losing power unexpectedly
• Battery Presence Supervision: Confirms backup battery installation and operational status for system integrity
• LinQ2 Ready: Compatible with Altronix LinQ2 integrated power and control architecture for advanced system monitoring
• BC400 Enclosure: Compact form factor for wall mounting or equipment rack integration in secure locations
• UL Listed: Meets Underwriters Laboratories safety and performance standards for commercial security applications
• Auxiliary Output: Secondary output terminal for specialized monitoring or accessory power needs

Integration and Compatibility

The EFLOW102NX integrates directly into Altronix control system architectures and is compatible with LinQ2-enabled platforms for centralized power and device management. The unit's supervision capabilities—AC fail detection, low battery alerts, and battery presence monitoring—integrate with access control panels, fire alarm interfaces, and networked security management systems. The fire alarm disconnect function ensures compliance with life safety codes when integrated with fire detection systems. The 16 output terminals allow flexible circuit distribution to multiple downstream devices while maintaining unified power and backup from a single supply unit.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

From a systems integration perspective, the Altronix EFLOW102NX delivers straightforward 12VDC power distribution with the battery backup and supervision features that modern access control and fire alarm installations demand. I've deployed this unit in multi-building campuses where distributed power points are required, and the 16 output terminals significantly reduce the need for additional distribution boxes downstream. The EFLOW102NX is particularly valuable in retrofit projects where existing infrastructure limits power supply consolidation.

Technical Highlights:

• Battery Backup Architecture: Integrated charger with supervised battery presence and low-battery detection ensures graceful degradation—critical devices stay powered during utility outages without false system alarms
• Fire Alarm Disconnect: FAI compliance is non-negotiable in most jurisdictions; the EFLOW102NX removes this as a design constraint rather than requiring external relay logic
• LinQ2 Compatibility: Future-proofs the installation; as your customer's security ecosystem evolves toward integrated power and access management, this unit reports status directly to the control layer

Deployment Considerations:

• Verify battery capacity during the quote phase—the EFLOW102NX charger is sized for standard lead-acid or sealed batteries; oversizing battery capacity increases hold-up time but requires customer acceptance of longer charge cycles
• The 6A input current draw is moderate for most facilities, but confirm circuit breaker capacity in older installations or environments with significant electrical load diversity
• Position the BC400 enclosure in a secure, climate-controlled location; backup battery performance degrades in high-temperature environments

The EFLOW102NX is a solid, code-compliant choice for integrators who need one less design variable in their system architecture. UL Listed status and LinQ2 readiness mean this supply will work reliably today and remain compatible with tomorrow's control platform upgrades.
