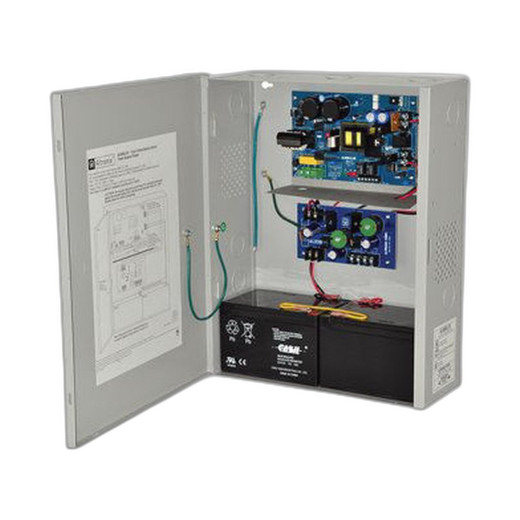

Altronix AL600UL3X Triple Output Power Supply Charger

Altronix AL600UL3X Triple Output Power Supply Charger

The Altronix AL600UL3X is a regulated three-output power supply and battery charger designed for security and access control systems requiring simultaneous multi-voltage DC power distribution. The AL600UL3X provides 5VDC, 12VDC, and 24VDC outputs from a single 115VAC input, with integrated battery backup capability and comprehensive supervision contacts for system monitoring.

Key Features

• Three independent PTC-protected DC outputs: 5VDC @ 1.75A, 12VDC @ 1.75A, and 24VDC @ 3A
• Accommodates up to two 12VDC/12AH sealed lead acid or gel-type batteries for uninterrupted power during AC loss
• Instantaneous failover to battery backup upon AC input interruption
• Comprehensive supervision with Form C relay contacts for AC Failure, Low Battery, and Battery Presence monitoring
• LED indicators for AC input and DC output status visualization
• Multiple regulatory approvals: UL294, UL1481, cUL CSA C22.2 No. 205-M1983, CSFM, and NYC Department of Buildings
• Operating temperature range 0°C to 49°C (32°F to 120°F)
• Lifetime Limited Warranty

Applications

• Multi-voltage power distribution for integrated security control panels combining 5V, 12V, and 24V components
• Access control systems requiring redundant battery-backed power across multiple voltage rails
• Fire alarm and intrusion detection installations with diverse equipment voltage requirements
• Surveillance system power hubs serving cameras, switches, and control modules simultaneously
• Building automation and HVAC security integration with mixed-voltage device loads

Specifications

• Input: 115VAC, 60Hz, 3.5A maximum
• Output Voltage/Current: 5VDC @ 1.75A, 12VDC @ 1.75A, 24VDC @ 3A
• Maximum Output Current: 3A (24VDC rail)
• Number of Outputs: 3 with individual PTC protection
• Battery Backup: Supports up to two 12VDC/12AH sealed lead acid or gel-type batteries
• Enclosure Dimensions: 15.5" W x 12" H x 4.5" D (393.7mm x 304.8mm x 114.3mm)
• Supervision: AC Failure, Low Battery, Battery Presence (Form C contacts)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Regulatory Approvals: UL294, UL1481, cUL CSA C22.2 No. 205-M1983, CSFM, NYC Department of Buildings Approved
