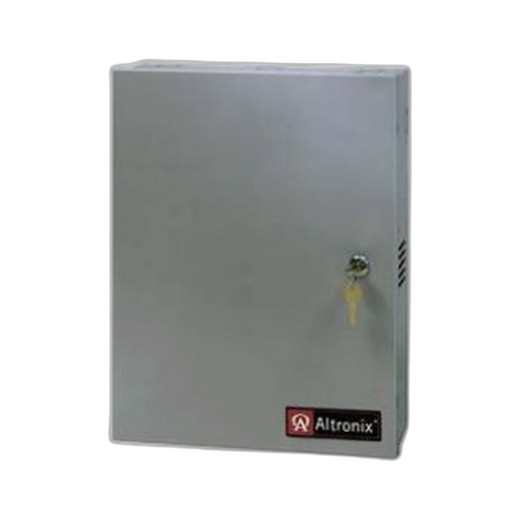

Altronix AL400UL3X Triple Output Power Supply/Charger

Altronix AL400UL3X Triple Output Power Supply/Charger

The Altronix AL400UL3X is a multi-output enclosure-based power supply and battery charger designed for security infrastructure requiring simultaneous operation at three independent voltage levels. The AL400UL3X delivers regulated 5VDC, 12VDC, and 24VDC outputs from a single 115VAC input, making it suitable for mixed-voltage security systems. This unit accommodates up to two 12VDC/12AH sealed lead-acid or gel-type batteries for backup power and features comprehensive supervision contacts for system monitoring.

Key Features

• Three independent regulated DC outputs: 5VDC @ 1.75A, 12VDC @ 1.75A, and 24VDC @ 1.5A
• Integrated battery charger accommodates up to two 12VDC/12AH sealed lead-acid or gel-type batteries (sold separately)
• Form C supervision contacts for AC Failure, Low Battery, and Battery Presence monitoring
• Operates on standard 115VAC, 60Hz input at 1.45A maximum draw
• UL294, UL603, UL1069, UL1481 listed with cUL CSA certification and CSFM approval
• Compact 15.5" H × 12" W × 4.5" D enclosure footprint
• Operating temperature range 0°C to 49°C (32°F to 120°F)
• Lifetime Limited Warranty

Applications

• Access control systems requiring 12VDC and 24VDC with low-voltage 5VDC auxiliary circuits
• Networked security installations combining legacy 12V equipment with modern 24V devices
• Backup power distribution for door locks, card readers, and intrusion detectors
• Alarm system hubs requiring multi-voltage output with battery backup capability
• Commercial building security infrastructure with centralized power distribution

Specifications

• Input: 115VAC, 60Hz, 1.45A maximum
• Output 1: 5VDC @ 1.75A
• Output 2: 12VDC @ 1.75A
• Output 3: 24VDC @ 1.5A
• Battery Backup: Accommodates up to two 12VDC/12AH sealed lead-acid or gel-type batteries
• Supervision: AC Failure Form C contacts, Low Battery Form C contacts, Battery Presence Form C contacts
• Enclosure Dimensions: 15.5" H × 12" W × 4.5" D (393.7mm × 304.8mm × 114.3mm)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Approvals: UL294, UL603, UL1069, UL1481, cUL CSA Standard C22.2 No.205-M1983, CSFM, MEA NYC Department of Buildings Approved
• Warranty: Lifetime Limited Warranty
