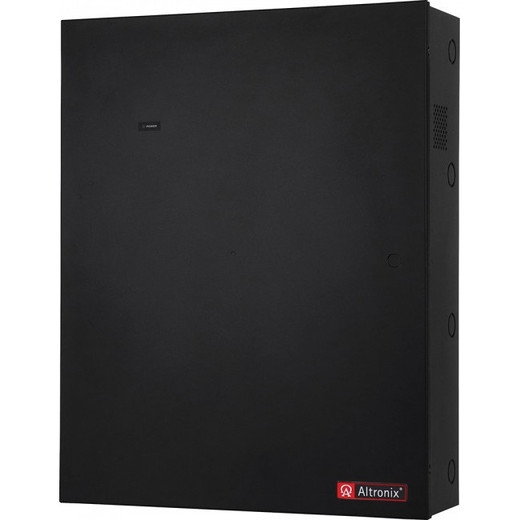

Altronix ALT/MER/8DR/PW/PTC/Q2/115 - T2M7XK3DQ2

Altronix T2M7XK3DQ2 Surveillance Power Distribution Module

Overview

The Altronix T2M7XK3DQ2 is a compact power distribution module designed to provide regulated 12VDC or 24VAC output for multiple surveillance devices. It simplifies installation by consolidating power delivery for cameras, encoders, or other low-voltage equipment, reducing wiring complexity and potential points of failure. This unit is ideal for installations where a centralized, reliable power source is required for a small cluster of devices, such as a single entry point or a small camera array.

Compatibility

This module is designed to accept a primary input voltage of 115VAC (230VAC optional). It is compatible with a wide range of low-voltage surveillance devices that require either 12VDC or 24VAC, provided the total current draw does not exceed the module's output capacity. It is commonly paired with Altronix power supplies or other compatible 115VAC input power sources. Specific compatibility with individual camera models depends on their power requirements; always verify the total amperage draw against the T2M7XK3DQ2's specifications.

Installation Notes

The T2M7XK3DQ2 requires a 115VAC input connection. It features eight (8) fused outputs, each providing either 12VDC or 24VAC. The output voltage is selected via jumper. Each output is individually fused, offering protection against overcurrent and short circuits for connected devices. The module is designed for panel or DIN rail mounting, facilitating integration into existing enclosures or custom power distribution cabinets. Ensure proper ventilation and adherence to local electrical codes during installation.

What's in the Box

• 1x Altronix T2M7XK3DQ2 Power Distribution Module
• 8x Fuses (pre-installed or included, specific type/rating depends on exact configuration)
• 1x Mounting hardware kit
