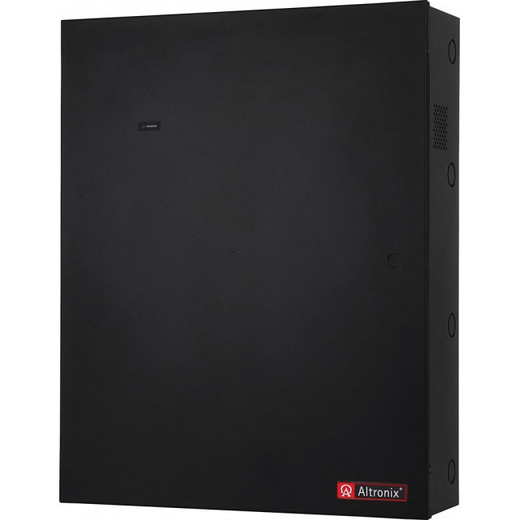

Altronix ALT/MER/8DR/PW/PTC/Q2/115 - T2M7XK1DQ2

Altronix T2M7XK1DQ2 Concise Descriptor

Overview

The Altronix T2M7XK1DQ2 is an 8-output power distribution module designed to simplify the deployment of multiple surveillance devices. It takes a single 12VDC or 24VAC input and splits it across eight fused outputs, providing individual protection for each connected device. This unit is ideal for consolidating power in rack-mounted surveillance systems, reducing wiring complexity and improving system reliability. The T2M7XK1DQ2 is built for commercial installations where clean power distribution is critical.

Compatibility

This module is designed to work with a wide range of surveillance equipment requiring 12VDC or 24VAC power. It is compatible with most IP cameras, PTZ cameras, IR illuminators, and other low-voltage surveillance accessories that draw up to 2A per output, with a total system draw not exceeding 10A. It is suitable for use with power supplies providing 12VDC or 24VAC, up to 10A total capacity.

Installation Notes

The T2M7XK1DQ2 features a compact form factor suitable for rack mounting or wall mounting. Each output is individually fused with PTC (resettable) fuses, rated at 2A each. The module requires a single 12VDC or 24VAC input, with a maximum combined output current of 10A. Ensure the input power supply capacity exceeds the total current draw of all connected devices. Wiring should adhere to local electrical codes and best practices for low-voltage systems.

What's in the Box

• 1x Altronix T2M7XK1DQ2 Power Distribution Module
• 1x Mounting Hardware Kit
• 1x Wiring Diagram
