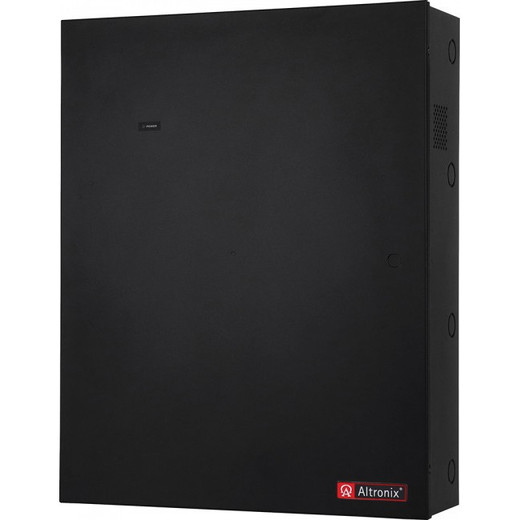

Altronix T2M7XK1Q2 Power Distribution Module

Overview

The Altronix T2M7XK1Q2 is a compact power distribution module designed to efficiently manage and distribute power to multiple surveillance devices, specifically up to eight 12VDC cameras. This unit simplifies wiring by consolidating power connections, reducing clutter and potential points of failure in a surveillance system. It's ideal for installations where clean, organized power delivery is critical, such as in network closets or within equipment racks.

Compatibility

This module is designed to work with standard 115VAC input power and provides eight fused 12VDC outputs. It is compatible with a wide range of 12VDC powered surveillance cameras and other low-voltage security devices. The fused outputs ensure that each connected device receives protected power, preventing a single device failure from impacting others. It is intended for use with Altronix power supplies or other UL Listed Class 2 power sources.

Installation Notes

The T2M7XK1Q2 features a DIN rail mount, allowing for quick and secure installation into standard industrial enclosures or DIN rail mounting panels. Each of the eight outputs is individually fused, providing overcurrent protection. The module requires a 115VAC input to power its internal distribution circuitry, which then outputs 12VDC to connected devices. Ensure the total current draw of all connected devices does not exceed the capacity of the primary power source and that the individual fuse ratings are appropriate for each device.

What's in the Box

• 1x Altronix T2M7XK1Q2 Power Distribution Module
• 8x Fuses (pre-installed or included for user selection)
