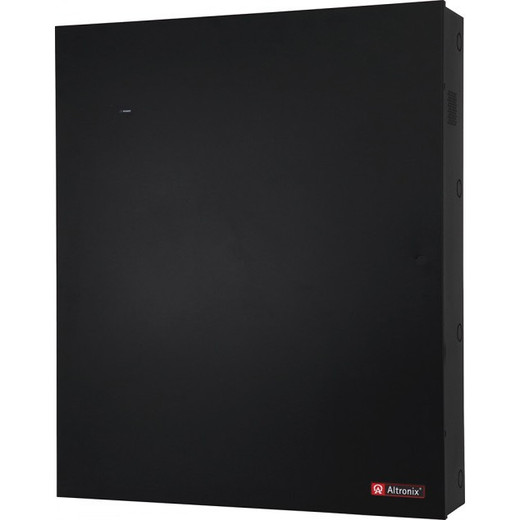

Altronix T3M77XK3DQ2 Power Distribution Module

Overview

The Altronix T3M77XK3DQ2 is a compact power distribution module designed to efficiently route power to multiple surveillance devices from a single source. This unit is engineered for 12VDC or 24VAC systems, simplifying wiring and reducing installation complexity in environments with numerous cameras, sensors, or access control readers. The T3M77XK3DQ2 model specifically addresses the need for organized power delivery in rack-mounted or cabinet installations, ensuring reliable operation for connected equipment.

Compatibility

This module is compatible with standard 12VDC or 24VAC power supplies commonly used in commercial surveillance and access control systems. It is designed to distribute power to multiple low-voltage devices, such as IP cameras, IR illuminators, door strike controllers, or card readers. Specific compatibility extends to systems utilizing centralized power distribution where a single power source needs to be segmented for individual device feeds.

Installation Notes

Installation requires connecting a single 12VDC or 24VAC input to the designated terminals. The module provides multiple fused outputs, each capable of powering a separate device. Each output circuit is individually fused, offering protection against overcurrent and short circuits for connected equipment. Ensure the total current draw of all connected devices does not exceed the capacity of the input power supply and the module's overall rating. Use appropriate gauge wiring for input and output connections to maintain voltage integrity.

What's in the Box

• 1x Altronix T3M77XK3DQ2 Power Distribution Module
• 1x Installation Guide
