Aiphone AX-8MV-W Audio/Video Master Station
Overview

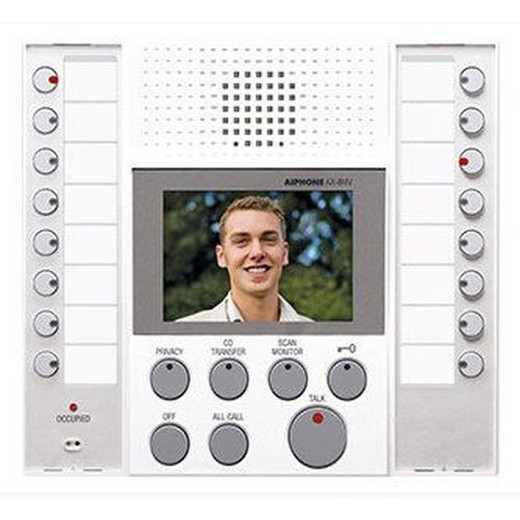

The Aiphone AX-8MV-W is a wall-mounted audio/video master station designed for multi-unit intercom systems. Configured for up to 8 master stations and 8 door or sub-station connections, the AX-8MV-W (often searched as AX 8MV W) provides a central communication hub with integrated video display and flexible call routing. This white surface-mount unit integrates directly with Aiphone's AX series ecosystem over standard Cat-5e cabling, supporting run distances up to 980 feet from the central exchange unit.
Key Features
- Multi-Station Control: Buttons for up to 8 master stations and 8 doors/sub-stations, enabling selective call routing and group management
- 3.5" LCD Video Display: Composite video output displays incoming video feed from connected door or sub-stations
- Hands-Free or Push-to-Talk: Dual communication modes—VOX (voice-activated) hands-free operation or simplex push-to-talk, selectable per installation requirement
- All Call and Group Call: Broadcast to all master stations or route calls to specific groups for flexible call distribution
- Scan Monitoring: Automated sequential monitoring of multiple zones or entry points when passive surveillance is required
- Wall or Desk Mount: Surface mount directly to wall or optional desk angle mount using MCW-S/A accessory
- Cat-5e Connectivity: Single Cat-5e cable to central AX series exchange unit; supports extended run distances up to 980 feet
- White Finish: Factory-finished white powder coat for standard interior environments
Integration & Compatibility
The AX-8MV-W integrates with the complete Aiphone AX series platform, including audio masters (AX-8M), video door stations (AX-DV, AX-DVF), sub-stations (AX-A, AX-AN, AX-B, AX-BN), and selector modules (AX-16SW) for expanded capacity beyond base 8-unit configuration. All components communicate over standard Cat-5e cabling and connect to a central AX series exchange unit. No IP network infrastructure is required; the system operates as a dedicated closed loop, ideal for multi-unit residential, small commercial, or secured access environments where independent intercom operation is preferred.
Physical & Operational Specifications
The master station features a 3.5-inch LCD screen for video output and composite video connectivity. Surface-mount wall installation is standard; optional desk angle positioning is available with the MCW-S/A accessory. Communication operates in simplex mode (half-duplex push-to-talk) or hands-free VOX operation, configurable at installation. Maximum wire run to the central exchange unit is 980 feet over Cat-5e cabling, supporting distributed installations in larger residential or multi-story buildings. The unit is designed for indoor use and standard temperature operating environments.
I've specified the Aiphone AX-8MV-W in multi-unit residential and small commercial intercom deployments where a dedicated (non-networked) closed-loop system is required. This master station delivers straightforward, reliable multi-unit call management with integrated video monitoring—critical in retrofit installations where network infrastructure isn't available or desired.
Technical Highlights:
- Scalable Call Routing: Support for up to 8 masters and 8 doors/sub-stations in a single hub; selector modules extend capacity further without network complexity
- Video Integration: 3.5" LCD display with composite video output provides visual identification before answering, reducing false entries in access control workflows
- Extended Reach: 980-foot Cat-5e run distance eliminates the need for intermediate signal conditioning in most multi-story or large-footprint buildings
- Flexible Communication Modes: Toggle between VOX (hands-free convenience) and push-to-talk (noise control in high-traffic areas) per site requirements
Deployment Considerations:
- Cat-5e cabling must be run from each door or sub-station to the central exchange unit; plan cable paths before installation. Plenum-rated cable is available separately for building code compliance in plenum spaces
- Composite video output limits display quality compared to modern IP systems; suitable for facial identification in good lighting but not for forensic-grade recording or analytics
- Simplex communication means only one direction can transmit at a time—important for user training in busy environments; hands-free VOX mode reduces confusion in high-call-volume settings
- This is a closed-loop system not connected to any network; integrate video recording separately if forensic retention is required
The AX-8MV-W is the right choice when you need proven intercom reliability without network dependencies, straightforward call management for 8+ door/station networks, and integrated video identification. It's particularly strong in retrofit scenarios, HOA buildings, and small commercial facilities where dedicated intercom infrastructure already exists or can be installed affordably.
