StarTech USB433ACD1X1 AC600 Dual-Band USB Wireless Network Adapter

Overview

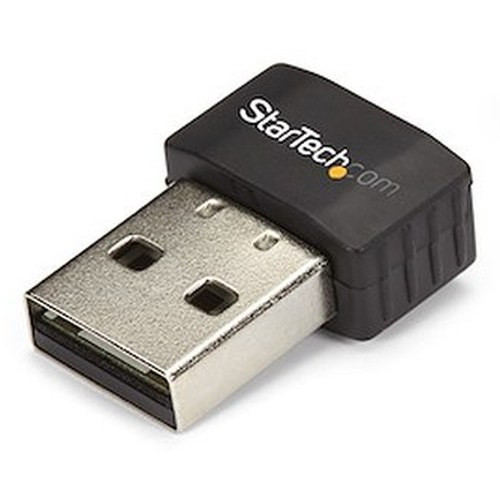

The StarTech USB433ACD1X1 is a nano-sized AC600 dual-band USB Wi-Fi adapter designed to add or restore wireless connectivity to laptops and desktop computers without consuming a full USB port or protruding enough to risk snapping off. At just 0.9 x 0.7 x 0.3 inches and 2 grams, it sits nearly flush with the USB port — practical for deployed workstations, point-of-sale terminals, or any fixed machine where a dangling adapter creates a snag hazard. If you need wireless on a machine that lacks it, or need to add a second interface for network segmentation, the USB433ACD1X1 covers both cases at minimal physical footprint.

Key Features

• 433 Mbps on 5 GHz: The 5 GHz band delivers up to 433 Mbps throughput — fast enough for real-time video streaming, VoIP, or pulling large files across the LAN. More importantly, 5 GHz is less congested than 2.4 GHz in dense office or warehouse environments where dozens of devices compete for airtime.
• 150 Mbps on 2.4 GHz: The 2.4 GHz band provides broader range and better wall penetration than 5 GHz at the cost of speed — useful for installations where the access point is several rooms away or through concrete. At 150 Mbps, it handles standard business traffic without issue.
• IEEE 802.11ac/n/g/a/b Support: Full backward compatibility means this adapter works with legacy 802.11n and 802.11g access points already deployed in your environment. You won't need to upgrade your AP infrastructure to use it — it negotiates the best mutually supported standard automatically.
• WPA2-PSK with AES Encryption: Supports WEP, WPA, WPA2-PSK with TKIP and AES — WPA2-AES is the current baseline for business wireless security. If your environment enforces WPA2-only policy, this adapter meets that requirement without configuration workarounds.
• DSSS, CCK, and OFDM Modulation: The adapter uses OFDM on both bands for 802.11a/g/n/ac connections, which provides better spectral efficiency and multipath resistance in environments with reflective surfaces (warehouses, server rooms). DSSS and CCK cover legacy 802.11b fallback.
• USB 2.0 Type-A Connector: Connects via standard USB 2.0 Type-A — present on virtually every desktop, laptop, thin client, and embedded PC still in service. USB 2.0 bandwidth (480 Mbps theoretical) is sufficient for the adapter's 433 Mbps wireless ceiling; you won't be bottlenecked at the bus.
• Nano Form Factor (0.9 x 0.7 x 0.3 in, 2g): At 2 grams and under an inch in any dimension, this adapter is effectively invisible once installed. For kiosk builds, POS terminals, or rack-mounted machines where physical cable management matters, a flush-mount nano adapter eliminates the failure point of a protruding dongle.
• Operating Temperature 0°C to 40°C: Rated for standard indoor commercial environments. Not appropriate for outdoor enclosures or unheated spaces — keep that in mind for edge deployments in loading docks or warehouses with extreme seasonal temperature swings.
• 2-Year Manufacturer Warranty: StarTech backs this adapter with a 2-year warranty, which is consistent with their standard accessory line and reasonable for a passive USB peripheral in a fixed-install role.

Integration and Compatibility

The USB433ACD1X1 connects to any host with a USB 2.0 or USB 3.0 Type-A port — USB 3.0 hosts are backward compatible with USB 2.0 devices, so there's no compatibility concern on modern hardware. The adapter operates on both 2.4 GHz (2.400–2.4835 GHz) and 5 GHz (5.150–5.825 GHz) frequency ranges, covering all standard Wi-Fi channels used in North America and Europe. Driver support and OS compatibility should be confirmed against StarTech's current driver release page for your specific operating system version before deployment at scale. For network connectivity solutions, this adapter pairs well with any dual-band 802.11ac access point already in your infrastructure. If you're evaluating wider StarTech networking and connectivity products, this adapter sits within their broader USB peripheral line. For environments running IP camera systems on wireless backhaul, note that wireless connectivity for camera streams introduces latency and reliability variables — wired PoE is preferred for surveillance; this adapter is better suited to management workstations or configuration laptops. When planning wireless deployments across multiple machines, review your PoE switch and AP infrastructure to ensure the 5 GHz band is properly segmented. For guidance on selecting the right connectivity hardware for your environment, consult a wireless networking guide before committing to a wireless-only architecture.

Frequently Asked Questions

Q: What wireless standards does the USB433ACD1X1 support?

A: The USB433ACD1X1 supports IEEE 802.11ac, 802.11n, 802.11g, 802.11a, and 802.11b — it's fully backward compatible with legacy access points while supporting the faster AC600 standard on current infrastructure.

Q: What is the maximum wireless speed for the USB433ACD1X1?

A: The adapter delivers up to 433 Mbps on the 5 GHz band and up to 150 Mbps on the 2.4 GHz band. Actual throughput will vary based on signal quality, distance, and network congestion.

Q: What security protocols does the USB433ACD1X1 support?

A: It supports WEP, WPA, WPA2-PSK with both TKIP and AES encryption — WPA2-AES is the recommended configuration for business deployments.

Q: What is the warranty on the USB433ACD1X1?

A: StarTech provides a 2-year manufacturer warranty on the USB433ACD1X1.

Q: Does the USB433ACD1X1 work with USB 3.0 ports?

A: Yes. USB 3.0 ports are backward compatible with USB 2.0 devices, so the USB433ACD1X1 will function correctly in a USB 3.0 slot — it will operate at USB 2.0 speeds, which are sufficient for the adapter's wireless bandwidth ceiling.

Q: What are the operating temperature limits for the USB433ACD1X1?

A: The USB433ACD1X1 is rated for operating temperatures of 0°C to 40°C (32°F to 104°F), making it suitable for standard indoor commercial environments only.

Eden Phillips

The USB433ACD1X1 is a nano dual-band adapter that I'd reach for in one specific scenario: you have a fixed workstation or management PC that lacks wireless, and you can't run a cable to it — the 433 Mbps ceiling on 5 GHz is more than adequate for remote desktop sessions, configuration tools, or pulling firmware files, and the near-flush form factor means it won't get knocked loose by anyone walking past the machine.

Technical Highlights:

• 5 GHz at 433 Mbps: More than sufficient for management traffic and light file transfers — and critically, 5 GHz avoids the 2.4 GHz congestion that plagues dense environments with dozens of IoT sensors and legacy devices.
• Nano dimensions (0.9 x 0.7 x 0.3 in, 2g): At 2 grams and under an inch across, it's effectively permanent once installed — no cable stress, no leverage point to break the USB port, no snag risk in a rack cabinet.
• WPA2-PSK with AES: Meets current enterprise wireless security baselines without requiring any additional configuration beyond your standard SSID and passphrase setup.

Deployment Considerations:

• The 0°C to 40°C operating range is strictly indoor commercial — don't install this in an unheated equipment closet in a northern climate or any space that routinely exceeds 40°C in summer.
• USB 2.0 bus bandwidth caps at 480 Mbps theoretical; since the 5 GHz radio ceiling is 433 Mbps, you won't be bus-limited — but don't expect to stack multiple simultaneous high-bandwidth streams through a single adapter without contention.

The USB433ACD1X1 is the right call for IT technicians who need to add wireless to a fixed configuration workstation, kiosk PC, or point-of-sale terminal where a wired drop isn't feasible and a protruding adapter would create a liability. It's not a replacement for wired infrastructure on production systems.
