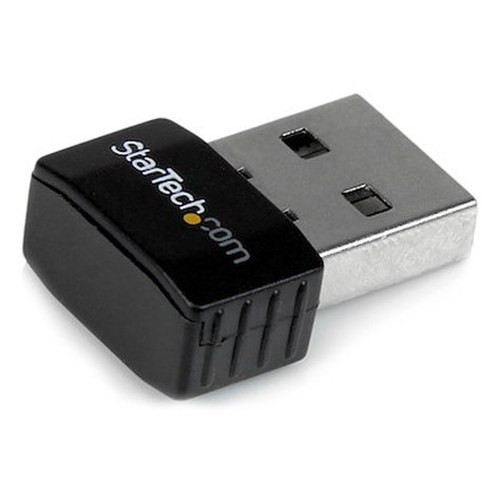

StarTech USB300WN2X2C 300Mbps Wireless-N USB 2.0 Wi-Fi Adapter

Overview

The StarTech USB300WN2X2C is a compact dual-antenna 802.11n USB adapter that adds 2.4GHz wireless connectivity to any desktop or laptop with an available USB 2.0 Type-A port. Weighing just 2 grams and measuring only 6mm thick, it installs without tools and without occupying adjacent ports — a practical solution when you need to bring a wired-only machine onto your wireless network without opening the chassis or adding a PCIe card. For integrators deploying wireless connectivity across network infrastructure projects, this adapter keeps retrofit installations clean and fast.

Key Features

• 300 Mbps maximum throughput via 2x2:2 MIMO: The dual-antenna configuration (two transmit, two receive) supports spatial multiplexing under 802.11n — in practical terms, you get meaningfully higher throughput and better range stability than single-antenna adapters, particularly in environments with reflective surfaces or moderate RF interference.
• IEEE 802.11b/g/n compatibility: Backward compatibility with 802.11b and 802.11g means this adapter works on older access points without reconfiguration. If your site still runs a mixed-generation wireless infrastructure, the USB300WN2X2C connects without forcing an AP upgrade.
• 2.4GHz band operation (2.400GHz–2.484GHz): The 2.4GHz band provides longer range and better wall penetration than 5GHz — the right call for machines that sit further from the access point or are separated by concrete or drywall. Note: this adapter does not support 5GHz, so it is not suitable for dual-band-only APs locked to that band.
• WPA2 / WPA / WEP security: WPA2 is the current standard for wireless encryption in enterprise and commercial environments. WPA and WEP support ensures connectivity to legacy networks, though WEP should only be used where no other option exists given its known vulnerabilities.
• USB 2.0 Type-A connector: Connects to any USB 2.0 or USB 3.0 Type-A port — USB 3.0 ports are backward compatible, so the adapter works on virtually every modern desktop and laptop without a hub or adapter. No separate power supply required; the adapter draws power directly from the USB bus.
• Ultra-compact form factor (22mm x 16mm x 6mm, 2g): At 6mm high and 2 grams, this is effectively a low-profile dongle. It will not block adjacent USB ports on most machines, and it stays clear of laptop hinges and docking station edges that can catch taller adapters.
• Operating temperature 0°C–40°C: Rated for standard office and light industrial indoor environments. If you are deploying in a warehouse with seasonal temperature swings beyond 40°C, confirm ambient conditions before specifying this adapter — it is not rated for harsh thermal environments.
• 2-year manufacturer warranty: StarTech covers this adapter for two years from purchase, which aligns with typical IT refresh cycles for peripheral accessories in commercial deployments.

Integration and Compatibility

The USB300WN2X2C connects via USB 2.0 Type-A, which is present on virtually every desktop, thin client, and laptop produced in the last fifteen years. Compatibility extends to USB 3.0 and USB 3.1 Type-A ports since those are backward compatible with USB 2.0 devices. The adapter operates exclusively on the 2.4GHz band, so your access point must support 2.4GHz operation — most dual-band APs do, but verify if your AP is configured to broadcast 5GHz only. For wireless networking deployments where thin clients or embedded systems need a network connection without a physical cable run, this adapter provides a straightforward path. Security integrators adding wireless-capable endpoints to surveillance management workstations or access control head-end PCs will find the WPA2 support sufficient for standard enterprise wireless authentication. Pair with a capable network switch and access point infrastructure for best results in multi-device deployments.

Frequently Asked Questions

Q: Does the USB300WN2X2C support 5GHz Wi-Fi?

A: No. The USB300WN2X2C operates exclusively on the 2.4GHz band (2.400GHz–2.484GHz). It does not support 5GHz or 802.11ac/Wi-Fi 5. If your access point only broadcasts on 5GHz, this adapter will not connect.

Q: What wireless security standards does the USB300WN2X2C support?

A: The USB300WN2X2C supports WPA2, WPA, and WEP. WPA2 is recommended for all current deployments. WEP support is included for legacy network compatibility only.

Q: Will the USB300WN2X2C physically fit without blocking adjacent USB ports?

A: At 22mm long, 16mm wide, and only 6mm high, the adapter has a very low-profile footprint that typically clears adjacent ports on standard desktop and laptop USB port spacing. Verify clearance on tightly spaced ultra-compact form factor machines.

Q: What is the warranty on the USB300WN2X2C?

A: StarTech provides a 2-year manufacturer warranty on the USB300WN2X2C.

Q: Does the USB300WN2X2C require an external power supply?

A: No. The adapter is bus-powered entirely through the USB 2.0 Type-A connection — no external power supply or separate cable is needed.

Q: What is the maximum data transfer rate of the USB300WN2X2C?

A: The USB300WN2X2C supports a maximum wireless data transfer rate of 300 Mbps under 802.11n using its 2x2:2 MIMO antenna configuration. Real-world throughput will vary based on distance, interference, and AP capability.

James Everett

The USB300WN2X2C comes up regularly when I am scoping wireless connectivity for head-end workstations or access control management PCs that were originally installed as wired-only machines. The 2x2:2 MIMO antenna configuration is the meaningful differentiator here — most adapters at this price and size run single-stream, which caps you well below the 300 Mbps theoretical ceiling and degrades noticeably as distance increases. The dual spatial streams in the USB300WN2X2C hold throughput more consistently across moderate distances.

Technical Highlights:

• 2x2:2 MIMO at 300 Mbps: Two transmit and two receive chains let the adapter aggregate two 150 Mbps spatial streams — this matters in real environments where a single-stream adapter would struggle past 10–15 meters from the AP.
• 2.4GHz band (2.400–2.484GHz): Better wall and obstacle penetration than 5GHz — practical advantage in older buildings with dense partition walls where 5GHz signal drops sharply.
• 6mm profile, 2g weight: Small enough that it stays in the port without strain on the connector, and clears adjacent ports on virtually all standard desktop and laptop chassis without a USB extension cable.

Deployment Considerations:

• The operating temperature ceiling is 40°C — confirm ambient conditions in server rooms or equipment closets with poor ventilation before deploying; this is not rated for industrial thermal ranges.
• The adapter is 2.4GHz only — if your wireless infrastructure has been migrated to 5GHz-only operation or uses 802.11ac/Wi-Fi 5 exclusively, this adapter will not associate. Verify your AP still broadcasts a 2.4GHz SSID before specifying it.

The USB300WN2X2C is a strong fit for retrofit deployments where a surveillance management workstation or VMS client PC needs wireless connectivity added without chassis modification — particularly in office and light commercial environments where the AP is within 20–30 meters and 2.4GHz coverage is confirmed.
