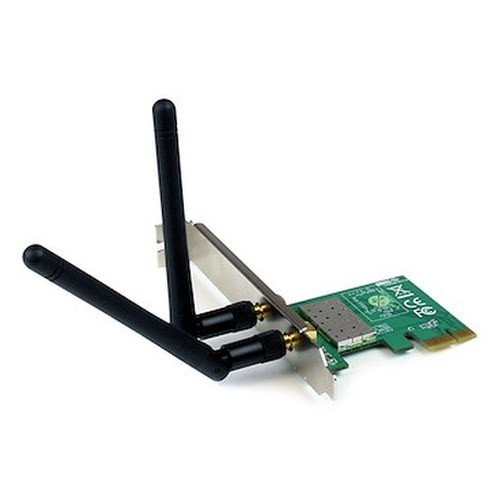

StarTech PEX300WN2X2 300Mbps Wireless-N PCI Express Desktop Adapter

Overview

The StarTech PEX300WN2X2 is a PCI Express wireless-N adapter that adds 300 Mbps 802.11n Wi-Fi to a desktop PC without requiring an external USB dongle or a new motherboard. If you have a spare PCIe slot and need reliable 2.4 GHz wireless connectivity — for a kiosk workstation, an edge server, or a desktop that was never wired into the LAN — this card handles it without adding clutter to the desk or consuming a USB port. The card occupies a standard-profile PCIe slot, fits in full-size tower and mid-tower cases, and uses two external RP-SMA antennas that you position for the best signal path.

Key Features

• 300 Mbps 802.11n throughput: Dual-channel 2x2:2 MIMO delivers up to 300 Mbps on the 2.4 GHz band — fast enough for HD video streaming, VoIP, remote desktop sessions, and cloud-based management consoles. This is the practical ceiling for 2.4 GHz-only 802.11n, so set expectations accordingly for bandwidth-heavy tasks.
• IEEE 802.11b/g/n compatibility: The card negotiates down to 802.11b (11 Mbps) or 802.11g (54 Mbps) as needed, so it will associate with older access points and mixed-environment networks without requiring a network upgrade.
• 2.4 GHz band (2.400–2.484 GHz): Operates exclusively in the 2.4 GHz ISM band. Coverage range is generally better than 5 GHz at equal power, which matters in environments where the access point is one or two walls away. Note: this card does not support 5 GHz — if your deployment requires 5 GHz-only SSIDs or AC/AX speeds, a dual-band card is the right choice instead.
• WPA2 with AES/TKIP encryption: Supports WEP, WPA, WPA2, and WPS. WPA2-AES is the current baseline for enterprise wireless security policy compliance. WPS is available for quick setup in lab or test environments where WPA2 enterprise isn't required.
• 2x2:2 MIMO with 2 dBi RP-SMA antennas: Two spatial streams allow the adapter to transmit and receive simultaneously across two antenna paths, which improves throughput stability in multipath environments (reflective walls, metal shelving). The RP-SMA connectors mean you can swap the included antennas for higher-gain directional antennas if you need to improve link reliability to a distant AP.
• Standard-profile PCIe form factor: At 3.0 in × 1.9 in × 0.7 in and 1.3 oz, the card installs in any standard PCIe ×1 or larger slot. Standard-profile bracket means it fits full-height desktop enclosures directly — low-profile bracket availability should be confirmed before ordering for slim or HTPC cases.
• Operating temperature -10°C to 70°C: Rated for ambient temperatures well above typical office or light industrial conditions. Storage range extends to -20°C, which covers most shipping and warehousing scenarios without special handling.
• 2-year manufacturer warranty: StarTech backs this card with a 2-year warranty, which is the standard for their adapter line and appropriate for commercial deployment planning.

Integration and Compatibility

The PEX300WN2X2 installs into any PCIe ×1, ×4, ×8, or ×16 slot on a standard ATX or micro-ATX motherboard. It operates on the 2.4 GHz band and is compatible with 802.11b/g/n access points from all major enterprise and prosumer AP vendors. For deployments running WPA2-Enterprise (802.1X/RADIUS), confirm that the driver for your target OS supports the EAP method required by your RADIUS server — driver documentation from StarTech should be reviewed prior to deployment in 802.1X environments. The dual RP-SMA antenna connectors are a practical advantage: if link quality is marginal with the included 2 dBi antennas, you can fit higher-gain omni or directional antennas without replacing the card.

This adapter is a single-band 2.4 GHz device. It will not connect to 5 GHz-only SSIDs, and it does not support 802.11ac or 802.11ax. For mixed or dual-band environments, plan accordingly and ensure the AP is broadcasting a 2.4 GHz SSID.

Frequently Asked Questions

Q: Does the PEX300WN2X2 support 5 GHz Wi-Fi?

A: No. The PEX300WN2X2 operates exclusively on the 2.4 GHz band (2.400–2.484 GHz). It does not support 5 GHz, 802.11ac, or 802.11ax. If your access point requires a 5 GHz client, you will need a dual-band adapter.

Q: What PCIe slot type does the PEX300WN2X2 require?

A: The card fits any PCIe slot — ×1, ×4, ×8, or ×16. PCIe slots are backward and forward compatible in terms of physical fit for smaller cards, so a ×1 card will seat in any larger slot without issue.

Q: What is the maximum wireless data rate for the PEX300WN2X2?

A: The rated maximum is 300 Mbps under the 802.11n standard using 2x2 MIMO on the 2.4 GHz band. Real-world throughput will be lower depending on distance, interference, and AP capabilities.

Q: Can I replace the antennas on the PEX300WN2X2?

A: Yes. The card uses standard RP-SMA connectors, which are widely supported. You can substitute higher-gain omni or directional antennas to improve link quality in challenging RF environments.

Q: What is the warranty on the PEX300WN2X2?

A: StarTech provides a 2-year manufacturer warranty on the PEX300WN2X2.

Q: Does the PEX300WN2X2 support WPA2 security?

A: Yes. The card supports WEP, WPA, WPA2, and WPS. WPA2 uses AES or TKIP encryption, with AES being the recommended choice for current security policy compliance.

Jerry Tildsen

The PEX300WN2X2 is one of those workhorses I recommend when someone needs to retrofit wireless into an existing desktop that has a free PCIe slot and no budget for a new machine. The 2x2:2 MIMO configuration is the key spec here — two spatial streams on 802.11n mean the card holds throughput better than a single-stream adapter when signal conditions aren't ideal, which is exactly the situation in most retrofit scenarios.

Technical Highlights:

• 2x2:2 MIMO at 300 Mbps: Both transmit and receive paths are active simultaneously, which reduces the throughput degradation you'd see with a 1x1 adapter under multipath or moderate interference conditions — relevant in any office or light industrial environment with metal structures nearby.
• RP-SMA antenna connectors: The 2 dBi included antennas are fine for close-range links, but the RP-SMA standard means you're not locked in. Swapping to 5 dBi omni antennas costs very little and can meaningfully extend reliable range when the AP is across a large open floor.
• WPA2-AES security: AES-based WPA2 is supported natively — important if your wireless policy prohibits TKIP. TKIP is present for legacy AP compatibility but should be avoided in any current deployment.

Deployment Considerations:

• This is a 2.4 GHz-only card with an operating ceiling of 300 Mbps. In environments where the 2.4 GHz band is heavily congested — dense office buildings, warehouses with many Wi-Fi devices — expect real-world throughput well below the rated maximum. If the deployment site has a crowded 2.4 GHz spectrum, dual-band capability becomes important.
• The standard-profile bracket fits full-size cases. Confirm case compatibility before ordering — slim-chassis or HTPC builds often require a low-profile bracket, and low-profile bracket inclusion is not confirmed in the available product data for this SKU.

The PEX300WN2X2 fits best in a fixed desktop workstation retrofit — think a kiosk PC or a back-office desktop in a branch location where running Ethernet isn't practical and the workload (remote desktop, light file transfer, cloud console access) stays comfortably within 802.11n's practical throughput range on 2.4 GHz.
