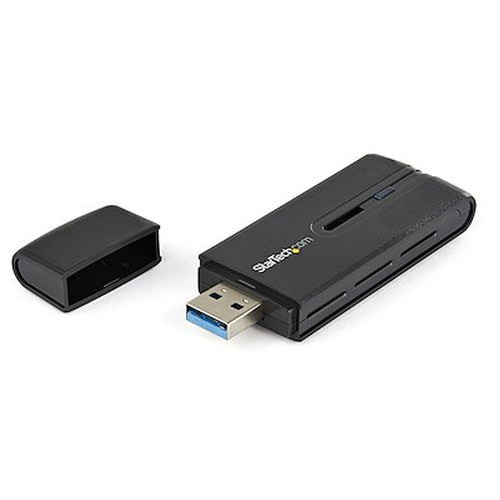

StarTech USB867WAC22 Dual-Band 802.11ac USB 3.0 Wireless Adapter

Overview

The StarTech USB867WAC22 is a compact dual-band 802.11ac USB 3.0 wireless adapter designed to add modern Wi-Fi connectivity to a desktop or laptop that lacks it — or to replace an aging 802.11n connection that can no longer keep pace with network demands. At 80 mm long and just 16 g, it installs without occupying a PCIe slot or requiring a driver disc in most current operating environments. If you are deploying field workstations, thin-client security terminals, or ruggedized PCs that need wireless backhaul without internal card access, this adapter is worth evaluating against your use case.

Running across both the 2.4 GHz and 5 GHz frequency bands, the USB867WAC22 gives you the flexibility to connect where band congestion is a factor. The 5 GHz band delivers the full 867 Mbps theoretical ceiling under 802.11ac Wave 1, while 2.4 GHz trades raw speed for range when the access point is further away or there are structural obstacles between the adapter and the AP.

Key Features

• 867 Mbps on 5 GHz (802.11ac): The 5 GHz band operates at up to 867 Mbps under 802.11ac — roughly 3x the ceiling of a standard 802.11n adapter on the same band. For workstations streaming HD video feeds, syncing large surveillance clip archives, or handling VoIP alongside data, the higher ceiling reduces the likelihood of the wireless link becoming the bottleneck.
• Dual-Band 2.4 GHz / 5 GHz: Connecting to 2.4 GHz extends usable range in environments where the host machine is farther from the AP, but expect lower throughput and more interference in dense office or warehouse environments where 2.4 GHz is crowded. Use 5 GHz whenever the deployment allows it.
• USB 3.0 Host Interface: The USB 3.0 interface has a theoretical bandwidth ceiling of 5 Gbps — well above the 867 Mbps wireless max — so the host connection will not be the constraint. It also works in USB 2.0 ports, but throughput will be limited by the USB 2.0 ceiling of 480 Mbps, which can cap real-world 802.11ac performance.
• 2x2:2 MIMO Antenna Configuration: Two spatial streams mean the adapter can transmit and receive on two independent data paths simultaneously, improving throughput consistency in environments with reflective surfaces or multipath interference — relevant in warehouses, server rooms, and retail spaces with metal shelving.
• WEP / WPA / WPA2 Security: Supports the full current range of Wi-Fi security protocols up to WPA2-Personal and WPA2-Enterprise. WPA2 is the minimum you should be running on any business network; WEP support is legacy-only and should not be configured in active deployments.
• 0°C to 60°C Operating Temperature: Rated for the full 0–60°C range, making it suitable for standard indoor commercial and light-industrial environments. It is not rated for outdoor or sub-zero deployment — keep that in mind for edge installations in unheated spaces.
• Compact Form Factor (80 x 29 x 10 mm, 16 g): The low-profile dimensions mean it will not physically block an adjacent USB port on most desktop chassis, and the negligible weight will not stress the USB connector on a laptop. If port clearance is tight, verify the 80 mm projection does not conflict with nearby components or enclosure lids.

Integration and Compatibility

The USB867WAC22 connects via USB 3.0 and operates with standard 802.11ac access points and routers. No proprietary AP is required. For enterprise deployments, WPA2-Enterprise mode supports RADIUS-based authentication, which is important if your network policy requires 802.1X for all wireless endpoints. Verify driver availability for your specific OS version before deployment — StarTech publishes driver packages for current Windows and macOS releases. Linux compatibility varies by kernel version and chipset support.

If you are integrating this adapter into a network equipment stack or connecting a security workstation to a wireless surveillance backhaul, confirm that the access point supports the 802.11ac 2x2 MIMO configuration to get the full 867 Mbps link rate. Pairing with an 802.11n AP will fall back to N speeds regardless of the adapter's capability.

For environments building out a IP camera network with wireless-connected management workstations, this adapter provides a reliable USB-based option without requiring a PCIe slot. Review the full network adapters category for alternative form factors if USB port availability is limited.

Frequently Asked Questions

Q: What is the maximum wireless throughput of the USB867WAC22?

A: The USB867WAC22 supports up to 867 Mbps on the 5 GHz band under the 802.11ac standard. This is a theoretical maximum under ideal RF conditions; real-world throughput will be lower depending on signal strength, interference, and the capabilities of the connected access point.

Q: Will the USB867WAC22 work in a USB 2.0 port?

A: Yes, the adapter is backward-compatible with USB 2.0 ports. However, USB 2.0 has a maximum bandwidth of 480 Mbps, which will cap throughput below the adapter's 867 Mbps wireless ceiling. For full performance, connect to a USB 3.0 port.

Q: What wireless security protocols does the USB867WAC22 support?

A: The adapter supports WEP, WPA, and WPA2. For any active business deployment, WPA2 is the minimum recommended configuration. WEP is supported for legacy compatibility only and should not be used on live networks.

Q: What is the operating temperature range for the USB867WAC22?

A: The USB867WAC22 is rated for 0°C to 60°C (32°F to 140°F). It is designed for standard indoor commercial environments and is not rated for outdoor, sub-zero, or high-humidity industrial deployments.

Q: What is the warranty on the USB867WAC22?

A: StarTech covers the USB867WAC22 with a 2-year manufacturer warranty.

Q: Does the USB867WAC22 support both 2.4 GHz and 5 GHz simultaneously?

A: The adapter supports both 2.4 GHz and 5 GHz bands, but as a single-radio adapter it connects to one band at a time. Band selection is determined at connection time based on the access point and your OS or driver settings.

Ted Perry

I get asked fairly often whether a USB Wi-Fi adapter can handle real workload on a security or IT network, and the answer with the USB867WAC22 depends entirely on one thing: are you plugging it into a USB 3.0 port? The adapter's 867 Mbps 802.11ac ceiling is real, but it is immediately constrained if you connect it to USB 2.0 — you will hit the 480 Mbps USB 2.0 bandwidth wall before you hit the wireless ceiling. Get that right first, and the rest follows logically.

Technical Highlights:

• 867 Mbps on 5 GHz: Under 802.11ac with a capable AP, the 5 GHz link rate is sufficient for HD video streaming, large file transfers, and concurrent VoIP — the three workloads that typically expose a weak wireless adapter on a security workstation.
• 2x2:2 MIMO: Two spatial streams improve consistency in multipath environments (metal shelving, concrete walls, equipment bays) where a single-stream adapter would show erratic throughput drops. The difference is not theoretical in warehouse and plant floor deployments.
• WPA2 Security: WPA2 support covers both Personal and Enterprise modes, which matters if your site enforces 802.1X RADIUS authentication for all wireless clients — common in healthcare, finance, and government-adjacent deployments.

Deployment Considerations:

• The 80 mm body projection is worth measuring before ordering for rackmount workstations or compact mini-PCs where the USB port faces a panel or adjacent hardware — 80 mm is not insignificant in a tight 1U chassis.
• Operating temperature tops out at 60°C, which is fine for a climate-controlled server room or office workstation but rules out deployment in unventilated outdoor enclosures or any environment that runs hot in summer without active cooling.

The USB867WAC22 is a practical fit for security integrators provisioning wireless-connected management workstations or thin clients at retail or small commercial sites — locations where running Ethernet is not feasible and the existing PC lacks a built-in Wi-Fi card or has a failing one. It is not the right call for high-density wireless environments where a PCIe or M.2 card with a proper external antenna would deliver more consistent signal at range.
