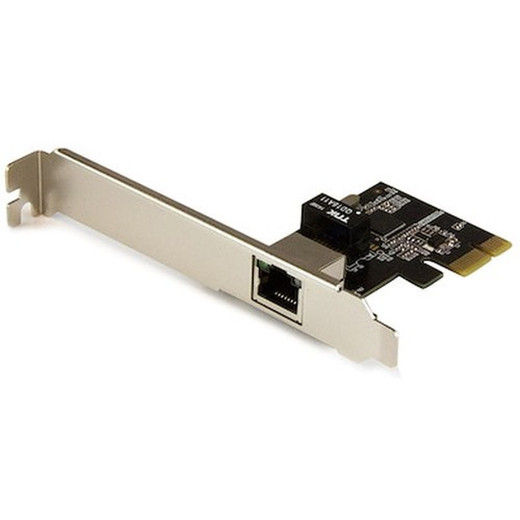

StarTech ST1000SPEXI PCIe x1 Gigabit Ethernet Network Interface Card

Overview

The StarTech ST1000SPEXI is a single-port Gigabit Ethernet NIC built on the Intel I210-AT chipset — one of the most widely driver-supported and enterprise-proven controller ICs available for PCIe adapters. If you're adding or restoring a reliable GbE port to a server, workstation, or NVR host over a standard PCIe x1 slot, this card does the job cleanly without introducing driver headaches or compatibility uncertainty that come with generic chipsets.

The standard-profile form factor fits full-height desktop and rack-mount server chassis without modification. The card draws only 0.8W from the 12V DC rail, making it a non-issue even in power-constrained builds or systems with limited PCIe slot headroom. For anyone adding network connectivity to a network video recorder host or a dedicated server, the ultra-low power draw means no meaningful impact on your system's thermal or power budget.

Key Features

• Intel I210-AT Chipset: Intel's I210-AT is the reference silicon for enterprise GbE — it ships natively supported in Linux kernels, Windows Server, VMware ESXi, and most NAS/NVR operating systems. You won't be hunting for third-party drivers or dealing with compatibility flags when you deploy this in a production environment.
• PCIe x1 Interface, Up to 2,000 Mbps Full-Duplex: The x1 lane delivers up to 2 Gbps of theoretical bandwidth, which is the correct headroom for a full-duplex GbE link (1 Gbps transmit + 1 Gbps receive simultaneously). There is no bottleneck at the bus level for a 1GbE workload — every bit of wire speed is available end to end.
• 10/100/1000 Mbps Auto-Negotiation: The card negotiates speed automatically with connected switches and endpoints. Connecting to a legacy 100Mbps switch segment? It drops down cleanly. Patching into a 1GbE uplink? Full wire speed. No manual configuration needed for basic connectivity.
• 9K Jumbo Frame Support: Jumbo frames (up to 9,000-byte MTU) reduce CPU overhead on high-throughput transfers by cutting the number of packets processed per second. In practice, this matters on iSCSI storage links, NFS mounts, and high-bitrate video ingest paths — anywhere you're pushing sustained large data transfers rather than bursty request/response traffic.
• IEEE 802.1Q VLAN Tagging: Hardware-level VLAN tagging lets you segment traffic directly at the NIC — useful when this card is feeding a security VLAN on an NVR host or isolating camera network traffic from general LAN traffic without requiring a managed switch to do all the work.
• Energy Efficient Ethernet (IEEE 802.3az): The 802.3az standard reduces power consumption during low-traffic periods by signaling the PHY to enter a low-power idle state. At 0.8W full load, this card is already light — EEE pushes draw even lower during idle periods, which matters in always-on server environments running 24/7.
• Standard Profile Form Factor: Fits standard full-height PCIe slots in rack-mount servers, tower workstations, and NVR appliances without a bracket swap. If you need low-profile, confirm your chassis clearance before ordering — this card ships in standard profile only.
• Operating Temperature 5°C to 50°C: Rated for typical indoor server room and office environments. Not rated for uncontrolled or outdoor enclosures — install it in a climate-controlled space to stay within spec.

Integration and Compatibility

The Intel I210-AT controller inside the ST1000SPEXI is broadly compatible with Windows Server 2012 R2 through current releases, major Linux distributions (Ubuntu, CentOS, RHEL, Debian), VMware ESXi, and Windows 10/11. Native inbox driver support in most of these operating systems means you can install and bring the port online without downloading anything from a manufacturer site — a meaningful advantage in air-gapped or hardened environments.

The card is a natural fit for servers or workstations being integrated into IP camera networks or paired with a video management system that needs dedicated network I/O separated from general LAN traffic. VLAN tagging support via 802.1Q means the NIC can participate in a segmented camera network directly, without relying entirely on upstream switch configuration. For teams building out PoE switch infrastructure alongside NVR hosts, having a dedicated, Intel-chipset NIC on the recording server removes one variable from the troubleshooting chain.

Jumbo frame support up to 9K makes the ST1000SPEXI well-suited for iSCSI SAN connectivity or NFS-attached storage arrays where CPU offload on large frame transfers directly impacts recording performance. Pair it with a switch configured for matching MTU on that segment and you'll see measurable CPU reduction under sustained load.

Frequently Asked Questions

Q: What chipset does the ST1000SPEXI use, and why does it matter?

A: The ST1000SPEXI uses the Intel I210-AT controller. This chipset has native driver support in Windows Server, Linux, and VMware ESXi — meaning in most deployments you won't need to install third-party drivers. It's one of the more universally supported GbE controllers available, which reduces compatibility risk in production environments.

Q: Will the ST1000SPEXI fit in a low-profile server chassis?

A: The ST1000SPEXI ships in standard (full-height) profile only. It will not fit a low-profile slot without a bracket swap, and the card dimensions (4.7 in x 2.6 in x 0.7 in) confirm standard profile sizing. Verify your chassis before ordering if you're working with a 1U rack server or small form factor system.

Q: What is the maximum supported jumbo frame size?

A: The ST1000SPEXI supports jumbo frames up to 9K (9,000 bytes MTU). This is useful for iSCSI storage, NFS, or high-bitrate video ingest workloads where larger frame sizes reduce CPU packet-processing overhead. The connected switch port must also be configured for the same MTU for jumbo frames to function end to end.

Q: How much power does the ST1000SPEXI draw?

A: The card draws 0.8W at 12V DC — low enough that it has no meaningful impact on system power budgets or PCIe slot power allocations. Energy Efficient Ethernet (IEEE 802.3az) further reduces draw during low-traffic periods.

Q: What is the warranty on the ST1000SPEXI?

A: The ST1000SPEXI carries a 2-year manufacturer warranty.

Q: Does the ST1000SPEXI support VLAN tagging?

A: Yes. The card supports IEEE 802.1Q VLAN tagging at the hardware level. This allows you to assign and tag VLAN traffic directly from the NIC, which is useful for isolating camera or storage network segments on a shared server without requiring the upstream switch to handle all segmentation.

Ted Perry

The ST1000SPEXI is a card I'd recommend specifically because of the Intel I210-AT chipset — not because of the brand on the box, but because when you're provisioning a dedicated NVR host or a video management server and you need to guarantee driver compatibility across OS updates and hypervisor versions, the I210-AT is the controller you want under the hood. Generic chipset NICs introduce driver uncertainty that costs you troubleshooting time at the worst possible moment.

Technical Highlights:

• Intel I210-AT Chipset: Native inbox driver support in Linux, Windows Server, and ESXi means zero driver-hunting in air-gapped or hardened server environments — a real operational advantage.
• 0.8W Power Draw: At 0.8W on the 12V rail, this card won't register on your power or thermal budget. Energy Efficient Ethernet (802.3az) drops it lower still during idle — relevant on always-on recording servers running 24/7.
• 9K Jumbo Frame Support: For iSCSI-attached storage or NFS video archives, matching jumbo MTU end-to-end between this NIC and your switch measurably reduces CPU overhead on sustained high-bitrate transfers.

Deployment Considerations:

• Standard profile only — measure your chassis clearance before ordering. A 1U rack server or SFF workstation may not accommodate this card without a low-profile bracket, which does not ship in the box.
• Operating temperature ceiling is 50°C — fine for a climate-controlled server room, but don't install this in an unventilated enclosure or a hot-aisle environment without confirming ambient temps stay under spec.

Best fit: an NVR host or VMS server that needs a dedicated, isolated GbE port for camera VLAN traffic — particularly where the OS or hypervisor is Linux-based and driver simplicity is a hard requirement.
