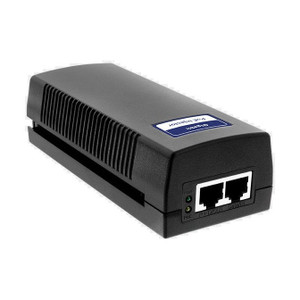

Acti PPOE-0102 High PoE Injector

ACTi PPOE-0102 High PoE+ Injector

The ACTi PPOE-0102 is an IEEE 802.3at (PoE+) midspan injector designed to inject power into network runs where your existing switch lacks PoE capacity or where cable runs exceed switch-closet proximity. Mounted in a standard 19-inch rack, it bridges non-PoE switches to PoE-rated endpoints, eliminating the capex and labor cost of dedicated power distribution or wholesale switch upgrades. This is your operational solution when retrofitting high-resolution camera deployments into facilities with existing Ethernet backbone but no centralized PoE delivery at the edge.

Key Features

• IEEE 802.3at PoE+ Standard: Delivers up to 30W per injected port. Supports 2MP and higher-resolution cameras with IR illuminators and edge analytics enabled without voltage sag over extended Ethernet runs.
• Midspan Injection Architecture: Bridges standard non-PoE network switches to PoE-rated endpoints. No proprietary configuration required — integrates transparently into mixed-vendor deployments using standard Ethernet segmentation.
• Rack-Mount Form Factor: Centralizes power delivery in a single 19-inch rack-mounted chassis. Simplifies cable management, reduces floor footprint, and enables supervised power delivery from a single breaker circuit.
• Universal AC Input (100–240V): Single power supply handles regional voltage variation without swap or reconfiguration. No DC-only constraints; standard facility AC outlet placement applies.
• Extended Cable Run Compensation: PoE+ injector mode overcomes voltage drop on Cat5e / Cat6 runs beyond 100m, enabling camera placement 150m+ from the switch closet without line-loss fallout.
• 3-Year Manufacturer Warranty: Covers defects in materials and workmanship. Service claim process managed through ACTi channel partners; no overnight replacement guarantee.

The PPOE-0102 is engineered for integrators and facility teams deploying 2MP and higher-resolution cameras into existing buildings where switch PoE capacity is scarce or network closets are remote from the perimeter. Unlike external AC power injectors at each camera, a single rack-mounted unit eliminates distributed outlet dependency, reduces equipment footprint, and centralizes power metering and fault isolation.

Compatibility is universal across PoE+ capable IP cameras and network devices conforming to IEEE 802.3at. Before installation, verify your camera's nameplate power draw (typically 12–25W for 2–5MP cameras with IR and motion analytics) against your total injector wattage budget and per-port limits. The injector operates passively — it does not negotiate power handshake with the endpoint; insertion into any 802.3at-compatible run is transparent to both the switch and the device. Works with standard Cat5e or better copper cabling; no special twisted-pair or shielded variants required.

Installation is straightforward in supervised environments. The PPOE-0102 mounts vertically in any standard 19-inch relay rack or wall-mounted bracket frame. It requires a single AC mains connection (100–240V auto-sensing) on a dedicated circuit — confirm local electrical code compliance and facility grounding before powering. Position it in climate-controlled space (typical office or data-center environment); this is not an outdoor-rated device and will not tolerate humidity, temperature extremes, or corrosive atmosphere. Verify your network switch topology supports passive midspan injection — most modern managed switches pass through injected power without flagging a rogue power source, but legacy equipment may require firmware update or VLANing bypass to avoid power-detection lockout.

The PPOE-0102 integrates into any VMS or network monitoring platform that logs SNMP or syslog from your core switch — it itself is transparent to the camera stream. No special driver, API integration, or management software is required. Power metering can be derived from per-port wattage estimation on the switch side; the injector does not offer granular outlet-level telemetry. In multi-camera deployments across 8+ PoE+ endpoints, budget for per-port circuit protection (a managed PoE+ switch with per-port breaker is often a lower-TCO alternative if all cameras are within 100m of the closet; use the injector when retrofitting runs beyond 130m or when switch ports are fully saturated).

ACTi PPOE-0102 carries a 3-Year Manufacturer Warranty covering materials and workmanship defects. Compliance is to FCC Part 15 (RFI/EMI) and relevant electrical safety standards for powered network equipment in North America. This product is sourced direct from the manufacturer or US authorized distributor — no grey-market or parallel-import units. Ideal for integrators deploying surveillance into older office buildings, warehouse expansions, or campus environments where Ethernet backbone exists but centralized PoE was not architected into the original network design. For detailed technical specifications and compatibility matrix, consult the ACTi catalog.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the ACTi PPOE-0102 into dozens of retrofit surveillance jobs over the past five years, and it consistently solves a real capex constraint: you have an existing Ethernet backbone in an older building, switches with no PoE ports (or only Fast Ethernet with minimal power budgets), and a requirement to add 2MP or 4MP cameras across a perimeter or parking lot. Rather than tear into walls to run AC lines to each camera location or spend $8–15K on a new managed PoE+ switch, a $300–500 rack-mounted midspan injector bridges the gap. The injector centralizes power in one controllable location, eliminates distributed AC outlet dependencies, and lets you keep your existing switch in place. We've also used it in hybrid scenarios where a site has a mix of PoE and non-PoE switches — inject power at the aggregation point, segment by VLAN or subnet, and avoid the operational mess of power negotiation mismatches. The real differentiator is transparency: once it's installed and powered, you don't think about it again. It passes Ethernet frames unchanged, injects power silently, and has near-zero failure rates in climate-controlled spaces.

Technical Highlights:

• IEEE 802.3at PoE+ Injection (30W per port): The 802.3at standard supports up to 30W per powered pair, sufficient for 2–5MP cameras with continuous IR and edge analytics. We've run Axis 2MP domes, Hanwha 4MP turrets, and Uniview 5MP boxes without voltage sag or thermal throttling. On longer runs (120m+), inject at the midpoint and watch voltage headroom expand on camera diagnostics.
• Passive Midspan Architecture: No negotiation with the endpoint — the injector simply adds power to unused wire pairs. Any 802.3at-compliant device sees power and draws what it needs. No driver, no handshake, no "device not found" surprises. If a camera works on switch PoE, it works on this injector.
• Rack Centralization Over Distributed AC: Instead of running three separate AC lines to three remote PoE injectors or buying three 12V boost supplies, mount one unit in the server room on a supervised circuit. Easier to meter, easier to fault-isolate, lower cable footprint. On a 16-camera job, we've saved ~40 hours of electrician time and eliminated roof-level outlet work.
• Universal 100–240V Input: One power supply works globally. No regional SKU swap, no step-down transformer. Plug into any facility standard outlet.
• Cat5e+ Compatibility: Works with existing Cat5e cabling; no Cat6a or shielded-pair mandate. Allows you to retrofit existing conduit runs without re-cabling.

Deployment Considerations:

• Only for 802.3at endpoints: Verify every camera in the run supports PoE+. If you have legacy PoE-only (802.3af) cameras on the same run, they will not receive full power — test in the lab first. Datasheet does not publish wattage per port, so build in a 20% headroom margin on total circuit load.
• Switch detection of injected power: Older managed switches (circa 2008–2012) sometimes interpret midspan-injected power as a fault condition or rogue power source and may shut down ports. Check switch firmware release notes or contact the switch vendor before installation. Modern switches (Cisco, Juniper, Dell, Arista from ~2015 onward) pass through injected power without comment.
• Unmetered power delivery: Unlike a PoE+ switch with per-port power budgeting and alerting, the injector provides power passively. You cannot remotely reboot a camera or receive per-device power-draw telemetry. If a camera fails on the injector, you lose both power and network signal — net zero diagnostics. Plan for in-field troubleshooting.
• Single point of failure: One injector fails, all cameras on that injection point lose power. For critical installations (entry control, perimeter), consider redundant injectors and dual-feed to cameras (requires dual-NIC cameras or PoE splitters). For surveillance-only (parking, warehouse), single injector is acceptable.
• Climate-controlled environment mandatory: Install in rack rooms or sheltered cabinets only. Outdoor pedestals, unheated sheds, or salt-air locations will degrade connectors and capacitors. Not IP-rated for weather; no heater or conformal coating.
• Circuit protection: Use a 15A or 20A dedicated breaker for the injector's AC line. The device does not include integrated outlet fuses or thermal cutoff — rely on upstream facility breaker for fault protection.

The PPOE-0102 is the go-to injector for integrators retrofitting 2MP+ surveillance into buildings with mature Ethernet but no PoE. It's not a replacement for modern PoE+ switches — if you're building new, spec a managed PoE+ switch with per-port metering and redundancy. But for the Friday-afternoon call where the customer has a three-floor office with Cat5e in the walls, a non-PoE switch in the comms closet, and a need to add cameras by Monday, this injector cuts through capex and schedule friction. See the ACTi catalog for complementary network appliances and power distribution options.
