Corner Mounts

Corner mounts provide angled installation solutions for surveillance cameras positioned at building edges, hallway intersections, and perimeter corners. These brackets help optimize field-of-view coverage while maintaining structural stability and clean cable management.

Plan Your Deployment

Camera compatibility and mounting interface alignment
Desired coverage angles and blind spot reduction
Indoor vs outdoor environmental considerations
Surface material and structural support requirements
Future service access and upgrade flexibility

Get Recommendations Mounting Brackets & Kits

Showing Results for Corner Mounts

Compare

Out of stock
i-PRO

SKU: WV-QCN500S-W

i-PRO WV-QCN500S-W Corner Mount Bracket

90-degree corner bracket for i-PRO cameras in tight spaces
Special Order · Ships in 2-3 weeks

$233.00 $160.99 Save $72.01

Add to Cart
The item has been added
Free shipping over $499

$233.00 $160.99 Save $72.01

Add to quote Compare
Compare

Out of stock
Speco Technologies

SKU: COR32DW

Speco COR32DW Corner Mount Adaptor Pendant Arm

Corner mount adaptor for CPTZ32D5W pendant arm systems
Special Order · Ships in 2-3 weeks

$53.05 $28.99 Save $24.06

Add to Cart
The item has been added
Free shipping over $499

$53.05 $28.99 Save $24.06

Add to quote Compare
Compare

Out of stock
Speco Technologies

SKU: CMT1G

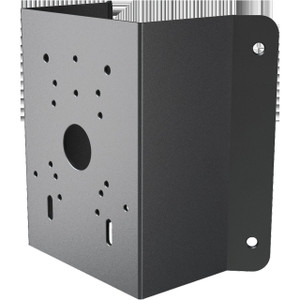

Speco Technologies CMT1G Corner Mount for Speco Blue Cameras

90-degree corner mount bracket for Speco Blue series cameras
Special Order · Ships in 2-3 weeks

$57.60 $56.99 Save $0.61

Add to Cart
The item has been added
Free shipping over $499

$57.60 $56.99 Save $0.61

Add to quote Compare
Compare

Out of stock
Vivotek

SKU: AM-412_V03

Vivotek AM-412 Corner Mount Adapter

Corner mount adapter for dual-direction coverage on Vivotek IB/MS cameras
- SECC steel construction with white finish rated for outdoor installations
- Mounts to AM-218 wall bracket; 315 × 216 × 170 mm footprint
- Positions cameras at corner junctions to eliminate blind spots in dual directions
Special Order · Ships in 2-3 weeks

$166.00 $117.99 Save $48.01

Add to Cart
The item has been added
Free shipping over $499

$166.00 $117.99 Save $48.01

Add to quote Compare

What to Look For When Buying

The decisions that matter most before you spec.

Field-of-View Optimization at Intersections

Corner mounts are critical for hallway, parking garage, and perimeter coverage where a single camera must cover two converging surfaces. Proper bracket angle determines whether you capture both zones or waste coverage overlap. Understanding pixel density and identification distance ensures your angled placement doesn't sacrifice resolution at the farthest monitored point.

Structural Load and Wind Resistance

Corner brackets experience higher lateral stress than wall-mounted equivalents due to their exposed position. Match bracket load rating to camera weight, lens type, and environmental exposure. Outdoor installations require engineered bases and anchor verification to prevent deflection during wind events.

Cable Management and Service Access

Corner positions create cable routing challenges—conduit entry points must allow future camera maintenance without dismounting. Ensure bracket design accommodates drain holes for moisture egress and cable strain relief that prevents tension on camera connectors. Poor cable routing is often overlooked in initial deployments but complicates field repairs.

Material and Environmental Compatibility

Bracket material (aluminum, stainless steel, polymer composite) must match deployment location. Coastal, industrial, or chemical environments require corrosion-resistant coatings. Hardware degradation often causes system outages during critical incidents when mounting hardware corrodes silently.

Brand-Specific Mounting Interfaces

Leading manufacturers like Hikvision, Axis, and Hanwha offer proprietary quick-release or VESA-mount interfaces. Verify bracket compatibility with your camera housing before procurement. Generic brackets may require additional adapters that introduce compliance issues.

Installation and Retrofit Considerations

Corner mounts on existing structures demand proper anchoring analysis—hollow walls, composite panels, and masonry each require different fastening strategies. Plan for potential structural reinforcement, conduit runs, and power routing before on-site installation to avoid costly delays.

Technology Stack

The specs and acronyms that actually affect corner mounts performance.

Load Rating (lbs)

Maximum supported weight including camera, housing, lens, and accessories. Exceed this rating and bracket creep or vibration-induced failure occurs. Select 1.5–2× your total assembly weight for safety margin and long-term stability.

Tilt/Pan Range (degrees)

Adjustable brackets allow ±15–45° angle correction after installation. Fixed brackets lock angle at manufacture. Adjustable mounts add cost but reduce on-site troubleshooting if initial FOV estimates prove inaccurate.

VESA Compatibility

Standard 75×75 mm or 100×100 mm mounting holes align with industry camera housings. Confirm VESA pattern matches your bracket and camera base to avoid adapter chains that introduce play and vibration.

Cable Entry Points

Number, size, and location of conduit knockouts determine how many cables (power, Ethernet, auxiliary) can route through the bracket. Insufficient entries force external routing that complicates maintenance and increases environmental exposure.

Material & Coating

Aluminum with anodizing, galvanized steel, or stainless 304/316 for corrosion resistance. Anodized aluminum is cost-effective indoors; stainless or marine-grade coatings required for coastal/chemical environments. Powder coat thickness affects lifespan.

Vibration Damping

Elastomer pads or spring isolators reduce camera shake from structural vibration, wind sway, or HVAC movement. Critical for PTZ units or long-lens telephoto setups where micro-vibration degrades image sharpness during recording.

Typical Deployment Scenarios

Retail Store Hallway Intersection (3 corners)

Deploy three Axis compact fixed domes using 90° interior corner mounts at main corridor junctions. Each bracket handles ~2 lb fixed domes with cable routing through wall cavities. Tilt angles set to 45° to cover both hallway directions and sales-floor entry points. Total: 3 corner mounts, 3 cameras, single POE switch feed with inline power budgeting.

Parking Garage Perimeter Loop (8 corners)

Ring eight Hikvision turrets on heavy-duty stainless corner mounts at level transitions and ramp intersections. Each bracket rated 15+ lbs to handle turret + heater/wiper. Adjust tilt ±20° post-install to optimize dual-direction coverage. Conduit entry allows dual-run (power + data) through concrete columns. Plan PoE budget across two switches to avoid power starvation at far corners.

School Building Entrance Canopy (4 corners)

Mount four weatherproof boxes with adjustable angle brackets at canopy underside corners to monitor entry lanes and visitor drop-off zones. Use Hanwha or Vivotek brackets rated for wind loading; cable runs through structural conduit to central eave junction box. K-12 deployments require documented wind and seismic verification before installation approval.

Warehouse Loading Dock (2 corners)

Position two Speco Technologies PTZ domes on load-rated adjustable corner mounts at dock-corner vantage points for vehicle and personnel tracking. Brackets provide ±30° pan adjustment to reposition coverage as dock layout changes. Power and network run through cable tray along dock structure. Vibration damping critical—forklifts impact nearby surfaces.

Frequently Asked Questions

What is the difference between a corner mount and a wall bracket?

Corner mounts are engineered specifically for 90° or angled wall intersections, with cable routing and load ratings optimized for exposed corner positions. Wall brackets mount flush to single surfaces. Corner mounts accept angle adjustment and provide dual cable entry points to serve two adjacent coverage zones simultaneously.

Can I use a corner mount outdoors without a weatherproof housing?

Not recommended. Brackets themselves may be weather-sealed, but the bracket-to-camera interface creates water ingress risk. Always pair outdoor corner mounts with appropriate camera housings or turrets rated for your climate zone. Moisture at corner positions drains inward due to wind direction and gravity.

How do I calculate the correct load rating for my corner mount bracket?

Total weight = camera body + lens + housing (if used) + cable conduit weight. Select a bracket rated for 1.5–2× that total. For example, a 4 lb camera + 2 lb turret housing + 0.5 lb conduit = 6.5 lbs; choose a bracket rated ≥10 lbs. This margin prevents creep and vibration-induced loosening over months or years.

Do corner mounts work with PTZ cameras?

Yes, but require heavy-duty brackets with load ratings ≥15–20 lbs and vibration damping. PTZ motors and heater/wiper loads are significant. Verify the specific PTZ model's mounting footprint (VESA or proprietary) matches available bracket interfaces before purchase. Adjustable-angle corner mounts are ideal for PTZ, as they allow dual-axis field-of-view refinement.

What cable conduit sizes should I plan for when installing a corner mount?

Minimum ¾" conduit for single-run power + Ethernet. Dual-run installations (power + data separate, or power + aux sensor) require 1" or dual ¾" entries. Confirm bracket knockouts support your conduit size and seal fittings to prevent water migration into the bracket cavity during rain or high-pressure wash events.

Are corner mounts compatible with Hikvision, Axis, and Hanwha cameras interchangeably?

Not always. Each manufacturer uses proprietary VESA patterns or quick-release interfaces. Verify the bracket's VESA compatibility (e.g., 75×75 mm, 100×100 mm) or quick-release standard before purchase. Using an adapter plate to force incompatible brackets introduces play and vibration. Confirm compatibility with your specific camera model before ordering.
