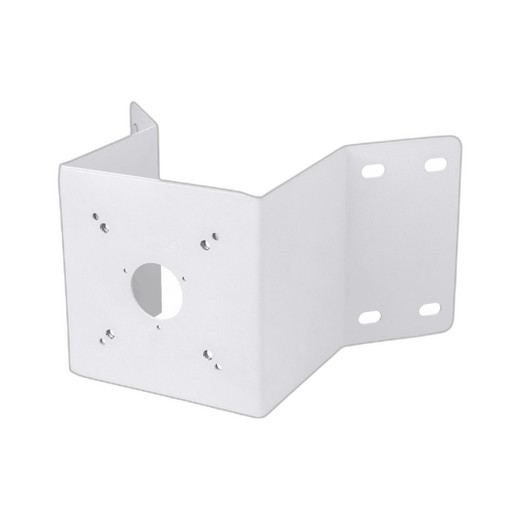

Vivotek AM-412 Corner Mount Adapter

Vivotek AM-412_V03 Corner Mount Adapter

Overview

The AM-412_V03 is a wall-mounted corner adapter engineered to position two Vivotek IB or MS series cameras at perpendicular angles from a single corner junction. This solves the blind-spot problem in tight corner installations — retail aisles, office hallway intersections, warehouse corner zones — where a single wall bracket leaves coverage gaps. SECC steel construction (white finish) and 2.2 kg mass provide rigid support without deflection under camera weight and vibration.

Compatibility

Compatible with 30+ Vivotek models across the IB and MS surveillance camera lines, including IB836B, IB8382, IB9360, IB9371, IB9381, IB9365, IB9367, IB9368, IB9380, IB9387, IB9388, IB9389, IB9391, MS8391, MS9390, IB8367A, IB8369A, IB8377, IB8379, TB9330, TB9331, MS9321, IB9383, IB9399. Verify your camera's suffix variant (E, H, T, EH, etc.) against the full compatibility list before ordering. Works as a junction point between wall mount brackets (e.g. AM-218) and junction boxes (e.g. AM-719) in modular Vivotek installations.

Installation Notes

Mounting surface must support the combined weight of the adapter (2.2 kg) plus two cameras. Wall anchors rated for concrete or drywall applications are required; masonry anchors recommended for concrete surfaces. Dual-camera configuration requires careful cable routing through the adapter body to avoid pinch points and maintain strain relief at camera connectors. Verify corner geometry before installation — sharp 90-degree corners work best; obtuse or acute corner installations may require shims.

What's in the Box

• 1x AM-412_V03 corner mount adapter (white SECC steel)
