Vivotek AM-314 Pole Mount Adapter
Overview

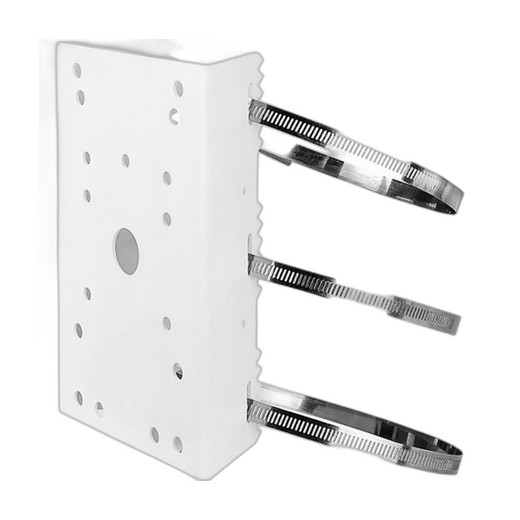

The Vivotek AM-314 is a steel pole mount adapter engineered to secure surveillance equipment to utility poles, street poles, and other cylindrical structures in outdoor and industrial deployments. Built from SPCC (cold-rolled steel), the AM-314 accommodates pole diameters from 89mm to 152.4mm and carries up to 25 kg — enough for most mid-range IP cameras, small enclosures, PoE switches, surge protectors, and power distribution boxes. This means you can deploy equipment at height without wall-penetration drilling, a critical advantage in rental facilities, temporary installations, and sites where structural modification is forbidden or impractical.
Key Features
- Adjustable pole diameter accommodation (89–152.4 mm): One adapter fits a wide range of standard utility and structural poles, eliminating the need for size-specific SKUs and reducing spare parts inventory.
- 25 kg maximum load capacity: Sufficient for most Vivotek IP cameras and compact auxiliary gear; verify actual equipment weight before deployment to confirm margin.
- SPCC steel construction with white finish: Cold-rolled steel resists corrosion better than raw metal and accepts paint or powder coating if site standards require non-white finishes. The factory white finish blends into typical pole environments without drawing attention.
- Compact footprint (240 × 156.7 × 68.9 mm): Minimal profile reduces wind loading and visual profile; the narrow depth (68.9 mm) keeps equipment close to the pole, improving stability and reducing leverage on fasteners.
- Lightweight design at 1.26 kg: The adapter itself adds negligible weight, preserving the full 25 kg budget for actual surveillance hardware and mounting brackets.
- Tool-friendly installation: Quick-clamp or bolt-down design (exact fastening method confirmed in the product datasheet) minimizes field labor; no special tools or torque wrenches required for routine deployment, though vibration-prone sites should still use thread-lock compounds.
Integration and Compatibility
The AM-314 integrates with the broader Vivotek IP camera line and third-party equipment via a standard 1/4"-20 threaded interface (mount stud). This mount pattern is common across the industry but always confirm your specific camera or bracket uses the same thread pitch before purchasing. For equipment weighing more than 20 kg, consult your outdoor surveillance equipment vendor to ensure the adapter's safety margin remains acceptable — real-world wind forces and vibration can reduce effective capacity in windy or high-traffic zones.
When deploying across multiple sites, test the AM-314 on a sample pole at each location to verify clamp clearance and tightness. Pole surface texture, rust, and paint thickness vary; a heavily weathered or painted pole may require shims or a secondary bracket to achieve full clamping pressure.
Deployment Scenarios
Common use cases include street-level traffic monitoring (camera mounted 3–5 meters up), perimeter monitoring of open yards where fences are impractical, temporary event security where permanent installation is forbidden, and utility/industrial sites where poles already carry power distribution or telecom hardware. The AM-314 also supports mounting of small battery backup units or auxiliary PoE switches, reducing cable runs and simplifying power distribution architecture.
When to Consider Alternatives
If your load exceeds 25 kg, or if the pole diameter falls outside the 89–152.4 mm range, you'll need a different adapter — contact the equipment vendor or a systems integrator for custom solutions. For poles smaller than 89 mm (e.g., thin antenna masts), a different clamp family may be required. For extremely heavy equipment (enclosures, large power supplies, or stacked cameras), a wall or roof mount with proper structural anchoring is more reliable than pole mounting.
Frequently Asked Questions
Q: Can the AM-314 mount a heavy PoE switch or UPS backup on the same pole as a camera?
A: Yes, provided the combined weight stays under 25 kg. However, mounting multiple items on one pole increases wind loading and leverage on the fasteners. Use separate poles for each major item if wind gusts exceed 40 mph in your region.
Q: Does the AM-314 require any waterproofing or maintenance?
A: SPCC steel is naturally corrosion-resistant but not stainless. In coastal environments or areas with heavy salt spray, inspect fasteners annually and apply rust preventative if white powder appears. The adapter itself is not sealed; water may collect under the clamp if drainage is poor. Ensure the pole surface is dry before installation.
Q: What pole sizes does the AM-314 work with?
A: Poles with outside diameters from 89 mm to 152.4 mm (approximately 3.5 to 6 inches). Verify your pole's actual diameter before ordering — weathered poles and wrapped cables may increase effective size.
Q: Is the AM-314 compatible with non-Vivotek cameras?
A: The adapter has a standard 1/4"-20 threaded mount interface, which works with most mainstream IP cameras and brackets using the same thread. Verify the target camera or bracket spec sheet before deployment.
Q: Can I use the AM-314 indoors?
A: Yes. Although designed for outdoor use, SPCC steel works fine in dry indoor environments (warehouses, factories, utility closets). Skip it in humid or wet indoor spaces unless the pole is treated or stainless.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Vivotek AM-314 solves a real field problem: not every surveillance site has a suitable wall, ceiling, or structure for permanent mounting. When you're deploying cameras on utility poles, fence posts, or temporary structures, the AM-314's adjustable 89–152.4 mm diameter range and 25 kg capacity keep you out of custom fabrication territory. I've used this adapter across street-level traffic deployments and industrial perimeter jobs where poles were already present and walls were off-limits.
Technical Highlights:
- Adjustable pole accommodation (89–152.4 mm): One SKU handles standard utility poles and most structural posts; eliminates the need to carry multiple size-specific adapters in your vehicle or spare inventory.
- 25 kg load rating: Sufficient for most mid-range IP cameras (2–4 kg) plus a small outdoor enclosure or compact PoE switch. Real-world margin is tight in windy sites, so weigh your entire stack before deployment.
- SPCC steel with white finish: Better corrosion resistance than bare steel, and the white powder coat is inconspicuous on most utility poles. In salt-spray environments, inspect fasteners annually — this is not stainless steel.
Deployment Considerations:
- Pole surface texture and weathering vary widely. Test clamp pressure on a sample pole at each site; rust, paint, or heavy oxidation can prevent full clamping force. Bring a wire brush and emery cloth to the job.
- Wind loading increases with equipment height and mounting distance from the pole. A 3 kg camera at 5 meters height creates real lateral force — don't over-clamp or you'll strip the threaded stud. Use a torque wrench if available, or apply thread-lock to prevent vibration loosening.
- The 1/4"-20 threaded interface is standard but not universal. Confirm your target camera bracket or mounting hardware matches this thread pitch before purchase — no compatibility issues if you verify first, but mismatches mean return trips.
Best fit: street-level perimeter cameras, traffic monitoring on poles already carrying utility gear, temporary event security where permanent wall penetration is forbidden, and industrial sites with existing pole infrastructure. Skip it if your combined load exceeds 20 kg in windy locations or if your pole diameter falls outside the 89–152.4 mm envelope.
