IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Vivotek

SKU: AE-23E-v2

Vivotek AE-23E-V2 Outdoor Weatherproof Heated PoE Housing

IP68 + IK10 outdoor housing with auto-heated window for year-round PoE cameras
- IP68 waterproof and IK10 vandal-proof cast aluminum protects in extreme conditions
- 10W window heater + cooling fan auto-activate between –20°C to 65°C operating range
- PoE 802.3bt single-cable power (50–57VDC) with wall, ceiling, corner, or pedestal mount
Special Order · Ships in 2-3 weeks

$588.00 $420.99 Save $167.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AE-23L

Vivotek AE-23L Outdoor Camera Housing

IP68 cast aluminum housing with IK10 vandal protection for outdoor cameras
- IP68 waterproof rated for complete dust and water immersion protection
- IK10 impact-rated cast aluminum resists vandalism in high-risk deployments
- Integrated heater and dual fans maintain operation from -20°C to 65°C
Special Order · Ships in 2-3 weeks

$604.00 $432.99 Save $171.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AE-243-wBS

Vivotek AE-243-WBS Heated Blower Outdoor IR Housing

Heated outdoor housing with 6W IR, IP68/IK10 rated for -20°C to 65°C
- Auto-switching heater and fan maintain lens clarity across extreme temperature swings
- 6W fixed IR LED delivers 50m night vision range at 25° angle for perimeter coverage
- IP68 waterproof and IK10 impact-rated cast aluminum housing fits all Vivotek box cameras
Special Order · Ships in 2-3 weeks

$502.00 $359.99 Save $142.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AE-244-wBS

Vivotek AE-244-WBS Heated Blower Outdoor IR Housing

Outdoor IR housing with heated blower for Vivotek box cameras, -20°C to 65°C
- IP68 waterproof, IK10 vandal-proof cast aluminum withstands harsh weather
- Auto-heated window and cooling fan maintain lens clarity in extreme temps
- 50m IR LED night vision with PoE and DC 12V dual power connectivity
Special Order · Ships in 2-3 weeks

$593.00 $424.99 Save $168.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AE-510

Vivotek AE-510 Stainless Steel Camera Housing

IP68 stainless steel housing for cameras in coastal and industrial sites
- IP68 rating with stainless steel construction resists salt spray and corrosion
- Integrated window heater and thermal fan manage -20°C to 65°C temperature range
- Includes sunshield, heater, and fan; AC24V powered for standard surveillance systems
Special Order · Ships in 2-3 weeks

$1,624.99 $1,551.99 Save $73.00

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AE-510-I

Vivotek AE-510-I Stainless Steel Camera Enclosure

IP68 stainless steel enclosure with active thermal control for coastal & industrial sites
- 12W VAIR system with heater and cooling fan maintains -20°C to +50°C operation
- Stainless steel construction resists salt spray, corrosion, and chemical vapors
- IP68 sealing and integrated sunshield protect camera from dust, water, and glare
Special Order · Ships in 2-3 weeks

$2,325.99 $2,220.99 Save $105.00

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AI-104-010

Vivotek AI-104-010 External Infrared LED Illuminator

850nm IR illuminator with 100m range and 10° beam for night surveillance
- 100-meter illumination reach with tight 10-degree beam angle for focused coverage
- Dual power input (24VAC or 12-24VDC) with IP66 weatherproof and IK10 impact rating
- 850nm invisible spectrum operates -40°C to 50°C without visible light spillover
Special Order · Ships in 2-3 weeks

$444.99 $424.99 Save $20.00

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AI-104-035

Vivotek AI-104-035 850nm IR LED Illuminator

850nm IR illuminator with 25m range and 35° beam for night surveillance
- 25-meter effective range with 35-degree beam angle for focused coverage
- IP66 weatherproof and IK10 vandal-resistant housing for outdoor deployment
- Dual power input (24VAC or 12-24VDC) with -40°C to 50°C operating range
Special Order · Ships in 2-3 weeks

$444.99 $424.99 Save $20.00

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AI-106

Vivotek AI-106 100m Adjustable IR Illuminator

100m IR illuminator with adjustable 10–40° beam for night surveillance
- Dual 850nm high-power LEDs reach 40–100m in total darkness
- Adjustable beam angle via DIP switch or RS-485 for customized coverage
- IP67 weatherproof, 6W PoE powered, operates -40°C to 50°C
Special Order · Ships in 2-3 weeks

$213.00 $152.99 Save $60.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-237

Vivotek AL-237 4.1-9mm Varifocal Lens F1.6

4.1–9mm varifocal lens F1.6 with DC auto-iris for Vivotek IP cameras
- 4.1–9mm varifocal range adjusts field of view for retail, perimeter, or wide coverage
- F1.6 bright aperture maximizes light transmission in low-light conditions
- DC auto-iris automatically regulates exposure across changing ambient light levels
Special Order · Ships in 2-3 weeks

$346.00 $247.99 Save $98.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-23A

Vivotek AL-23A 2.7-13.5mm Varifocal Lens F1.6

2.7-13.5mm varifocal lens with F1.6 aperture for low-light IP surveillance
- DC auto-iris maintains consistent exposure across bright daylight to dim conditions
- Varifocal range eliminates need for lens swap; adjust field of view in the field
- Compatible with Vivotek IP cameras and systems with DC auto-iris connectors
Special Order · Ships in 2-3 weeks

$60.00 $42.99 Save $17.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-242

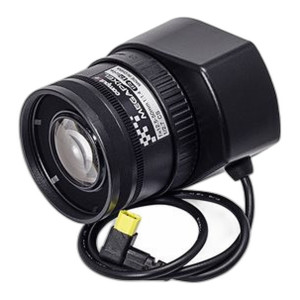

Vivotek AL-242 12.5-50mm Varifocal Lens F1.4 P-Iris

4x zoom varifocal lens with F1.4 aperture and P-Iris for low-light surveillance
- 12.5-50mm focal length captures wide context and detailed close-ups without zoom quality loss
- F1.4 bright aperture maximizes light gathering in dim or inconsistent lighting conditions
- P-Iris motorized control automatically optimizes depth-of-field and contrast across zoom range
Special Order · Ships in 2-3 weeks

$546.00 $390.99 Save $155.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-243

Vivotek AL-243 7-22mm Varifocal P-Iris Lens

7-22mm varifocal lens with F1.4 aperture and P-Iris for Vivotek cameras
- 7-22mm varifocal range covers multi-distance scenes without repositioning
- F1.4 aperture with motorized P-Iris for low-light performance and depth control
- CS-mount design for direct compatibility with IP8166 and IP9171-HP models
Special Order · Ships in 2-3 weeks

$142.00 $101.99 Save $40.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-246

Vivotek AL-246 2.8-8.5mm Varifocal Lens with P-Iris

2.8-8.5mm varifocal lens with F1.2 aperture and P-Iris control
- F1.2 aperture maximizes light for low-light surveillance performance
- P-Iris motorized control optimizes depth of field across focal range
- Vivotek network camera compatible with high-resolution sensor support
Special Order · Ships in 2-3 weeks

$280.00 $200.99 Save $79.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-247

Vivotek AL-247 2.8-8mm Varifocal Lens, F1.2 Aperture, P-Iris 1/3" Sensor

Varifocal 2.8-8mm lens with F1.2 aperture and P-Iris for 1/3" sensors
- 2.8-8mm varifocal range captures wide to medium telephoto scenes without camera moves
- F1.2 aperture maximizes light capture for clear imaging in low and variable light
- P-Iris motorized control auto-adjusts aperture for consistent contrast and sharpness
Special Order · Ships in 2-3 weeks

$246.00 $175.99 Save $70.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-248

Vivotek AL-248 12-50mm Telephoto Varifocal Lens F1.8

12-50mm telephoto varifocal lens with F1.8 aperture for long-range surveillance
- 4.2x optical zoom range with F1.8 aperture maximizes light capture in low-light conditions
- P-Iris motorized control maintains resolution and contrast across focal length changes
- CS-Mount design fits Vivotek IP816A and IP9100-series P-Iris camera systems
Special Order · Ships in 2-3 weeks

$608.00 $434.99 Save $173.01

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Vivotek AE-23E-V2 Outdoor Weatherproof Heated PoE Housing

Vivotek AE-23L Outdoor Camera Housing

Vivotek AE-243-WBS Heated Blower Outdoor IR Housing

Vivotek AE-244-WBS Heated Blower Outdoor IR Housing

Vivotek AE-510 Stainless Steel Camera Housing

Vivotek AE-510-I Stainless Steel Camera Enclosure

Vivotek AI-104-010 External Infrared LED Illuminator

Vivotek AI-104-035 850nm IR LED Illuminator

Vivotek AI-106 100m Adjustable IR Illuminator

Vivotek AL-237 4.1-9mm Varifocal Lens F1.6

Vivotek AL-23A 2.7-13.5mm Varifocal Lens F1.6

Vivotek AL-242 12.5-50mm Varifocal Lens F1.4 P-Iris

Vivotek AL-243 7-22mm Varifocal P-Iris Lens

Vivotek AL-246 2.8-8.5mm Varifocal Lens with P-Iris

Vivotek AL-247 2.8-8mm Varifocal Lens, F1.2 Aperture, P-Iris 1/3" Sensor

Vivotek AL-248 12-50mm Telephoto Varifocal Lens F1.8

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
