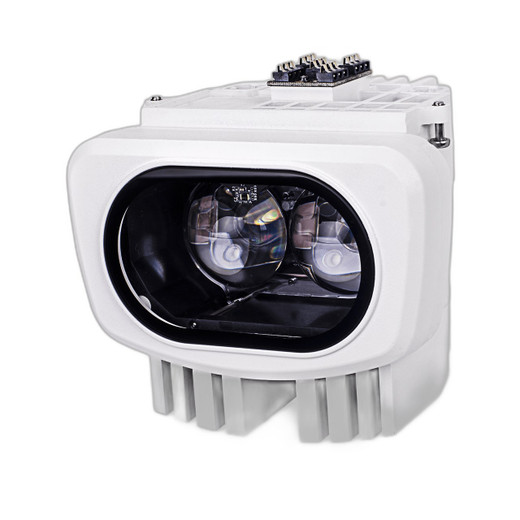

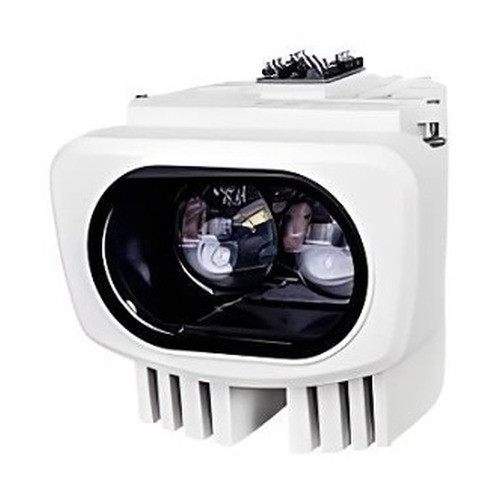

Vivotek AI-106 100m Adjustable IR Illuminator

Vivotek AI-106 100m Adjustable IR Illuminator

The Vivotek AI-106 is a professional-grade infrared illuminator engineered to extend night vision surveillance capabilities to 100 meters in complete darkness. Featuring dual high-power LEDs operating at 850nm wavelength, this device delivers consistent, long-range illumination for outdoor security applications requiring extended coverage areas. The adjustable beam angle (10° to 40°) enables operators to customize illumination patterns from wide general coverage to narrow targeted beams, adapting to specific site requirements without repositioning hardware.

Key Features

• 100-meter illumination range for comprehensive nighttime surveillance
• Adjustable beam angle (10° to 40°) via DIP switch or RS-485 control
• Dual high-power LED array at 850nm infrared wavelength
• Smart light sensor with adjustable sensitivity (100 Lux, RS-485 configurable)
• Low power consumption at 6W for efficient operation
• IP67-rated weatherproof construction for harsh outdoor environments
• Wide operating temperature range (-40°C to 50°C)
• PoE-powered via ITB Touch Board connector
• Compatible with multiple Vivotek enclosure models (AE-23A through AE-23F)

Technical Specifications

• Model: AI-106
• Part Number: 900044200G
• Illumination Distance: 40–100 meters
• Beam Pattern: Circular with adjustable horizontal angle
• LED Configuration: 2x high-power LEDs
• Wavelength: 850nm (near-infrared)
• Power Consumption: 6W
• Power Type: PoE via ITB Touch Board
• Dimensions: 135 × 106 × 111 mm
• Weight: 1.2 kg
• Control Interface: Digital input (IR ON/OFF), digital output (light sensor trigger)
• Operating Temperature: -40°C to 50°C
• Storage Temperature: -40°C to 70°C

Applications

Ideal for perimeter security, large outdoor facilities, parking areas, industrial sites, and remote surveillance locations where extended nighttime visibility is critical. The adjustable beam angle makes it suitable for both wide-area coverage and focused monitoring of specific access points or restricted zones.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AI-106 stands out in the professional surveillance market for its flexible beam control and exceptional range. The ability to adjust the horizontal beam angle from 10° to 40° via DIP switch or networked RS-485 control eliminates the need for multiple fixed illuminators, reducing installation complexity and total system cost. The 850nm wavelength is optimal for CCTV applications, providing sufficient range while remaining invisible to the human eye—a critical security advantage in sensitive installations.

Power efficiency is notably addressed at 6W consumption, making the device practical for large deployments where cumulative power demand matters. PoE integration simplifies cabling and reduces infrastructure requirements. The light sensor trigger functionality enables intelligent, daylight-responsive operation, automatically deactivating illumination during daytime to extend LED lifespan and reduce power waste. Robust construction rated for -40°C to 50°C operation ensures reliable performance across diverse climates, from arctic to tropical environments.
