IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Hanwha

SKU: SBP-302CM-36

Hanwha SBP-302CM-36 Extension Pipe

36-inch aluminum/steel extension pipe for all Hanwha hanging mounts
- 36-inch length extends camera reach for optimal angles and sight lines
- Aluminum and steel construction withstands indoor and outdoor conditions
- Compatible with all Hanwha Hanging Mounts for flexible system expansion
Special Order · Ships in 2-3 weeks

$105.00 $70.99 Save $34.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-302CMA

Hanwha SBP-302CMA Pendant Mount Single Joist Adapter

Single joist pendant adapter for Hanwha ceiling cameras
- Direct-mount design for single joist ceilings eliminates field engineering
- Corrosion-resistant construction rated for indoor and outdoor use
- Works exclusively with Hanwha pendant-mount camera systems
In stock · Ships same business day

$30.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-35PVMB

Hanwha SBP-35PVMB Telescopic Pendant Mount

Telescopic pendant mount for PVM monitors, 3–5ft range, 360° rotation
- Extends 3ft to 5ft with full 360° rotation for flexible ceiling-height installations
- ±25° tilt adjustment optimizes viewing angles for surveillance positioning
- Supports 75x75mm and 100x100mm VESA patterns in aluminum/steel construction
Special Order · Ships in 2-3 weeks

$160.00 $119.99 Save $40.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBV-116B

Hanwha SBV-116B Dome Back Box

Dome back box for XNV-6011 and SNV-6013 ceiling mounting
- Contoured dome form factor eliminates gaps between camera and ceiling
- Flexible knockout ports route PoE and auxiliary cables without extra drilling
- High-quality construction resists corrosion and vibration in high-traffic areas
In stock · Ships same business day

$49.00 $32.99 Save $16.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBV-215WCW

Hanwha SBV-215WCW White Weather Cap

White polycarbonate weather cap for Hanwha cameras, -40°C to +60°C
- UV-resistant polycarbonate with heat-reflective white finish reduces sensor heat
- Sealed design blocks rain, snow, and salt spray without vignetting the lens
- Mounts securely with included hardware kit; preserves full field of view
In stock · Ships same business day

$40.00 $26.99 Save $13.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-5M3700P

Hanwha SLA-5M3700P 5MP Lens Module

5MP lens module with 97.5° FOV for PNM-9320VQP platform
- 5MP 1/1.8" CMOS sensor captures detail for facial ID and plate reads
- 3.7mm fixed lens delivers 97.5° horizontal coverage for indoor spaces
- Full day/night capability handles lighting transitions without adjustment
In stock · Ships same business day

$250.00 $187.99 Save $62.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: TA-1

Hanwha TA-1 On-wall Backbox Accessory

Weatherproof backbox for TCIS intercoms with IK10 impact resistance
- IP66-rated protection against dust and high-pressure water jets
- Aerospace-grade aluminum alloy construction resists corrosion outdoors
- IK10 impact rating withstands vandalism and accidental strikes
Special Order · Ships in 2-3 weeks

$245.00 $164.99 Save $80.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: CBD-MINI

Hikvision CBD-MINI Dome Camera Junction Box

Sealed aluminum junction box for Hikvision dome cameras in wet outdoor environments
- Waterproof gasket-sealed enclosure protects cable terminations from moisture and corrosion
- Aluminum alloy housing resists salt spray and temperature cycling in coastal or industrial settings
- Wall-mounted design centralizes power and signal connections without need for separate brackets
In stock · Ships same business day

$39.00 $28.99 Save $10.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: CBS

Hikvision CBS Junction Box for Dome Camera, White

IP67 aluminum junction box for dome camera cable protection outdoors
- IP67 rating handles dust, rain, and temporary water submersion
- Aluminum alloy resists corrosion in coastal and high-humidity settings
- Integrated waterproof gasket seals cable entry points against moisture
In stock · Ships same business day

$41.00 $29.99 Save $11.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: CM1

Hikvision CM1 Corner Mount, White

Stainless steel corner mount for dual-surface surveillance coverage
- 22 lbs capacity handles fixed cameras and compact PTZ units
- Stainless steel resists corrosion in outdoor, high-moisture environments
- Waterproof gasket seals fastener penetrations against rain and moisture
In stock · Ships same business day

$61.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: CPMPE

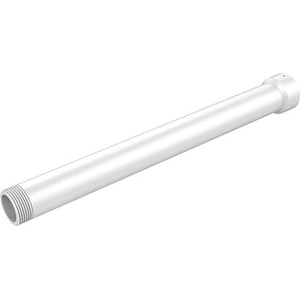

Hikvision CPMPE Extendable Pole for Pendant Mount

Extendable aluminum pole for CPM-S and CPM-L pendant mounts
- Adjustable length reaches varied ceiling heights without remounting hardware
- Aluminum alloy construction resists corrosion in indoor and outdoor use
- Lightweight at 2.31 lbs reduces installation strain and ceiling load
In stock · Ships same business day

$41.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: HV3816D-8MPIR

Hikvision HV3816D-8MPIR 8MP IR Vari-Focal Lens

8MP vari-focal IR lens, 3.8–16mm with DC auto iris for day/night
- 3.8–16mm focal length captures 123.9° wide to 33.5° telephoto on 1/1.8"
- DC auto iris maintains exposure across changing light without manual adjustment
- Aspherical optics reduce distortion for sharp, uniform images at sensor edges
Special Order · Ships in 2-3 weeks

$504.00 $313.99 Save $190.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: PC-DE4A

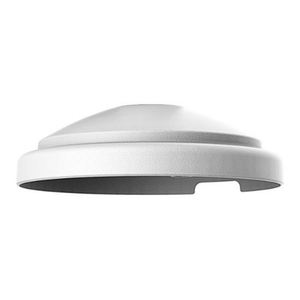

Hikvision PC-DE4A Pendant Cap for DS-2DE4A PTZ Cameras

Aluminum pendant cap for DS-2DE4A PTZ cameras with water-resistant design
- Aluminum alloy construction resists corrosion and supports ceiling-mounted PTZ weight
- Water-resistant sealed design protects mounting hardware in covered outdoor areas
- White finish blends discreetly with ceiling tiles and indoor environments
In stock · Ships same business day

$35.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: PM1

Hikvision PM1 Vertical Pole Mount, White

Stainless steel vertical pole mount, 22 lbs capacity, outdoor-rated
- Stainless steel construction resists rust and corrosion in wet climates
- Waterproof gasket seals pole interface against moisture and salt spray
- Supports up to 22 lbs; fits standard pole diameters without custom drilling
In stock · Ships same business day

$54.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: WBS

Hikvision WBS Wall Mount Box Camera - Short, White

Compact white wall bracket for box and bullet cameras, full pan-tilt
- Aluminum alloy construction rated for indoor and outdoor environments
- Full pan and tilt adjustability for precise camera positioning and coverage
- Rear cable entry design keeps wiring clean and out of sight
Special Order · Ships in 2-3 weeks

$26.99

Add to Cart
The item has been added
Compare

Out of stock
i-PRO

SKU: B-MD-WM

i-PRO B-MD-WM Mini Dome Wall Mount

Compact wall mount for mini dome cameras in indoor spaces
- Wall-mounted bracket fits mini dome form factor with minimal profile
- IK10-rated housing withstands impact in high-traffic indoor areas
- NEMA 4X compliant construction for reliable performance across environments
Special Order · Ships in 2-3 weeks

$51.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hanwha SBP-302CM-36 Extension Pipe

Hanwha SBP-302CMA Pendant Mount Single Joist Adapter

Hanwha SBP-35PVMB Telescopic Pendant Mount

Hanwha SBV-116B Dome Back Box

Hanwha SBV-215WCW White Weather Cap

Hanwha SLA-5M3700P 5MP Lens Module

Hanwha TA-1 On-wall Backbox Accessory

Hikvision CBD-MINI Dome Camera Junction Box

Hikvision CBS Junction Box for Dome Camera, White

Hikvision CM1 Corner Mount, White

Hikvision CPMPE Extendable Pole for Pendant Mount

Hikvision HV3816D-8MPIR 8MP IR Vari-Focal Lens

Hikvision PC-DE4A Pendant Cap for DS-2DE4A PTZ Cameras

Hikvision PM1 Vertical Pole Mount, White

Hikvision WBS Wall Mount Box Camera - Short, White

i-PRO B-MD-WM Mini Dome Wall Mount

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
