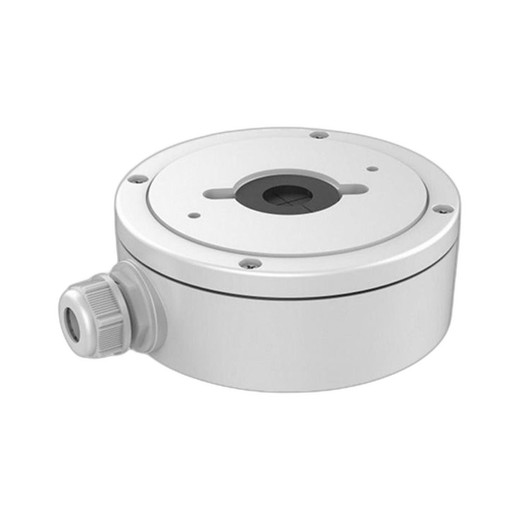

Hikvision CBD-MINI Dome Camera Junction Box

Hikvision CBD-MINI Dome Camera Junction Box

The CBD-MINI is a compact wall-mounted junction box engineered specifically for Hikvision dome camera installations where cable management and environmental sealing matter. Built from aluminum alloy with a sealed enclosure, it protects cabling and connectors in outdoor, wet, and corrosive environments — eliminating exposed terminations that degrade under rain, salt spray, or UV exposure.

Key Features

• Aluminum Alloy Housing – Resists corrosion and temperature cycling, which means your cable terminations stay protected for years rather than months in coastal or industrial settings.
• Waterproof Sealed Enclosure – The gasket-sealed design stops water ingress at the connection point, preventing short circuits and premature connector failure that typically occur when moisture reaches unshielded terminals.
• Included Waterproof Gasket – Pre-supplied gasket ensures you don't have to source a separate seal; it's matched to the enclosure geometry for reliable sealing on first install.
• Wall-Mounted Installation – Direct wall attachment with structural support for the combined weight of the camera and accessories, so you don't need a separate bracket assembly.
• Hikvision Dome Camera Compatibility – Purpose-built for Hikvision dome cameras, meaning connector layouts and mounting points align without adapters or re-termination.
• Cable Organization – Centralizes power and signal terminations at a single junction point, reducing cable runs and visible tangled wiring that customers and auditors notice.

Integration & Compatibility

The CBD-MINI is designed to integrate with outdoor dome camera deployments across the Hikvision line. Wall mounting requires a surface capable of supporting at least three times the combined weight of the camera and any auxiliary equipment (heaters, wipers, zoom drives). For multi-camera surveillance networks, the junction box centralizes cabling and simplifies troubleshooting — a single point to inspect or reconfigure rather than chasing individual camera cables across a roofline or pole.

Deployment Scenarios

• Building Perimeter Security – Organize cabling at roofline or eaves without exposed connectors subject to weather damage.
• Retail & Industrial Facilities – Keep junction points sealed and organized in loading docks, warehouse exteriors, or high-vibration environments.
• Municipal & Traffic Deployments – Protect terminations on pole-mounted cameras where salt spray, freeze-thaw cycles, or coastal humidity accelerate corrosion.
• Multi-Camera Networks – Consolidate power and signal routing to reduce cable clutter and speed installation on large surveillance projects.

What's in the Box

• 1 x Hikvision CBD-MINI Dome Camera Junction Box (White)
• 1 x Waterproof Gasket

Frequently Asked Questions

Q: Is the CBD-MINI rated for outdoor use?

A: Yes. The aluminum alloy construction and waterproof gasket design make it suitable for outdoor installations. The sealed enclosure protects cable terminations from rain, humidity, and salt spray in coastal or high-moisture environments.

Q: What weight can the CBD-MINI support when wall-mounted?

A: The mounting surface must be capable of supporting at least three times the combined weight of the camera and any accessories (such as heater, wiper, or zoom module). Verify your wall substrate can handle this load before installation.

Q: Can I use the CBD-MINI with non-Hikvision dome cameras?

A: The CBD-MINI is purpose-built for Hikvision dome cameras. Connector layouts and mounting points are optimized for Hikvision models. Use with other brands may require adapters or modifications not covered by the design.

Q: Is the waterproof gasket replaceable?

A: Yes. The gasket is included and removable, so you can replace it if it degrades over time. Gasket replacement extends the life of the junction box in high-UV or extreme-temperature deployments.

Q: Does the CBD-MINI come with mounting hardware?

A: The junction box is designed for wall mounting. Verify that your wall material and fasteners are appropriate for the load. Consult the technical datasheet for specific mounting guidance based on your substrate type.

Q: How does the CBD-MINI improve installation time?

A: By consolidating all cable terminations at a single sealed junction point, you eliminate the need to terminate connections at multiple locations. This reduces installation labor and simplifies cable routing during commissioning and troubleshooting.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CBD-MINI hits a real pain point in outdoor dome deployments: exposed cable terminations. I've seen too many field installations where engineers save labor by terminating power and signal outside the camera housing, thinking it's temporary. Water gets in, corrosion sets in, and six months later you're replacing connectors or cameras. The CBD-MINI forces a better practice — it's a sealed junction point that keeps moisture and salt spray away from the actual terminations, and the aluminum alloy won't rust under UV or in coastal salt air.

Technical Highlights:

• Aluminum Alloy + Waterproof Gasket: This combination delivers corrosion resistance and moisture sealing at a price point that doesn't require a custom enclosure. Real-world benefit: eliminates the top failure mode in outdoor dome installations — corroded connectors.
• Wall-Mounted Load Rating (3x Combined Weight): Most installers underestimate the stress on a junction box from a PTZ dome or a camera with heater and wiper. The 3x multiplier is conservative and safe, which means you won't have the box pull away from the wall six months into a harsh-weather deployment.
• Included Gasket: Gasket quality is the difference between a sealed enclosure that lasts five years and one that fails in two. Hikvision supplies it matched to the enclosure, so you're not sourcing a generic replacement that doesn't seat properly.

Deployment Considerations:

• The CBD-MINI is Hikvision-specific. If your network is mixed-brand dome cameras, you'll need a different solution or accept that you're only sealing Hikvision terminations.
• Wall substrate matters. Concrete and steel are fine. Thin metal siding or composite panels that can't handle 3x the camera weight will fail. Inspect your mounting surface before installation.
• In extreme cold (-40°C or below), gasket material can lose flexibility. This is rare in most climates, but spec it out if you're deploying in arctic or high-altitude regions.

The CBD-MINI makes sense on every outdoor Hikvision dome installation where weather exposure is a factor — perimeter walls, parking structures, coastal facilities, or industrial yards with moisture. It's not glamorous, but it's the difference between a network that degrades slowly and one that holds up for five years without connector replacement.
