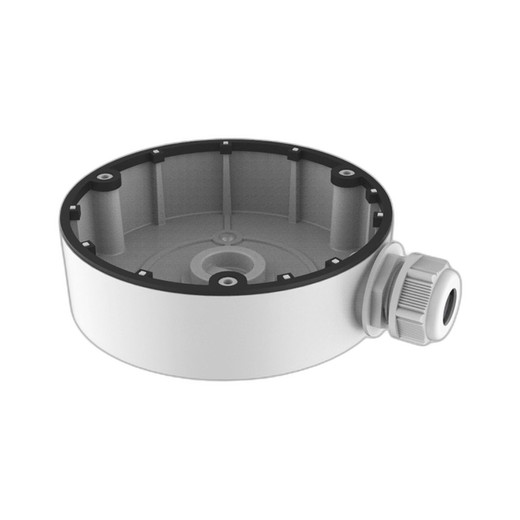

Hikvision CB130T Dome Camera Junction Box

Hikvision CB130T Dome Camera Junction Box

The Hikvision CB130T is a junction box engineered to protect cable terminations and consolidate wiring runs in dome camera installations. Built from aluminum alloy with an IP66 environmental rating, it delivers robust protection against dust and direct water spray — critical for rooftop, exterior wall, and exposed mounting scenarios where cabling vulnerability can compromise system reliability.

Key Features

• Aluminum alloy construction: Resists corrosion in outdoor and industrial environments, reducing replacement cycles and maintenance cost on multi-year deployments.
• IP66 waterproof rating: Blocks dust ingress and direct rain jets. Not suitable for submersion; if you need underwater enclosures, specify IP67 or higher. For most rooftop and wall-mount scenarios, IP66 is sufficient.
• Gasket-sealed design: Included gasket ensures a weather-tight seal around cable entries, preventing moisture from wicking along power and signal lines into the camera or recorder.
• Interchangeable bottom cover: Allows you to adapt cable entry configuration without removing the box or breaking the environmental seal — saves labor on field modifications.
• Surface-mounted installation: No wall penetrations required. Eliminates cutting and patching on finished surfaces, reducing installation time and structural compromise on facades or metal panels.
• White finish: Blends with standard building exteriors and ceiling mounts. If your aesthetic or environment requires a different finish, confirm availability with your vendor before specifying.

Integration & Compatibility

The CB130T is designed as a passive enclosure and works with any Hikvision dome camera mounting system. It consolidates camera power, network, and alarm wiring into a single weatherproof junction point, reducing the number of individual conduit runs and simplifying post-installation cable management. Verify mounting surface load capacity — the box plus camera and bracket assembly should not exceed three times the design load of your mounting surface.

What's in the Box

• 1 × Hikvision CB130T Dome Camera Junction Box
• 1 × Interchangeable Bottom Waterproof Cover
• 1 × Waterproof Gasket

When to Choose a Different Approach

If your installation requires full submersion (pool-side or underwater) or sustained high-pressure spray, specify an IP67-rated junction box instead. For indoor ceiling mounts where environmental protection is minimal, a standard electrical box reduces cost without sacrificing functionality. If you need integrated cable strain relief or surge protection, consider sourcing a complementary accessory or grounding kit separately.

Frequently Asked Questions

Q: Can I use the CB130T indoors?

A: Yes. Although designed for outdoor durability, the CB130T works indoors as a cable management enclosure. The IP66 rating simply provides extra protection you may not need in a climate-controlled ceiling void.

Q: What's the difference between IP66 and IP67?

A: IP66 protects against dust and water jets from any angle. IP67 adds temporary submersion up to 1 meter for 30 minutes. If your dome is mounted in a location prone to standing water or wash-down spray, IP67 is safer. CB130T is IP66.

Q: Does the CB130T come with mounting hardware?

A: The box includes the enclosure, cover, and gasket. Confirm mounting bracket and fastener requirements with your installation plan; hardware varies by wall type and load.

Q: Is the gasket replaceable?

A: Yes. The gasket is included and can be replaced if it degrades over time. Keep spares on hand for long-term outdoor deployments in harsh climates.

Q: How many cables can I route through the CB130T?

A: Capacity depends on cable diameter and entry hole configuration. The interchangeable cover allows you to customize entry points. Plan cable runs during design to avoid overcrowding and ensure gasket compression.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CB130T solves a real problem on outdoor dome installations: exposed cabling degrades fast. Aluminum bodies resist rust, but IP66 sealing on the junction box itself keeps moisture out of the termination points where corrosion and signal loss start. I spec this whenever a dome sits on a rooftop or exterior wall—it's cheap insurance against water tracking into connectors.

Technical Highlights:

• IP66 rating with gasket seal: Blocks direct rain and dust jets. On high-spray environments (industrial wash bays, carwashes), confirm IP67 availability instead. IP66 handles standard outdoor weather.
• Aluminum alloy body: Won't corrode like painted steel in salt air or high-humidity zones. Aluminum also dissipates heat if power supplies or PoE equipment generate warmth inside the box.
• Interchangeable bottom cover: Lets you customize cable entry holes without cracking the seal. Saves a field service visit if your cable count or gauge changes post-installation.

Deployment Considerations:

• Verify mounting surface can support three times the combined weight of the CB130T, camera, bracket, and lens. Aluminum reduces weight vs. steel, but oversized domes on weak brick or composite panels are a real risk.
• Gasket compression is critical—over-tightening fasteners can crack the cover. Under-tightening leaves gaps. Test with water spray before final acceptance.

Install this on any rooftop dome or exterior wall-mount scenario where cable exposure is unavoidable. Pairs well with dome camera installations and standard cable management practices. Reduces field callbacks from water intrusion—that's the real win.
