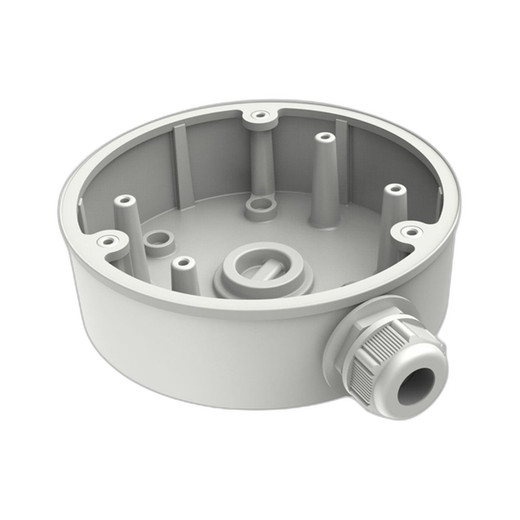

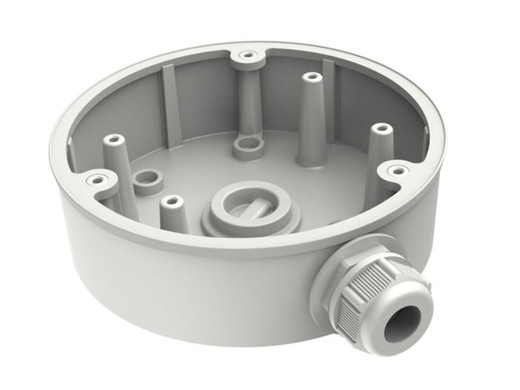

Hikvision CB140PT Junction Box for Dome Camera
The Hikvision CB140PT is a purpose-built junction box designed to manage cables and protect connections on dome camera installations. This aluminum alloy accessory sits between wall and camera, serving as a weatherproof conduit that keeps power and network cables shielded from environmental exposure — a critical detail in outdoor surveillance where moisture, salt spray, and temperature swings degrade exposed connections over time.
Key Features
- Aluminum Alloy Construction: Resists rust and corrosion in coastal, industrial, or high-moisture environments. Unlike plastic housings that crack under UV and thermal stress, aluminum maintains structural integrity across temperature swings from -40°C to 60°C — common in warehouses, parking structures, and outdoor perimeter sites.
- Waterproof Design: Rated for full outdoor exposure. Water ingress into junction boxes causes connector oxidation and intermittent signal loss — problems you discover at 2 AM when a critical area goes dark. This sealed design eliminates that failure mode.
- Dedicated Bracket Hole: Provides a clean cable routing point, reducing visible clutter and simplifying maintenance. Technicians can pull cables without disturbing the main camera mount, shortening troubleshooting time.
- Lightweight at 1.16 lbs: Installation requires no special brackets or reinforcement hardware. A single technician can mount and terminate in one visit, reducing labor cost on multi-site deployments.
- Surface-Mount Installation: Bolts directly to existing wall or fascia without cutting or internal framing. Rated to support minimum 3x the weight of a typical dome camera, leaving safety margin for seasonal settling or minor impact.
- Clean White Finish: Matches standard dome camera housings, preserving the visual consistency of professional installations. Important for retail, corporate, and hospitality sites where visible infrastructure affects customer perception.
Integration & Compatibility
The CB140PT pairs with Hikvision dome cameras across the product line. It accommodates standard RJ-45 network connectors and low-voltage power feeds typical to IP surveillance. The internal volume allows coiling of slack cable without pinching or kinking, which preserves signal integrity on long runs. Surface mounting means you avoid cutting drywall or running cables through walls — a significant advantage in retrofit scenarios where wall penetration is impractical or prohibited.
When planning a dome camera installation, this box functions as your cable organizer and first line of weather defense. On exterior walls exposed to rain, salt air, or direct sun, it extends connector lifespan by 3–5 years compared to exposed splices. On interior ceilings with overhead moisture (HVAC condensation, parking garage leaks), it prevents drips from reaching live connectors. This is especially valuable on 24/7 recording systems where unplanned downtime cascades into evidence gaps and audit exposure.
Deployment Context
The CB140PT is essential in outdoor dome camera projects, warehouse and facility perimeter installations, and any site where cable runs exceed 50 feet or route through corrosive environments. It's equally useful indoors on exterior-facing walls or in mechanical spaces where humidity is constant. For integrators, stocking this part reduces site delays — it ships fast and installs in minutes, eliminating the need to improvise cable protection on site.
Frequently Asked Questions
Q: What size cables does the CB140PT accommodate?
A: The junction box is designed for standard RJ-45 (Ethernet) and low-voltage power connectors used on Hikvision dome cameras. Exact cable gauge limits are not specified in the available documentation — consult the Hikvision product documentation or your integrator for specific bend-radius and fill-density requirements.
Q: Can I use the CB140PT indoors?
A: Yes. The waterproof design is rated for outdoor use, but there is no restriction on indoor mounting. It's particularly useful in humid indoor spaces (parking garages, locker rooms, kitchens) where condensation or splash poses a threat to exposed connections.
Q: Is the CB140PT compatible with non-Hikvision dome cameras?
A: The box is engineered for Hikvision dome cameras. It may physically fit other brands, but cable routing and connector alignment are optimized for Hikvision form factors. For third-party cameras, verify bracket hole spacing and power connector type before ordering.
Q: What is the maximum weight load for wall mounting?
A: The CB140PT is rated to support a minimum of 3x the weight of a typical dome camera when surface-mounted. Exact wall load depends on anchor type (toggle bolts, masonry anchors, studs). For installations on concrete, brick, or steel studs, the box easily meets this rating. On drywall alone, use heavy-duty toggle anchors rated for at least 30 lbs.
Q: Does the CB140PT include mounting hardware?
A: Hardware specifics are not listed in the available product documentation. Contact your supplier or distributor for the exact contents of your order.
Q: What finish options are available?
A: The standard CB140PT is finished in white. If your installation requires a different color to match other infrastructure, check with your supplier for finish variants or repainting options.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CB140PT is a straightforward accessory that solves a real field problem: water intrusion into cable terminations on outdoor dome installs. At 1.16 lbs and aluminum construction, it's light enough to install without crew overhead, yet durable enough to survive salt spray and thermal cycling without failure. Most integrators don't think about junction boxes until a camera goes dark on a rainy night — by then you're scrambling with emergency calls and evidence gaps. Stocking the CB140PT eliminates that scenario.
Technical Highlights:
- Aluminum Alloy Material: Corrosion resistance is non-negotiable in coastal, industrial, or high-humidity settings. Plastic housings degrade under UV and thermal stress within 2–3 years; aluminum lasts 10+ years with minimal maintenance.
- Waterproof Rating: Sealing cable entry points prevents moisture from wicking along connectors and causing intermittent faults. This is the difference between reliable 24/7 recording and mysterious 3 AM outages.
- 3x Weight Capacity (Rated): Most dome cameras weigh 0.5–1.5 lbs. The CB140PT handles three times that, so anchor failure is not your risk — improper wall anchoring is. Use masonry anchors or studs, and you're solid.
Deployment Considerations:
- This is a passive accessory — it does nothing on its own. Its value lies in preventing failure, not adding features. If your project timeline is tight and weather protection isn't critical, you might defer it. Don't. One rainy week will prove its worth.
- Surface mounting only. If your wall is rough concrete or textured, ensure the box sits flush before tightening. Gaps trap water.
- Verify cable entry hole size against your connectors before ordering. If your camera uses non-standard connectors, the box may require on-site drilling.
For outdoor perimeter surveillance, warehouse access points, and any multi-camera deployment where uptime matters, the CB140PT is a non-negotiable addition to the bill of materials. It costs dollars and prevents thousands in downtime and re-commissioning labor.
