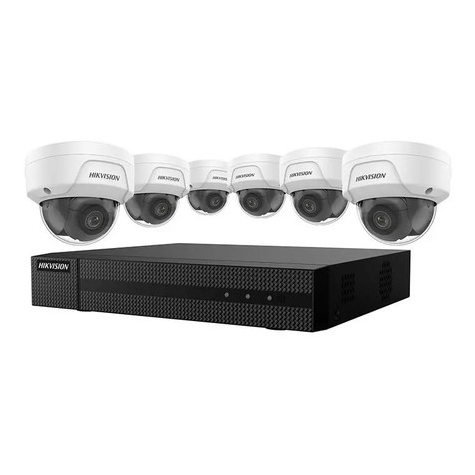

Hikvision EKI-K82D46 4MP Dome Camera Kit with 8-Channel NVR
The Hikvision EKI-K82D46 is a complete camera and recorder system combining six 4MP indoor dome cameras with an 8-channel Network Video Recorder (NVR) rated for up to 16-channel expansion. This kit is engineered for facilities requiring professional surveillance without the complexity of sourcing individual components, testing compatibility, or managing multiple vendor relationships. The system delivers 4MP (2688×1520) image resolution across all cameras, supported by H.265 compression to reduce storage footprint by roughly 40–60% compared to H.264—a meaningful savings when recording 24/7 across six simultaneous feeds.
Key Features
- Six 4MP Dome Cameras: Each camera captures 2688×1520 resolution with a 2.8mm fixed lens providing a 103° horizontal field of view. This focal length strikes a practical balance between coverage area and detail—adequate for facial recognition and object identification in offices, retail spaces, and warehouse interiors at typical surveillance distances. The 58° vertical field of view suits ceiling-mounted deployments.
- 8-Channel NVR with 16-Channel Capacity: The recorder supports simultaneous recording from all six cameras while providing headroom for future camera additions up to 16 channels. Scalability matters if your facility expands or if you need to integrate additional cameras from the same family later.
- H.265 Codec Support: The NVR supports H.265 (HEVC), H.264, and MJPEG compression. H.265 cuts bandwidth and storage costs substantially—a real factor when sizing hard drives or evaluating network utilization on systems running 24/7 recording. MJPEG fallback exists for bandwidth-constrained environments, and H.264 ensures compatibility with older VMS platforms if needed.
- PoE Class 3 Power Delivery: All six cameras draw power via standard IEEE 802.3af PoE over Ethernet cabling, eliminating the need for separate 12V power supplies at each camera location. This simplifies installation, reduces cable clutter, and minimizes power infrastructure costs—especially valuable in retrofit projects where running new electrical is costly.
- IP67 Rating and IK10 Vandal Resistance: The dome housings are IP67-rated (dust-tight and resistant to water jets), making them suitable for exposure to cleaning spray or condensation. IK10 vandal rating means the domes resist impact damage from thrown objects or intentional tampering. For indoor environments with environmental hazards (warehouses, loading docks, public access areas), this durability is a practical advantage.
- Day/Night Capability with Infrared: Each camera includes built-in infrared illumination for low-light and nighttime monitoring. Wide Dynamic Range (WDR) processing balances exposure in mixed lighting conditions—critical in retail or office environments where backlighting or window glare would otherwise wash out image detail.
- ONVIF Compatibility: The system supports the ONVIF standard, enabling integration with third-party VMS platforms such as Milestone XProtect, Genetec Omnicast, or open-source solutions. This avoids vendor lock-in and allows future system migration if needed.
- Built-in Audio and microSD Expansion: Cameras support audio input (useful for two-way communication or ambient recording in retail or office settings). The NVR accepts microSD cards for supplemental local storage, providing a backup recording tier without requiring external NAS investment.
- HTTPS Encryption: Management traffic uses HTTPS encryption, and the system supports credential-based access control. This is baseline security—verify with your IT team that this meets your organization's encryption and authentication standards, particularly in healthcare, financial, or compliance-sensitive environments.
Integration and Deployment Considerations
The EKI-K82D46 kit is designed for network video recorder-based deployments where all cameras report to a single on-premises NVR. Ethernet cabling must run from a PoE-capable switch (preferably a managed PoE switch with redundancy and VLAN support) to each camera location. Ensure your network infrastructure supports simultaneous recording bandwidth—H.265 reduces this demand, but 24/7 six-camera recording still consumes disk space rapidly. Calculate retention carefully based on your hard drive capacity and compression settings.
If you require cloud failover, edge analytics, or mobile remote viewing beyond simple NVR playback, evaluate whether a hybrid or cloud-capable camera system better fits your long-term architecture. The EKI-K82D46 is fundamentally an on-premises solution—cloud features would require third-party integration or upgrade.
What's in the Box
- 1x 8-channel NVR
- 6x 4MP dome cameras with 2.8mm fixed lenses
- 6x mounting brackets and hardware
- Ethernet cables and connectors
- Power adapter (if applicable)
- Installation documentation
Frequently Asked Questions
Q: What is the maximum recording duration on the EKI-K82D46 with H.265 compression?
A: Recording duration depends on the NVR's installed hard drive capacity and frame rate settings. H.265 reduces file size roughly 40–60% compared to H.264, extending retention per terabyte. Verify your storage specification with the NVR documentation or your integrator.
Q: Can I integrate the EKI-K82D46 with a third-party VMS like Milestone XProtect?
A: Yes. The system supports ONVIF Profile S, which allows integration with ONVIF-compatible VMS platforms. Your IT team should test the specific VMS version and authentication method in a staging environment before deployment.
Q: Is the EKI-K82D46 suitable for outdoor or wet environments?
A: The cameras carry an IP67 rating, meaning they resist water jets but are not designed for submersion or continuous outdoor exposure. They are classified as indoor domes. For outdoor use, specify a dedicated outdoor camera line with higher IP ratings and weatherproof enclosures.
Q: What PoE switch specifications do I need to support six cameras on this kit?
A: Each camera draws up to 13W via PoE Class 3 (802.3af). Six cameras require approximately 78W total. A standard managed PoE switch with at least 8–16 PoE ports rated for 95W or higher upstream power is adequate. Verify your switch's power budget and confirm it supports the port count you need.
Q: Does the EKI-K82D46 support facial recognition or advanced analytics?
A: The base system does not include on-camera AI analytics or facial recognition. The 4MP resolution supports facial identification at typical indoor distances, but analytics would require integration with a third-party VMS or edge AI platform.
Q: What is the warranty coverage on the EKI-K82D46?
A: Warranty details are typically provided in the purchase documentation or from the specialty distributor. Confirm the warranty period (standard coverage is usually 1–3 years for cameras and recorders) before finalizing your order.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hikvision EKI-K82D46 (often searched as EKI K82D46) represents pragmatic value for mid-sized deployments. The 4MP resolution (2688×1520) sits at the practical sweet spot for indoor surveillance—adequate for facial detail and object identification at typical office and retail distances, while staying lean on storage and bandwidth compared to 5MP or 8MP alternatives. The kit bundling removes integration risk; you're not mixing camera and recorder families from different vendors or worrying about codec incompatibility.
Technical Highlights:
- H.265 Compression Efficiency: The 40–60% storage reduction over H.264 translates directly to hard drive cost savings and extended retention windows. On a 24/7 six-camera system over 12 months, that difference is substantial—calculate it against your local storage pricing.
- PoE Class 3 Power Simplicity: At roughly 13W per camera, the total six-camera draw stays well within a standard 95W managed PoE switch budget. This eliminates the need for auxiliary 12V power supplies, conduit runs, and UPS complexity at individual camera nodes. Worth factoring into your installation labor estimate.
- IP67 + IK10 Durability: The combination handles cleaning spray, condensation, and minor impact in warehouses or public-access retail spaces. Don't rely on it for full outdoor exposure—that requires IP68 and temperature-rated housings. But for interior environments with splash or dust hazard, it's robust.
- 16-Channel NVR Headroom: The 8-channel unit scales to 16, which matters if your facility grows or if you need to cover a second building wing. That flexibility avoids a costly NVR swap in 18–24 months.
Deployment Considerations:
- Storage Calculation Is Non-Negotiable: 4MP at 30fps, 24/7, with H.265 compression still consumes 500GB–1TB per camera per week depending on scene complexity and bitrate tuning. On a 4TB NVR, you're looking at roughly 1–2 weeks of retention. Size your drives or retention policy upfront—undersizing here creates operational headaches.
- Network Conditioning Required: Six simultaneous 4MP streams require managed switching, QoS tagging, and VLAN isolation if your facility shares network infrastructure with office traffic or IoT devices. Confirm your integrator has validated the network path before going live.
- ONVIF is a Gate, Not a Guarantee: Yes, the system supports ONVIF, but that doesn't mean seamless integration with every third-party VMS out of the box. Test your specific Milestone, Genetec, or other platform version in staging before committing to production.
The EKI-K82D46 excels in small-to-medium office, retail, and warehouse installations where you need proven image quality, cost-effective compression, and no vendor fragmentation. It's not the choice if you need outdoor coverage, edge AI, or cloud redundancy—evaluate a hybrid or cloud-native platform in those cases. For on-premises, fixed-dome, straightforward surveillance, this kit is solid.
