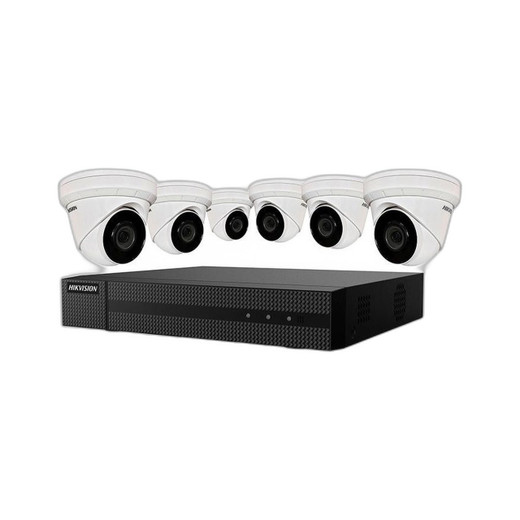

Hikvision EKI-K82T46 8MP Turret IP Camera Kit with 8-Channel NVR
The Hikvision EKI-K82T46 is a complete outdoor surveillance system pairing six 8MP fixed turret cameras with an 8-channel 4K network video recorder. This kit addresses a specific deployment gap: small-to-medium facilities requiring high-resolution identification capability without the complexity of modular design or the cost of premium analytics. The combination delivers practical performance for perimeter security, parking areas, warehouse exterior monitoring, and multi-building campuses.
Key Features
- 8MP Resolution (3840 × 2160): Significantly more detail than standard 4MP systems — meaningful for facial identification, license plate capture, and forensic review. The step from 4MP to 8MP is more practical than marketing claims suggest; at typical mounting heights (10–20 feet), the difference in readable text or object detail is noticeable during investigative review.
- Six Fixed Turret Cameras: Each features a 1/3" progressive scan CMOS sensor with a fixed 2.8mm lens (98° horizontal, 53.1° vertical field of view) and F2.0 aperture. Fixed lenses eliminate pan-tilt mechanical wear and reduce installation labor; the 98° angle is wide enough for corridor or parking perimeter coverage without requiring additional lenses.
- 8-Channel 4K NVR for Centralized Recording: The recorder supports H.265, H.264, and MJPEG compression, allowing bandwidth and storage optimization per camera stream. H.265 reduces storage footprint by roughly 50% compared to H.264 at equivalent quality — a material factor when recording six 8MP streams continuously.
- H.265 Primary Codec: Cuts bandwidth and storage demand in half, permitting longer retention periods on the same storage or lower network infrastructure costs. On 24/7 multi-camera deployments, this directly reduces operational expense.
- Wide Dynamic Range (WDR) Processing: Balances exposure when subjects move between bright and shadowed areas (e.g., a vehicle exiting a sunny lot into a building shadow). WDR is essential for outdoor systems where lighting contrast is uncontrolled; without it, faces or license plates in shadow become unreadable.
- IP67 Weatherproof Rating: Protects against dust and direct water jets. This means outdoor cameras can handle rain, sprinklers, and dusty warehouse environments. Temperature operating range of −10° to 55°C ensures functionality in cold storage or unheated outdoor structures.
- PoE Class 3 Power Delivery: Cameras draw under 10W each via single Ethernet cable. Eliminates separate 12VDC power lines at each camera location, reducing installation labor and field wiring risks. One cable per camera simplifies both initial deployment and future troubleshooting.
- Day/Night Capability with IR Support: Integrated IR illumination (specific range not detailed in kit documentation) enables 24/7 monitoring without supplemental lighting. Useful for unattended exterior areas or facilities operating overnight shifts.
- MicroSD Local Storage on Cameras: Each turret supports microSD cards for distributed recording, providing backup if the NVR connection fails. Cameras continue recording locally, preserving video during network outages.
- Integrated Audio Support: Two-way communication capability allows remote audio playback or live talk-down from the NVR. Practical for intercom-style alerts or facility announcements.
- HTTPS Encryption & Secure Authentication: Encrypted management sessions and credential-based access reduce risk of credential interception. Standard for modern IP surveillance, but critical for any externally accessible system.
Integration & Compatibility
The NVR connects via dual Ethernet and USB for flexible network integration. Wired connectivity (no wireless option in this kit) provides stable, high-bandwidth transmission essential for six simultaneous 8MP streams. ONVIF support (standard in Hikvision IP cameras) ensures compatibility with third-party network video recorders and video management systems, though the included 8-channel recorder eliminates that requirement for most deployments.
PoE power architecture requires a managed switch or injector capable of supplying Class 3 power (minimum 30W for a single camera, scale accordingly for all six). Verify your NVR switch infrastructure before purchase; undersized power budgets are a common installation failure point.
When to Choose a Different Model
If you require turret cameras with motorized zoom, consider a higher-specification variant in the Hikvision turret family. If you need indoor fixed cameras, an equivalent 8MP fixed dome or mini-turret will reduce interference from reflections in glass partitions. If you exceed eight camera channels, the NVR in this kit will fill its capacity — evaluate larger channel-count recorders from the same manufacturer.
Frequently Asked Questions
Q: Can I add additional cameras to the EKI-K82T46 NVR if I purchase more turrets separately?
A: The NVR supports eight channels total. Six are supplied with the kit, leaving two channels available for additional cameras. You would purchase compatible Hikvision 8MP turrets and integrate via Ethernet to the same NVR.
Q: What is the maximum storage capacity for the included NVR?
A: Storage specifications were not included in the kit documentation. Consult the detailed NVR datasheet or contact the manufacturer for maximum internal or external HDD support.
Q: Does the EKI-K82T46 support ONVIF integration with third-party VMS platforms?
A: Yes, Hikvision IP cameras in this kit follow ONVIF standards. The included NVR provides native recording, but the cameras can also stream to external platforms supporting ONVIF Profile S or T.
Q: What is the infrared (IR) illumination range on the turret cameras?
A: The infrared range was not specified in the available kit documentation. Check the individual turret camera datasheet for IR throw distance and effective low-light performance.
Q: Are the turret cameras compatible with third-party NVRs, or are they locked to the included recorder?
A: The cameras are ONVIF-compliant and will work with compatible third-party recorders or VMS platforms. They are not locked to the included NVR.
Q: What mounting options are available for the turret cameras?
A: Turret form factor typically supports wall or ceiling mounting. Confirm specific mounting accessories required and available in the full kit documentation or contact the manufacturer for bracket options.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The EKI-K82T46 occupies the middle ground between consumer-grade 4MP systems and premium analytics-enabled platforms. The 8MP sensor and H.265 codec pairing is practical engineering: you get meaningful detail improvement without the bandwidth bloat or analytics licensing costs. The kit bundles six cameras with a matched 8-channel recorder, eliminating guesswork about codec compatibility or frame-rate negotiation between separate vendors.
Technical Highlights:
- 8MP + H.265: Roughly 50% storage reduction versus H.264 at the same visual quality. On a 24/7 six-camera system, that means 30 days of retention instead of 15 on identical hardware — material difference in forensic capability and incident response timelines.
- PoE Class 3 Power: Each camera draws under 10W. Six cameras at ~60W total is well within a managed PoE+ switch budget, avoiding the need for separate power supplies at poles or ceiling locations. One cable per camera simplifies both labor and future troubleshooting.
- IP67 + WDR: The combination handles real outdoor variability — rain, dust, and shadow-to-sun transitions. WDR is the critical detail here; without it, subjects moving between sunlit and shaded areas will alternate between blown-out and underexposed frames.
Deployment Considerations:
- Verify your network switch has sufficient PoE budget for six Class 3 loads plus management overhead. Undersized power budgets are a common integration failure.
- The fixed 2.8mm lens and 98° horizontal angle work well for perimeter or parking-lot coverage, but will not substitute for higher magnification where you need readable detail at distance (e.g., gate entry or far-side lot). That requires a motorized zoom variant.
- MicroSD backup on each camera is useful, but recovery requires physical access to the camera or network connectivity to extract footage. It is not a substitute for redundant NVR storage or cloud archival.
Best fit: warehouse perimeter, multi-building campus exterior, parking facility, or facility entrance where you need high-resolution context capture and 24/7 storage without the complexity of modular analytics. The six-camera, 8MP turret kit strikes a balance between identification capability and operational simplicity that scales well to a two-to-four-facility deployment.
