Hikvision EKI-K41T44 4MP Turret IP Camera Kit with 4-Channel NVR

Hikvision EKI-K41T44 4MP Turret IP Camera Kit with 4-Channel NVR

The EKI-K41T44 is a bundled surveillance solution pairing four outdoor turret cameras with a dedicated 4-channel network video recorder. It targets integrators and end-users deploying outdoor perimeter monitoring across parking lots, building facades, and remote sites where weather resistance and straightforward PoE installation matter more than cutting-edge megapixel density.

Overview

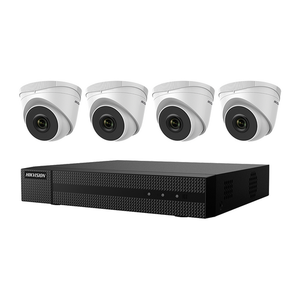

This kit combines four 4MP turret cameras with a 4-channel, 4K-capable NVR in a single package. The cameras ship with fixed 2.8mm lenses and operate via PoE Class 3 power delivery, eliminating the need for separate electrical infrastructure at each camera location. The turret form factor offers low-profile installation with a compact footprint, suitable for discrete mounting on building overhangs or pole-mounted applications.

Key Features

• 4MP Resolution (2688 × 1520): Delivers enough detail for facial recognition at 3–5 meters and license plate capture at 8–10 meters in daylight. Not sufficient for subchannel license-plate zooming at highway speeds, but adequate for parking lot and facility-level monitoring where post-event review drives the use case.
• H.265 + H.264 + MJPEG Codec Support: H.265 cuts storage consumption roughly 40–60% versus H.264 without perceptible quality loss at 4MP on a 24/7 recording schedule. Matters sharply when recording four simultaneous feeds; you'll recoup codec efficiency in reduced NVR hard-drive churn and retention cost over 12–24 months.
• IP67 Weatherproofing: Sealed against direct rain, dust, and temporary submersion. Operating range -10° to 55°C handles most temperate and subtropical climates; arctic or desert extremes may require supplemental enclosure or environmental management.
• 30-Meter IR Range: Fixed F2.0 aperture with integrated 850nm infrared illumination. Night-vision coverage extends reliably to 30 meters; beyond that, image quality degrades. Sufficient for most parking-lot and perimeter scenarios; high-security or wide-open-field deployments may require floodlighting or wider camera spacing.
• Wide Dynamic Range (WDR): Balances exposure when a single frame contains both bright sunlit areas and deep shadows—common at building edges during morning/evening. Reduces the need for supplemental lighting in mixed-condition zones.
• Fixed 98° (H) × 53.1° (V) Field of View: 2.8mm lens covers roughly one parking space or a 40-foot hallway width at close range. Plan coverage carefully; overlapping coverage is easier to manage than gaps after installation.
• Built-in Audio: Microphone and speaker support two-way communication and ambient-noise monitoring. Useful for voice-based alerts or emergency announcements but adds compliance burden in jurisdictions requiring signage for audio capture.
• MicroSD Local Storage (Cameras): Each camera supports microSD cards up to 512GB, providing local backup if the NVR or network connection is interrupted. Recoverable footage is limited to what fits on the card; this is failover only, not a primary retention strategy.
• 4-Channel NVR with 6-Channel Expansion: The recorder accepts four live feeds and supports connection to six total channels, allowing future camera additions without replacing the NVR. Dual Ethernet ports simplify network redundancy if your infrastructure supports it.

Integration & Network Deployment

The NVR supports HTTPS encryption for all data transmission, protecting credentials and video in transit. ONVIF Profile S/T compliance enables integration with third-party VMS platforms (Milestone XProtect, Hanwha SmartLog, etc.) if you require unified management across multiple sites or brands. PoE Class 3 draws under 13W per camera, so a single 60–90W PoE switch handles the entire four-camera array without strain. For projects involving longer runs (>100 meters) or locations distant from the NVR, budget for PoE injectors or mid-span extenders to maintain voltage headroom.

When to Choose a Different Model

If your deployment requires 8MP or higher for license-plate or facial recognition at range greater than 10 meters, evaluate a higher-megapixel variant in the Hikvision turret family. If remote sites lack power infrastructure and batteries alone must suffice, this kit is not suitable—you'll need a solar+battery camera design. If you need motorized lens zoom or pan-tilt coverage, step up to Hikvision's PTZ or varifocal-lens models.

Typical Applications

Retail parking lots, warehouse exterior perimeter, multi-location restaurant or gas-station chains, small-to-medium manufacturing facilities, apartment complex common areas, and remote gate/access-road monitoring. Integrators often deploy this kit as the entry-level outdoor standard, then upsell higher-megapixel or AI-equipped variants to customers with growing coverage needs.

Frequently Asked Questions

Q: What's the maximum local recording duration on a single microSD card?

A: At 4MP with H.265 compression, a 512GB microSD card stores approximately 40–60 hours of continuous video (varies with scene complexity and motion). For round-the-clock retention, use NVR-side hard-drive storage as your primary strategy.

Q: Can I daisy-chain multiple EKI-K41T44 kits into a single management interface?

A: Each NVR operates independently as a standalone appliance. To manage multiple kits centrally, deploy a VMS (Video Management System) with ONVIF support and connect each NVR as a networked device. This allows unified scheduling, archival, and search across sites.

Q: Is this kit NDAA Section 889 compliant or suitable for U.S. federal contracts?

A: Hikvision is subject to U.S. export controls and does not publish NDAA compliance for this model. If Section 889 compliance is a hard requirement, consult your procurement team and verify with the vendor before purchase.

Q: What's the warranty coverage?

A: Verify warranty terms with the specialty retailer; Hikvision typically offers 3-year hardware warranty from date of purchase on cameras and 2–3 years on the NVR. Confirm coverage details before committing to a large deployment.

Q: Can the NVR be configured as a pure network appliance without local monitors?

A: Yes. The NVR supports remote management via web browser or mobile app. You can configure it in a server cabinet with network connectivity and manage it entirely over Ethernet; no local HDMI monitor is required for day-to-day operation.

Q: Does the kit include cable and mounting hardware?

A: Package contents vary by region and distributor. Confirm inclusions before purchase; you may need to source RJ-45 outdoor-rated connectors, cable, and weatherproof conduit separately.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The EKI-K41T44 positions itself squarely in the value-tier outdoor surveillance bracket. It's not a cutting-edge platform—the 4MP sensor and fixed lens trade dynamic range and zoom flexibility for straightforward deployment and predictable per-camera cost. For integrators and end-users, that tradeoff makes sense when your mandate is coverage, not forensic detail.

Technical Highlights:

• H.265 codec efficiency: Running H.265 at 4MP cuts storage footprint roughly in half versus H.264. Over a 12-month retention window with four simultaneous feeds, that translates to one fewer 4TB drive—real money when you're managing dozens of sites.
• PoE Class 3 power envelope: Each camera maxes out around 13W, so a single 60W managed PoE switch handles the entire kit without oversubscription. No dedicated power infrastructure needed at each camera pole—cost and labor savings add up fast on large deployments.
• IP67 + -10° to 55°C operating range: The IP67 rating handles rain and dust reliably but will not survive full submersion. The temperature range covers most North American and European climates; if you're deploying in sub-arctic or high-altitude heat zones, test before committing.

Deployment Considerations:

• Fixed 2.8mm lens means coverage is binary—you either have it or you don't. Spend time on site walks and sketch out overlapping coverage zones before ordering. Gaps are expensive to fill later.
• The 30-meter IR range is honest, not inflated. Night-vision quality at 25–30 meters is grainy but usable for motion detection and basic identity verification; don't expect pristine nighttime facial recognition at the far end of the range.
• MicroSD failover on the cameras is a nice safety net, but it's not a primary retention strategy. Treat it as backup for network outages, not as a long-term archival feature.

This kit appeals directly to integrators pricing jobs competitively and end-users who need proven, straightforward outdoor coverage without premium pricing or advanced analytics. Pair it with a low-cost PoE switch and standard Cat6 cabling, and you have a turnkey outdoor system that's easy to explain to a property manager and easy to troubleshoot 18 months after installation.
