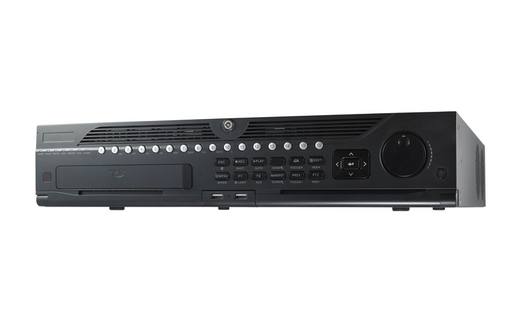

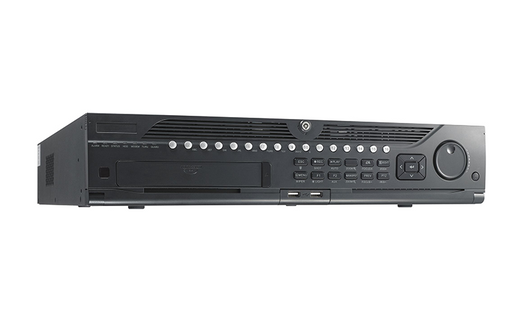

Hikvision DS-9632NI-I8-6TB
Hikvision DS-9632NI-I8-6TB
Hikvision DS-9632NI-I8-6TB
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: DS-9632NI-I8-6TB
UPC: 813908023886
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Write a Review 43% OFF

Hikvision DS-9632NI-I8-6TB 32-Channel 4K 6TB NVR

Fortify your security posture with the feature-rich Hikvision DS-9632NI-I8 NVR, a powerful network video recorder designed to meet the demands of mode…

Add to cart for sale price
$2,651.00
$1,515.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hikvision DS-9632NI-I8-6TB 32-Channel 4K 6TB NVR

$2,651.00
$1,515.99
Add to Cart

Overview

SKU: DS-9632NI-I8-6TB
UPC: 813908023886
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Description

Fortify your security posture with the feature-rich Hikvision DS-9632NI-I8 NVR, a powerful network video recorder designed to meet the demands of modern businesses. This versatile solution seamlessly manages up to 32 IP cameras , capturing crystal-clear 4K UHD footage on every channel for exceptional detail and identification. Leverage advanced technologies like H.265 video compression to significantly reduce storage requirements and PoE+ technology for simplified camera installation. The pre-installed 6TB HDD provides ample storage capacity, while expandable bays offer room for future growth, making it ideal for organizations seeking a scalable and secure surveillance solution.

Key Features:

  • Unparalleled Image Clarity: Capture sharp and detailed video footage with support for recording at up to 4K UHD resolution on all 32 channels, ensuring accurate identification of individuals and objects of interest.
  • Efficient Storage Management: Utilize H.265 video compression technology, dramatically reducing storage requirements and network bandwidth consumption compared to older codecs like H.264.
  • Simplified Installation with PoE+: Eliminate the need for separate power supplies for compatible cameras with integrated PoE+ technology, delivering both data and power over a single Ethernet cable.
  • Scalable Storage: Expand storage capacity beyond the pre-installed 6TB HDD by utilizing the available 8 SATA III HDD bays for future needs.
  • Centralized Management and Control: Manage and monitor your entire security system from a single platform, simplifying administration and enhancing operational efficiency.

Compatibility:

  • Primarily compatible with Hikvision IP cameras .
  • May also be compatible with other ONVIF-compliant cameras with limitations. Refer to the manufacturer's documentation for specific compatibility details.

Package Contents:

  • Hikvision DS-9632NI-I8 NVR
  • Power cord
  • Quick Start Guide

Summary:

The Hikvision DS-9632NI-I8 NVR stands out as a reliable and future-proof solution for demanding surveillance applications. It offers exceptional 4K UHD image quality, efficient storage management, simplified installation, and scalable storage, making it an ideal choice for organizations seeking a comprehensive and secure video surveillance system.

Expert Analysis
Specifications
Frame Rate: 30fps
IP Video Input: 32-ch;Up to 12 MP resolution;*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I8, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 256 Mbps
Incoming Bandwidth (RAID Mode: 200 Mbps
Outgoing Bandwidth (RAID Mode: 200 Mbps
HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output: 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF;*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I8, when ultra HD resolution mode is enabled, it will re
Synchronous Playback: 16-ch
Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
Dual-Stream Recording: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Remote Connection: 128
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
SATA: 8 SATA interfaces supporting hot-plug
ESATA: 1 eSATA interface
Capacity: Up to 10TB capacity for each disk
Alarm In/Out: 16/4
USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Type: 100 to 240 VAC, 50 to 60 Hz
Consumption: ≤ 30 W
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Chassis: 2U chassis
Dimension (W × D × H: 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
Weight: ≤ 10 kg (22 lb)
FCC: Part 15 Subpart B, ANSI C63.4-2014
CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Housing Color: White
