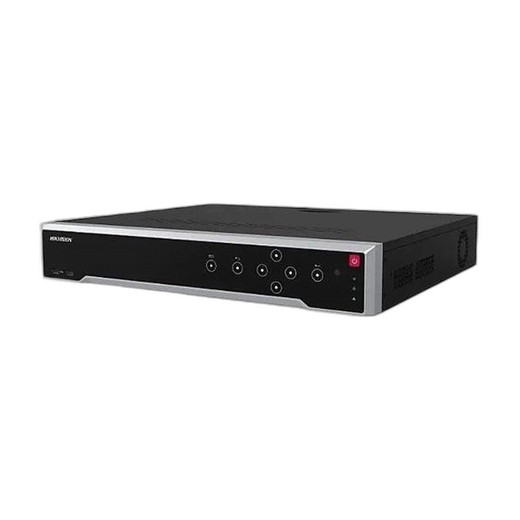

Hikvision DS-7732NI-M4/24P 32-Channel 8K NVR with Integrated PoE

Hikvision DS-7732NI-M4/24P 32-Channel 8K NVR with Integrated PoE

The Hikvision DS-7732NI-M4/24P is a 32-channel network video recorder purpose-built for large-scale enterprise surveillance where integrated power and network distribution matter. The device combines a 32-channel recorder with 24 built-in PoE ports, eliminating the need for a separate PoE switch in many mid-to-large deployments. This reduces hardware footprint, simplifies cable management, and cuts installation labor — practical considerations when scaling across warehouses, transit hubs, or multi-building facilities.

Key Features

• 32-channel IP camera input capacity: Handles 32 concurrent camera feeds. Useful for facilities where you need to consolidate multiple smaller NVRs into a single rack unit.
• 24 integrated PoE ports (PoE++): Each port supplies up to 95W, covering most mid-to-high-end cameras without auxiliary power. Reduces cabinet clutter and the cost of standalone PoE switches in new deployments.
• 320 Mbps incoming bandwidth: Sustains simultaneous recording from all 32 channels at mixed resolutions and frame rates. Matters for facilities with high-bitrate 4K or 8K cameras; lower-resolution or H.265+-compressed streams leave headroom for future upgrades.
• H.265+, H.265, H.264+, H.264 codec support: H.265+ compression cuts storage consumption roughly 40–60% versus H.264, directly reducing the number of hard drives required and total power draw in the recorder cabinet. Essential for 24/7 recording across 32 cameras.
• 8K output compatibility: Supports 8K display standards for future-proofing control room infrastructure. Current surveillance displays rarely exceed 4K; this is primarily relevant if your facility is planning next-generation monitoring walls.
• 32-channel decoding at 1080p: Ensures smooth local playback and scrubbing of recorded footage without transcoding latency. Simplifies evidence review workflows.
• Up to 8 IP speaker connections: Enables two-way audio, emergency announcements, or zone-based paging. Useful in facilities (retail, transit, industrial) where audible alerts complement visual monitoring.
• Rack-mount form factor: Integrates directly into standard 19-inch server racks. Standard in data centers and control rooms; saves floor space in facilities with existing rack infrastructure.

Integration & Compatibility

The DS-7732NI-M4/24P supports the full Hikvision Hikvision surveillance ecosystem, including cameras from the DS-2CD series and third-party ONVIF-compliant devices. The integrated PoE infrastructure means fewer external dependencies, but administrators should verify that their network video recorder management software (VMS or IPMS platform) supports the channel count and codec mix you intend to deploy.

Storage is not included and must be provisioned separately. Capacity planning should account for codec efficiency: H.265+ significantly extends retention compared to H.264 at the same drive count, making it the preferred choice for 24/7, multi-camera installations. See our NVR storage and retention guide for sizing methodology.

When to Choose a Different Model

If your facility already has managed network switches with abundant PoE capacity, a non-PoE equipped 32-channel model in the Hikvision family may offer better value — you'd avoid paying for integrated ports you don't use. Conversely, if you need fewer than 16 channels, smaller models with fewer PoE ports reduce upfront cost. For sites requiring redundancy or geographic distribution, consider multi-recorder configurations across separate locations rather than concentrating all 32 channels in a single unit.

Typical Deployments

Ideal for large commercial properties, transportation hubs, warehouse automation facilities, educational campuses, healthcare networks, and critical infrastructure where centralized recording and power distribution simplify operations and reduce total cost of ownership.

Frequently Asked Questions

Q: Does the DS-7732NI-M4/24P include hard drives?

A: No. Storage drives must be purchased separately. Capacity depends on retention policy, codec efficiency, and camera resolution; consult the sizing guide linked above.

Q: Can I mix camera brands on the DS-7732NI-M4/24P?

A: Yes. The recorder accepts any ONVIF-compliant IP camera, though Hikvision cameras are recommended for full feature parity and support.

Q: What is the maximum resolution the recorder can display?

A: 8K output is supported for display interface. Decoding is specified at 1080p across all 32 channels simultaneously.

Q: Do the PoE ports support high-power cameras?

A: Yes. Each port provides up to 95W (PoE++), sufficient for most professional IP cameras including those with IR, motorized lenses, or heaters.

Q: Is this unit suitable for outdoor installation?

A: No. The DS-7732NI-M4/24P is designed for indoor rack-mount deployment. Environmental controls (climate, humidity) are required.

Q: Can the recorder integrate with existing VMS software?

A: Yes, via ONVIF and vendor-specific APIs. Verify compatibility with your VMS provider before deployment.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-7732NI-M4/24P hits a practical middle ground: you get 32 channels, integrated PoE for 24 cameras, and 320 Mbps sustained throughput without overcomplicating your rack infrastructure. For integrators and IT teams managing large warehouses or multi-site operations, the built-in PoE switch cuts equipment cost and cabinet real estate. The H.265+ codec support is the real storage lever here — compress at source, extend retention, defer the next hard drive purchase by 6–12 months depending on scene complexity.

Technical Highlights:

• 24 PoE++ ports (95W each): Powers 24 cameras directly from the recorder. Eliminates a separate PoE switch and reduces power distribution complexity in the cabinet.
• 320 Mbps bandwidth: Sustains 32 simultaneous streams at mixed resolutions. Leaves breathing room for high-bitrate 4K cameras or future capacity adds without overrunning the pipeline.
• H.265+ codec efficiency: 40–60% smaller files than H.264. On a 24/7, 32-camera system, that easily translates to halving your storage footprint — a $2K–$5K difference in drive costs per year.
• 8K display output: Future-facing; current control rooms rarely demand it. Don't buy this feature alone, but it's a no-cost hedge if you're deploying new infrastructure anyway.

Deployment Considerations:

• Storage not included: You'll provision drives separately. Factor in H.265+ efficiency when sizing — don't assume 1:1 capacity equivalence with older H.264 systems.
• PoE port limitation: Only 24 of 32 channels get PoE power. Cameras 25–32 need auxiliary power or a second PoE switch. This matters if your layout requires all 32 cameras near the NVR.
• Rack-only form factor: This isn't a shelf unit. If your facility lacks a server rack or climate-controlled closet, you'll need to provision one. Plan for adequate cooling and UPS backup.

Position the DS-7732NI-M4/24P for mid-to-large deployments where you're consolidating smaller systems or building out a new facility with 20+ cameras and existing rack infrastructure. It's a no-nonsense recorder that trades simplicity and integrated PoE for the complexity of drive management — a fair trade for warehouse automation, logistics centers, and corporate campuses with dedicated IT staff.
