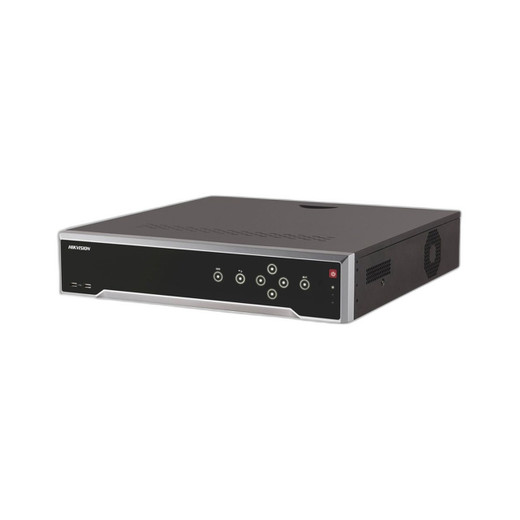

Hikvision DS-7732NI-I4/16P 32-Channel 4K NVR

Hikvision DS-7732NI-I4/16P 32-Channel 4K NVR with 24TB Storage

The Hikvision DS-7732NI-I4/16P is a professional-grade 32-channel network video recorder engineered for large-scale security deployments requiring exceptional image clarity and efficient storage management. This enterprise NVR combines 12MP (4K) recording capability with advanced H.265+ compression technology, delivering superior video quality while dramatically reducing bandwidth and storage consumption. The integrated 16-port PoE switch simplifies system architecture by powering PoE cameras directly, eliminating external power infrastructure and accelerating deployment timelines.

Key Features

• 32-channel 12MP (4K) video input with simultaneous recording at up to 25fps
• H.265+ video compression reduces storage requirements by up to 70% versus H.264
• Pre-installed 24TB HDD with expandable capacity up to 48TB via four SATA interfaces
• Integrated 16-port PoE switch (IEEE 802.3af/at) for simplified camera power and connectivity
• Dual-stream recording and 16-channel synchronous playback
• Multiple video outputs: 4K HDMI, VGA, and CVBS for flexible display configurations
• Support for H.265+, H.265, H.264+, and H.264 video formats
• Remote access for up to 128 simultaneous connections over TCP/IP
• Two-way audio with G.711, G.722, and G.726 codec support

Technical Highlights

The DS-7732NI-I4/16P supports 32 IP video inputs with up to 12MP resolution per channel, enabling comprehensive coverage of large facilities. With 256 Mbps incoming and outgoing bandwidth capacity, the NVR efficiently handles bandwidth-intensive 4K streams. The unit features flexible video output options including 4K HDMI output (3840 × 2160 at 60Hz), dual HDMI ports, VGA, and CVBS outputs, accommodating diverse monitoring setups from command centers to remote viewing stations.

Decoding performance reaches 2-channel at 12MP (20fps), 4-channel at 8MP (25fps), 8-channel at 4MP (30fps), and 16-channel at 1080p (30fps), supporting real-time multi-channel playback and forensic review. The device operates reliably across -10°C to 55°C ambient temperatures with power consumption of only 20W (HDD and PoE disabled), making it suitable for both controlled server environments and field deployments.

Connectivity & Integration

Network connectivity includes one 10/100/1000 Mbps Ethernet interface with support for IPv4, IPv6, DHCP, DNS, DDNS, NTP, RTSP, and SNMP protocols. Additional connectivity options feature RS-232 and RS-485 serial interfaces for legacy device integration, 16 alarm inputs with 4 alarm outputs, and one eSATA interface for external backup. The 19-inch rack-mounted 1.5U chassis design (440 × 387 × 75mm) enables seamless integration into standard security infrastructure.

Applications

Ideal for enterprise campuses, retail chains, transportation hubs, government facilities, and critical infrastructure requiring large-channel-count surveillance with forensic-grade 4K recording. The 24TB pre-installed storage accommodates extended recording periods, while H.265+ compression optimization ensures cost-effective long-term retention and rapid event retrieval.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-7732NI-I4/16P represents a mature enterprise-class NVR platform addressing the convergence of high-channel-count requirements with 4K capture demands. The integrated 16-port PoE switch is operationally significant: it eliminates auxiliary PoE injector hardware, reduces installation labor, and provides centralized power monitoring—critical for large deployments where power budget tracking impacts system reliability. H.265+ compression efficiency gains are particularly valuable in this 32-channel configuration; the bandwidth savings enable gigabit-only network infrastructure without requiring expensive 10G connectivity.

The 24TB capacity addresses real-world retention economics in large systems; at 32 channels of 12MP content, retention periods scale from 7-14 days depending on motion activity and compression tuning. The optional expansion to 48TB via additional SATA drives provides operators a cost-effective upgrade path without replacing the core platform. Decoding capability limitations (maximum 16 channels at 1080p simultaneous playback) should inform multi-monitor wall design; command center layouts requiring 32-channel live grid display may benefit from camera-side load balancing or edge processing. The compact 1.5U form factor enables cost-efficient rack density in data center deployments where space is premium.
