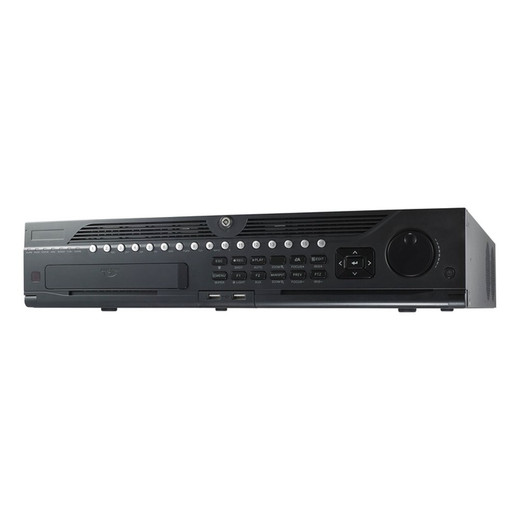

Hikvision DS-9632NI-I8 32-Channel 4K 8TB NVR

Hikvision DS-9632NI-I8 32-Channel 4K 8TB NVR

The Hikvision DS-9632NI-I8 is a professional-grade 32-channel network video recorder designed for large-scale surveillance deployments. With support for up to 12MP resolution per channel and advanced H.265 compression, this NVR delivers exceptional video quality while optimizing storage and bandwidth utilization. The pre-installed 8TB HDD provides immediate recording capacity, with eight additional SATA bays supporting up to 10TB drives each for expandable storage up to 88TB total—ideal for enterprises, government facilities, and critical infrastructure requiring long-term retention and reliable performance.

Key Features

• 32-channel IP video input supporting up to 12MP resolution per channel
• 4K HDMI 1 output (3840×2160 @ 60Hz/30Hz) with dual simultaneous display capability
• H.265+ and H.265 compression to reduce storage demands and network load
• 8TB pre-installed HDD with eight hot-swappable SATA bays for expansion
• RAID 0, 1, 5, 6, and 10 support for data redundancy and fault tolerance
• 16-channel synchronized playback for multi-camera review
• Dual Gigabit Ethernet interfaces (10/100/1000 Mbps) with 320 Mbps incoming/256 Mbps outgoing bandwidth
• 128 remote network connections for distributed monitoring
• Supports multiple decoding formats: H.265+, H.265, H.264+, H.264, MPEG4

Technical Highlights

Display and Output: The NVR features dual video output systems with HDMI 1 and VGA 1 as primary outputs (supporting 4K resolution) and HDMI 2 and VGA 2 as auxiliary outputs. CVBS and analog audio outputs enable integration with legacy monitoring setups. Two-way audio input/output via RCA connectors supports interactive communication.

Recording Capabilities: The system supports multiple recording resolutions from 32MP down to QCIF, with dual-stream recording for efficient bandwidth management. Decoding capability reaches 1-channel @ 32MP (30fps), 4-channel @ 8MP (25fps), or 16-channel @ 1080p (30fps) for flexible playback scenarios. Ultra HD resolution mode enables 32MP and 24MP recording on channel 1, with ultra HD mode reducing input to 24 channels on this model.

Network and Connectivity: Comprehensive network protocol support includes TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, HTTPS, UPnP, and iSCSI. Serial interfaces (RS-485, RS-232) and keyboard input enable PTZ camera control and peripheral integration. Alarm input/output (16/4) supports external device triggers and notifications.

Storage and Reliability: Eight SATA interfaces accept drives up to 10TB each, with one eSATA port for external backup. Hot-plug capability enables HDD replacement without system shutdown. RAID support ensures data protection across multiple drive configurations.

Applications

Ideal for enterprise surveillance, large facilities, transportation hubs, government buildings, and critical infrastructure requiring extensive multi-camera monitoring with high-resolution recording and advanced redundancy. The expandable architecture scales to meet growing surveillance demands.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-9632NI-I8 represents Hikvision's mature platform for large installations. The H.265 codec delivers approximately 50% better compression than H.264, directly reducing storage costs and network bandwidth requirements—critical for organizations managing 32 simultaneous streams. RAID 5/6 capability provides enterprise-level data protection, while hot-swappable bays enable non-disruptive maintenance.

The dual Gigabit interface with bonding support accommodates high-bandwidth scenarios, though the 320 Mbps incoming limit should be validated against your specific camera resolution mix. Support for up to 12MP per channel (vs. 8MP baseline) makes this NVR future-proof for upgrading camera hardware. The 2U form factor and low power consumption (≤30W) suit rack-mounted deployments in control rooms or server environments.

Temperature tolerance (-10°C to 55°C) addresses both cooled and non-climate-controlled facility placements.
