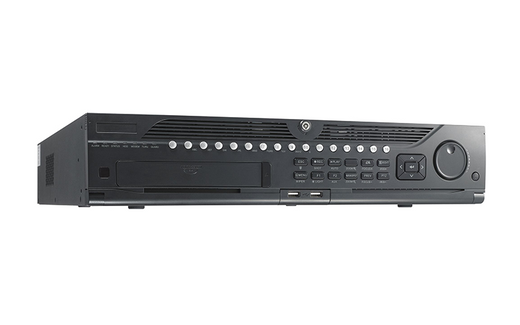

Hikvision DS-9632NI-I8 32-Channel 4K NVR

Hikvision DS-9632NI-I8 32-Channel 4K NVR

The Hikvision DS-9632NI-I8 is a high-performance 32-channel Network Video Recorder designed for large-scale surveillance deployments requiring centralized management, exceptional video quality, and cost-efficient storage. This enterprise-grade NVR delivers 4K resolution support, advanced H.265+ compression, and flexible recording capabilities to meet the demands of complex security infrastructures in retail, industrial, transportation, and critical infrastructure environments.

Key Features

• 32-Channel IP Camera Support: Manage simultaneous video feeds from up to 32 IP cameras with flexible resolution support up to 12MP per channel
• 4K Video Output: Dual HDMI and VGA outputs support 4K (3840 × 2160) at 60Hz for crystal-clear monitoring and investigation
• H.265+ Video Compression: Advanced codec technology reduces bandwidth requirements to 320 Mbps incoming and 256 Mbps outgoing, minimizing storage costs and network load
• Versatile Recording Modes: Support for continuous, motion detection, scheduled, and alarm-triggered recording to optimize storage utilization
• Robust Storage Options: Eight SATA interfaces with hot-plug support and one eSATA interface accommodate up to 10TB per drive, with RAID0/1/5/6/10 configurations for data protection
• Multiple Video Output Options: Simultaneous primary output via HDMI 1 and VGA 1, with auxiliary HDMI 2/VGA 2 outputs plus legacy CVBS support
• 16-Channel Synchronous Playback: Review multiple video streams simultaneously for comprehensive incident investigation

Technical Specifications

• Resolution: Records up to 8MP per channel with support for 32MP/24MP on channel 1 in ultra HD mode (reduces total channels to 24)
• Frame Rate: 30fps recording and playback across supported resolutions
• Decoding Capability: 1-ch@32MP (30fps), 2-ch@12MP (20fps), 4-ch@8MP (25fps), 8-ch@4MP (30fps), or 16-ch@1080p (30fps)
• Bandwidth Management: 320 Mbps incoming/256 Mbps outgoing (200 Mbps in RAID mode) with dual Gigabit Ethernet interfaces
• Audio Support: 2-channel audio output with two-way audio capability; multiple compression formats including G.711, G.722, G.726, AAC, MP2L2, and PCM
• Remote Access: Support for up to 128 simultaneous remote connections via TCP/IP, RTSP, HTTP/HTTPS, and comprehensive network protocols
• Serial Interfaces: 1 RS-485 (full-duplex), 1 RS-232, and 1 keyboard interface for system control and third-party integration
• Alarm I/O: 16 alarm inputs and 4 alarm outputs for integration with external security systems

Physical Specifications

The DS-9632NI-I8 features a compact 2U rackmount chassis (445 × 465 × 92mm) weighing under 10kg with minimal power consumption of 30W maximum. Operating temperature range of -10°C to 55°C and humidity tolerance of 10-90% enable reliable deployment in diverse environments. Multiple USB ports (2×USB 2.0 front, 1×USB 3.0 rear) facilitate quick backup and firmware updates.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-9632NI-I8 represents a mature, feature-complete platform for organizations requiring high-channel-count surveillance without compromising on resolution or bandwidth efficiency. The H.265+ codec delivers meaningful bandwidth and storage savings—critical for large deployments where infrastructure costs directly impact ROI. The flexible output configuration (dual HDMI + VGA pairs) accommodates mixed monitoring environments where simultaneous 4K display and legacy VGA integration are required.

RAID support with hot-plug capability ensures business continuity, while the configurable recording modes allow administrators to balance storage utilization with evidence retention policies. The 16-channel synchronous playback limit is a practical constraint; for simultaneous multi-angle incident review, organizations should evaluate concurrent user licenses and client software capabilities. Remote connection support of 128 sessions provides ample capacity for distributed security operations centers.

Integration via RS-485/RS-232 enables seamless deployment within existing access control and alarm management ecosystems.
