Hikvision DS-9632NI-I8 32-Channel 4K NVR 48TB

Hikvision DS-9632NI-I8 32-Channel 4K NVR with 48TB Storage

The Hikvision DS-9632NI-I8 is a professional-grade 32-channel network video recorder engineered for large-scale surveillance deployments. This 2U rack-mounted NVR delivers exceptional performance with support for up to 12MP resolution across 32 IP camera inputs, dual 4K HDMI output capability, and pre-installed 48TB HDD storage. Built for organizations requiring reliable, scalable video management infrastructure, the DS-9632NI-I8 combines advanced compression technology, flexible storage options, and robust networking capabilities.

Key Features

• 32-channel IP video input supporting up to 12MP resolution per channel
• Dual simultaneous 4K (3840 × 2160) video outputs via HDMI 1 and VGA 1 (main); HDMI 2 and VGA 2 (auxiliary)
• H.265+/H.265 video compression for efficient bandwidth and storage utilization
• Pre-installed 48TB HDD with support for up to 10TB per disk across 8 SATA interfaces
• RAID 0, 1, 5, 6, and 10 support for data redundancy and reliability
• 16-channel synchronized playback for comprehensive event review
• Dual-stream recording with flexible resolution options from QCIF to 12MP
• 128 remote concurrent connections for distributed monitoring
• Two-way audio support with multiple compression formats (G.711, G.722, G.726, AAC, PCM)

Technical Highlights

The DS-9632NI-I8 processes incoming bandwidth up to 320 Mbps in standard mode and 200 Mbps in RAID mode, with outgoing bandwidth of 256 Mbps and 200 Mbps respectively. Dual gigabit Ethernet interfaces support TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, and HTTPS protocols for secure network integration. The system decodes H.265+, H.265, H.264+, H.264, and MPEG4 streams with decoding capabilities ranging from 1-ch@32MP (30fps) to 16-ch@1080p (30fps). Serial interfaces include RS-485 (full-duplex), RS-232, and keyboard connectivity for third-party device integration. The compact 2U chassis (445 × 465 × 92mm) consumes ≤30W and operates reliably across -10°C to 55°C with 10-90% humidity tolerance.

Storage & Expansion

Eight hot-swappable SATA bays support drives up to 10TB each, delivering maximum capacity of 80TB without RAID, or optimized configurations with RAID protection. Single eSATA port and USB 3.0 rear interface enable external backup and archival workflows. MicroSD card support provides additional local storage flexibility.

Connectivity & Control

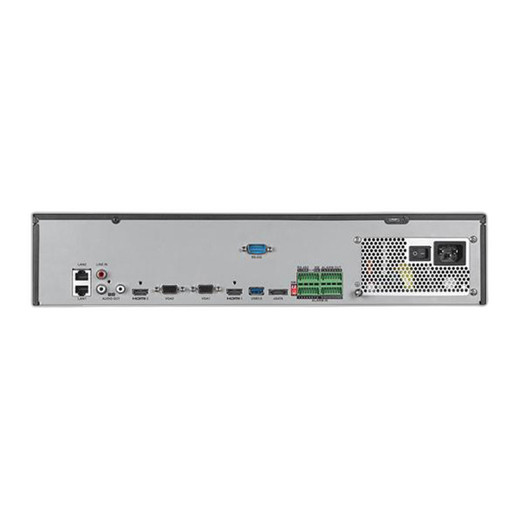

16 alarm inputs and 4 alarm outputs integrate with external sensors and control systems. Front-panel USB 2.0 ports (×2) and rear USB 3.0 port facilitate firmware updates and data export. 1-channel CVBS BNC output supports legacy display integration.

Applications

Ideal for enterprise campuses, transportation hubs, retail chains, critical infrastructure, and government facilities requiring high-channel-count, high-resolution video management with redundant storage and extended retention periods.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-9632NI-I8 represents a mid-to-high-tier NVR solution positioned for organizations balancing channel density with resolution capability. The 12MP per-channel input ceiling and H.265+ codec support enable efficient storage utilization—critical when managing 32 simultaneous streams. RAID flexibility (including RAID10) provides protection against drive failure, essential for uninterrupted surveillance in mission-critical deployments.

The 48TB factory configuration reduces procurement complexity, though the modular 8-bay design allows operators to right-size storage based on retention requirements and frame rate targets. Dual-stream recording and 16-channel synchronized playback facilitate both continuous archival and forensic investigation workflows. Network bandwidth specifications (320 Mbps inbound) support full-resolution recording across most channels; organizations approaching limits should evaluate RAID mode operation or implement intelligent video analytics to reduce redundant stream consumption.

The ≤30W power envelope and compact 2U form factor optimize data center space efficiency.
