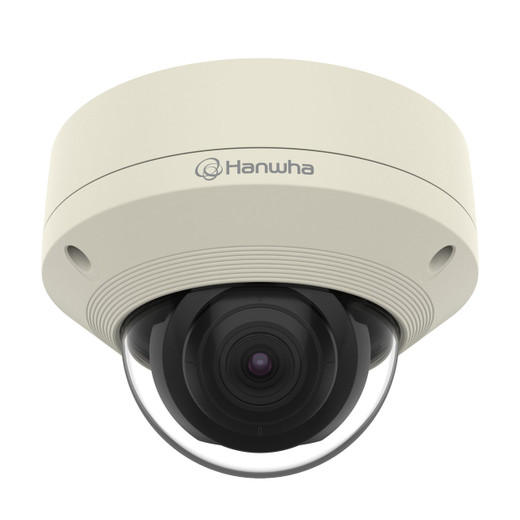

Hanwha XNV-L6080 2MP Varifocal IR Outdoor Dome

Hanwha XNV-L6080 2MP Varifocal IR Outdoor Dome IP Camera

The Hanwha XNV-L6080 is a professional-grade 2MP outdoor dome camera designed for demanding surveillance applications. Delivering 1080p video at 60fps with advanced Wide Dynamic Range (WDR) technology, this camera excels in challenging lighting environments where contrast between bright and dark areas is significant. The motorized 3.2–10mm varifocal lens provides flexible field-of-view adjustment (109° to 33.2° horizontal), enabling operators to optimize coverage for specific deployment scenarios without requiring lens replacement.

Key Features

• 2MP Full HD (1920×1080) resolution at 60fps with H.265/H.264 compression
• 120dB Wide Dynamic Range (WDR) for balanced exposure in mixed lighting
• Motorized varifocal lens (3.1x zoom) with DC auto iris
• Built-in IR illumination with 0.5m minimum object distance
• Exceptional low-light sensitivity: 0.03 Lux (color), 0.003 Lux (B&W)
• PoE powered (IEEE 802.3af Class 3) with minimal 5W typical consumption
• IP66 weatherproof and IK10 vandal-resistant construction
• microSD/SDHC/SDXC edge storage up to 256GB

Technical Highlights

The XNV-L6080 employs a 1/2.8" CMOS imaging sensor with intelligent noise reduction (SSNR V) and digital image stabilization to maintain video clarity in adverse conditions. The camera supports multiple video streams (up to 5 profiles) with bitrate control options (CBR/VBR), enabling efficient bandwidth management. Advanced backlight compensation modes—including BLC, HLC, and SSDR—work alongside WDR to handle extreme contrast scenarios. The lens features an F1.6 aperture at wide angle, stepping to F2.9 at telephoto, maximizing light capture across the zoom range.

Motion detection with 8 customizable polygonal zones and tampering alerts provide intelligent event triggering. Privacy masking supports 32 polygonal zones with multiple color options and mosaic modes. The camera rotates 354° pan, 67° tilt, and 355° rotate, accommodating flexible mounting orientations. Defog and Lens Distortion Correction (LDC) capabilities ensure performance in challenging environmental conditions.

Connectivity & Security

Full ONVIF Profile S/G compliance and Wisenet open platform integration facilitate seamless VMS integration. The camera supports dual authentication (Digest and HTTPS/SSL), IP filtering, 802.1X EAP authentication, and comprehensive protocol support (IPv4/IPv6, RTSP, RTCP, NTP, SMTP, FTP, SNMP). Web viewer compatibility spans Windows 7/8.1/10 and macOS with Chrome, Firefox, Safari, and Edge browsers.

Applications

Ideal for perimeter security, parking lots, outdoor facility monitoring, and mixed indoor-outdoor deployments. The varifocal design suits sites requiring adaptive coverage without camera repositioning. Extended operating range (-40° to +55°C/-40° to +131°F) supports harsh climates. Compact dimensions (Ø160×118.5mm, 940g) and low power draw optimize installation flexibility.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-L6080 delivers exceptional value for outdoor surveillance environments. The combination of 60fps H.265 support, motorized varifocal optics, and 120dB WDR addresses the primary pain points in outdoor monitoring: motion fluidity, flexible deployment, and exposure balance. At 5W typical consumption, the camera's PoE efficiency minimizes infrastructure cost.

The 0.003 Lux B&W sensitivity outperforms many cameras in this class, supporting truly low-light applications. Edge storage via microSD provides failsafe recording independence, reducing dependency on centralized NAS during network interruptions. The dual IR and varifocal capability eliminates the need for separate fixed and variable cameras in many mixed-lighting scenarios, streamlining procurement and maintenance.

IP66/IK10 ratings justify outdoor deployment confidence. Integration support (ONVIF, Wisenet) ensures compatibility with enterprise VMS platforms without proprietary lock-in.
