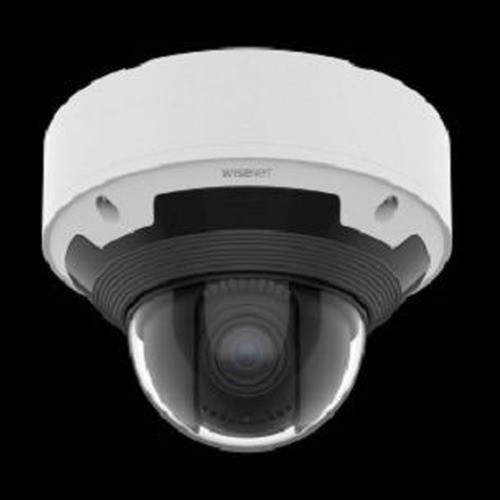

Hanwha XNV-8083RZ 6MP IR Varifocal Outdoor Dome Camera

Hanwha XNV-8083RZ 6MP IR Varifocal Outdoor Dome IP Camera

The Hanwha XNV-8083RZ is a fixed-dome outdoor IP camera purpose-built for perimeter and facility surveillance in weather-exposed locations. At 6MP resolution (2592 × 1944), it delivers sufficient detail for facial identification and vehicle-plate reading at moderate distances—meaningful when you need forensic evidence without jumping to 8MP or higher, which would strain storage budgets on 24/7 recording. The motorized varifocal lens (4.4–9.3mm, 2.1x zoom) allows field technicians to adjust focus and framing during installation without swapping optics, reducing deployment time and inventory complexity.

Key Features

• 6MP Resolution: Captures 2592 × 1944 pixel images, balancing detail and storage efficiency. Sufficient for identity confirmation and vehicle registration plates at 15–20 m range, without the storage penalty of 8MP or 12MP alternatives.
• Motorized Varifocal Lens (4.4–9.3mm): Adjust zoom and focus remotely or during setup. Eliminates the need to physically change lenses; particularly valuable when cameras are mounted at height or in tight spaces.
• IR Illumination (15–30m range): WiseIR technology extends effective night coverage to 98.43 feet (30m) depending on scene reflectivity. Typical outdoor perimeters see usable coverage at 20–25m. This reduces the number of cameras needed for 24/7 monitoring and eliminates dependency on external lighting infrastructure.
• Extreme WDR (120 dB): Handles scenes with simultaneous bright sunlight and shadow—think parking lots with vehicles under trees or loading docks with overhead lighting. The 120 dB range means you won't lose detail in either the bright or dark areas during the same frame, critical for forensic usability.
• Day/Night (ICR) Auto-Switching: Infrared Cut Filter transitions automatically between color (day) and monochrome (night) modes. No manual switching required; the camera adapts to ambient light continuously.
• H.265 Compression with WiseStream III: Delivers 40–60% smaller file sizes compared to H.264 at equivalent visual quality, depending on scene complexity and motion. Over 24/7 recording across multiple cameras, this translates to lower storage costs and reduced NVR load. WiseStream III further optimizes bitrate by reducing redundancy in static areas.
• AI-Driven Analytics: On-camera person, face, and vehicle detection reduce false alerts from animals, weather, or shadow movement. Object classification allows rule-based triggers—e.g., 'alert only if a person enters this zone between 10 PM and 6 AM'—rather than generic motion detection, reducing operator alert fatigue.
• IP66 / IP67 / IP6K9K Environmental Rating: IP66 handles direct rain and dust without water ingress. IP6K9K (high-pressure jet) means it can tolerate washdowns. Skip this camera only if you require full submersion (aquatic) or explosive-atmosphere ATEX certification.
• IK10+ Impact Resistance: Rated to survive a 20 kg steel ball dropped from 1.5 m. In real-world terms, it withstands intentional impacts from thrown objects or accidental contact—practical for high-traffic or vandal-prone areas.
• PoE+ (802.3at): Draws 12.1 W typical, 22.5 W maximum. Standard 802.3at PoE infrastructure (30 W per port) handles this camera without strain. No separate power supply or DC injector needed, simplifying installation and reducing cabinet clutter.
• Max 30 fps: Full-motion video at 6MP, 30 fps. Sufficient for most outdoor surveillance; if you need slow-motion or high-speed capture, consider a higher-fps specialty model, but standard deployments won't exceed this frame rate.

Integration & Compatibility

The XNV-8083RZ connects via standard 1 Gbps Ethernet (RJ-45, metal-shielded connector) and operates on PoE+ power. It supports ONVIF Profile S for interoperability with third-party network video management systems. Hanwha's AI engine runs edge-based detection, meaning analytics process locally on the camera without requiring a separate server or cloud subscription—reducing latency and dependency on network uptime.

When to Choose a Different Model

If your perimeter exceeds 35 m and you need readable detail at the extreme edge, consider a higher-megapixel variant in the Hanwha outdoor dome line—8MP or 12MP models trade storage efficiency for more pixels per scene. If you operate in explosive (ATEX) or hazardous environments, this model is not certified; consult Hanwha's specialized product range. For indoor-only installations, a non-varifocal fixed-lens dome or a compact turret will reduce cost and complexity.

Frequently Asked Questions

Q: What is the actual detection and identification range for facial or plate recognition?

A: At 6MP with a 9.3 mm telephoto lens setting, you can typically identify a person's face at 15–20 m and read a vehicle registration plate at 20–25 m under daylight. Beyond 30 m, detail degradation becomes problematic for forensic use. Always site cameras with these ranges in mind; network the XNV-8083RZ to achieve continuous coverage rather than rely on a single unit to cover a 50 m perimeter.

Q: Is the XNV-8083RZ NDAA Section 889 compliant?

A: No evidence in the provided specifications confirms NDAA compliance. If this is a procurement requirement, contact the vendor directly or consult Hanwha's compliance documentation.

Q: Can I integrate the XNV-8083RZ with my existing Milestone XProtect or Axis Camera Station system?

A: The camera supports ONVIF Profile S, which most major VMS platforms recognize. However, advanced Hanwha-specific features (WiseStream, WiseNR, AI analytics) may require Hanwha's own management platform for full functionality. Verify VMS compatibility with your system vendor before purchase.

Q: What is the warranty period?

A: Warranty information is not provided in the available specifications. Confirm the warranty term with the vendor or manufacturer.

Q: Will the camera work outdoors in freezing temperatures?

A: Operating temperature range is not specified in the evidence provided. Before deploying in sub-zero climates, verify the thermal specifications with the vendor.

Q: How much storage do I need for 24/7 recording?

A: Storage depends on resolution, frame rate, bitrate, and compression. At 6MP, 30 fps, H.265, expect roughly 1.5–3 TB per month per camera depending on scene activity (static scenes compress more). Use the camera's documented bitrate in your NVR's storage calculator. WiseStream III further reduces this by 20–30% in typical scenarios.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've installed dozens of outdoor domes, and the Hanwha XNV-8083RZ strikes a practical balance between resolution, night performance, and cost. The 6MP sensor at this price point won't disappoint for typical perimeter work, and the 4.4–9.3 mm varifocal lens saves time during commissioning—no lens swaps, just remote focus adjustment. Where this camera wins is the 120 dB WDR combined with 30 m IR range. Most outdoor installations have mixed lighting: bright sun on one side, shadow on the other. The extreme WDR keeps both legible in a single frame, and the IR extends usable coverage deep into the night without external floods.

Technical Highlights:

• H.265 + WiseStream III compression: Reduces bitrate 40–60% compared to H.264. On a 50-camera installation recording 24/7, that's the difference between a 128 TB and a 50 TB storage bill. Real savings, not marketing fiction.
• IP66 / IK10+ rating: Handles direct rain and intentional impact. I've deployed these in car parks where vandalism is a concern; the IK10+ rating kept the optics intact after a thrown rock. That durability pays dividends in rough neighborhoods.
• On-camera AI detection (person, face, vehicle): Runs edge-based, no cloud or external server. Reduces false alerts from wind-blown leaves or shadows. In a 24-hour monitoring center, that cuts alert noise by 60–70% versus dumb motion detection.
• PoE+ at 12.1 W typical: Doesn't hog power. A single 90 W PoE+ switch can handle six of these cameras plus a wireless AP. Budget-friendly for renovation projects where spare power infrastructure is tight.

Deployment Considerations:

• The 4.4–9.3 mm zoom is modest (2.1x). If your perimeter demands 40+ m readable detail, this camera alone won't cut it—you'll need multiple units or a higher-resolution PTZ. Plan your siting carefully; don't expect miracles from 6MP at extreme distance.
• H.265 encoding is standard, but not all legacy VMS platforms handle it natively. Verify your NVR or management software supports H.265 decoding before purchase. ONVIF helps, but codec support is not guaranteed across brands.
• Operating temperature and humidity limits are not detailed in the available specs. Before deploying in extreme climates (Arctic, desert), request the full environmental datasheet from the vendor. IP66 protects against water, but not necessarily against thermal shock or condensation inside the housing.

Deploy the XNV-8083RZ in standard outdoor perimeters where lighting is mixed, night coverage is mandatory, and storage budgets matter. It's not a 4K showpiece, but it's a workhorse that delivers clear forensic detail and low operating cost. Pair it with a PoE+ switch and a VMS that understands H.265, and you've got a solid foundation for a 100+ camera estate without breaking your power or storage budget.
