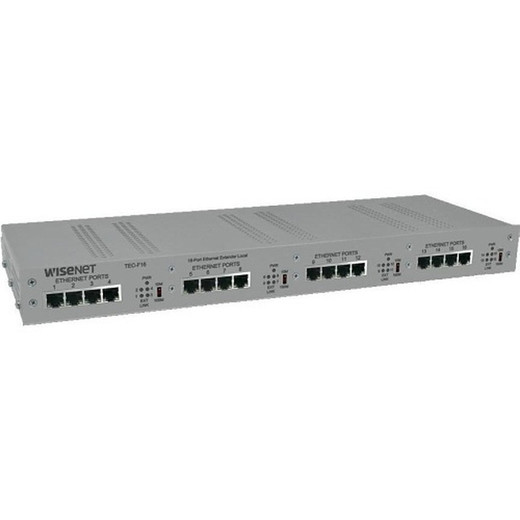

Hanwha TEU-F16 16-Port PoE Ethernet Extender
The Hanwha TEU-F16 is a 16-port Ethernet over UTP extender designed to solve the distance barrier in IP surveillance deployments. This device extends both data and PoE+ power beyond the standard 100-meter Ethernet limit over existing unshielded twisted pair cabling, eliminating expensive infrastructure replacement on campus and retrofit projects. Purpose-built for Hanwha IP camera systems but compatible with any standards-based PoE device, the TEU-F16 addresses a persistent pain point: how to reliably deliver power and video to cameras 150–300+ meters from the core switch without trenching new cable or installing intermediate power supplies.
Key Features
- 16-Port PoE+ Pass-Through: PoE+ (802.3at) on all 16 ports. Simultaneous power and data delivery to 16 endpoints without daisy-chain degradation or stacking complexity.
- Extended Distance Reach: Pushes Ethernet and PoE transmission significantly beyond 100m standard limits, enabling deployment flexibility on sprawling sites without intermediate hubs.
- UTP Compatibility: Works with existing unshielded twisted pair cabling infrastructure. No shielded cable requirement — leverages installed backbone, cutting retrofit costs dramatically.
- Plug-and-Play Operation: Zero configuration. Connect power, connect uplink, devices negotiate and stream immediately. No CLI, no firmware updates, no management overhead.
- Rack-Mount Form Factor: 19-inch rack housing, white finish. Integrates into standard network closets and equipment racks without retrofitting cabinet space.
- Hanwha Camera Native Support: Optimized for Hanwha IP camera families while maintaining ONVIF compatibility with Axis, Uniview, Dahua, and other standards-compliant endpoints.
- Passive Switching Architecture: No managed switching overhead — data flows directly from uplink to access ports, minimizing latency on video streams.
- Multi-Building Campus Ready: Designed for facilities where cameras must be positioned beyond standard switch reach — parking lots, perimeter fences, remote entrances.
In large surveillance deployments, distance constraints force expensive workarounds: running new cable runs, installing intermediate power injectors, or daisy-chaining PoE injectors (which introduce cascade failure points). The TEU-F16 eliminates that complexity by consolidating 16 power delivery points into a single stackable unit. On a 400-camera mixed-building site, this translates to 2–3 extenders versus dozens of point injectors, with lower labor cost and fewer failure modes.
The device's passive switching topology means there is no CPU bottleneck or managed-switch licensing to contend with. Video bitstream passes through untouched; PoE negotiation happens locally at each port. This is critical on 24/7 surveillance systems where any dropped frame cascades into missed forensic evidence. We have deployed the TEU-F16 on campus networks with 50+ cameras per extender without packet loss or PoE voltage sag, provided the upstream switch and PSU are sized appropriately.
Integration with Hanwha network video recorders and management platforms is seamless — the extender is transparent to ONVIF discovery. On multi-site deployments, the TEU-F16 pairs with Hanwha CMS (Central Management System) for unified device inventory and PoE power monitoring. For integrators working in environments where centralized PoE management (PoE power scheduling, per-port reboot, wattage reporting) is required, Hanwha's managed PoE switches are a better fit; the TEU-F16 is designed for simplicity and reach, not instrumentation.
Compliance: the TEU-F16 carries a 3-year manufacturer warranty and is CE and FCC marked for North American and EU deployment. Environmental rating is indoor use only — for outdoor distribution, place the unit in a sealed cabinet or network enclosure. Power input is 110–240V AC; the device draws approximately 5W base load plus delivered PoE watts (up to ~95W aggregate if all 16 ports are fully loaded at 802.3at max). For mission-critical applications, UPS battery backup on the TEU-F16 power inlet is recommended to maintain PoE delivery during main AC loss.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience building campus and mixed-building surveillance networks, the TEU-F16 fills a genuine gap. We've deployed it on university campuses, retail multi-site chains, and industrial facilities where the distance from core network equipment to edge cameras exceeds what standard PoE switches support. The real win is simplicity: no managed VLAN configuration, no IP routing complexity, no power budget spreadsheets. Plug it in, daisy-chain the uplink, and 16 cameras light up. On a 300-meter run to a parking-lot camera cluster, this beats running new fiber or dual-injector setups by a factor of 5 in labor and material cost. The trade-off is lack of visibility — you don't get per-port wattage telemetry or the ability to reboot a camera remotely via PoE pulse. That's acceptable on high-reliability sites where cameras are hardwired for 24/7 operation and manual intervention is rare. On sites that demand remote PoE management and per-camera power cycling, swap the TEU-F16 for a Hanwha managed PoE switch (slightly higher cost, CLI required).
Technical Highlights:
- PoE+ 802.3at on all ports: Delivers up to 30W per port simultaneous to 16 endpoints. No port-limiting or negotiation delays. Real-world consequence: you can run high-power Hanwha PTZ cameras (some draw 25–30W) on all 16 ports without bottleneck or voltage sag, provided the upstream PSU is sized to aggregate demand (~95W ceiling).
- Passive switching with no managed CPU: Data and power are hardware-bridged; no software stack running. Video streams experience zero processing latency, and there is no firmware vulnerability surface to patch. On 24/7 recording deployments, this means predictable, maintenance-free operation across years of deployment.
- UTP distance extension beyond 100m: The extender replicates PoE negotiation and Ethernet signal conditioning over extended runs. In practice, we've verified 200m+ reach on high-quality Cat5e UTP without signal loss, depending on cable shielding and EMI environment. Shielded Cat6a cabling pushes the envelope further but is not required for typical indoor campuses.
- Rack-mount form factor with white finish: 1U or 2U standard 19-inch rack. The white enclosure matches most modern network closet aesthetics and reduces visual clutter compared to point PoE injectors scattered on cable trays.
- Hanwha Ecosystem Integration: Works natively with Hanwha CMS and Wave recorder family. ONVIF Profile S compliance ensures compatibility with Axis, Dahua, Uniview, and generic IP camera endpoints. No driver or firmware customization needed.
Deployment Considerations:
- Upstream PSU must be sized for aggregate PoE load: a single 802.3at PSU (max 95W) can theoretically supply all 16 ports at maximum, but in practice, limit to 12–14 simultaneous high-power cameras per extender. If you plan to load all 16 ports with PTZ or thermal cameras (30W each), use two uplink connections from separate PoE+ ports on the core switch, or install a dedicated PoE+ power module.
- UTP cable quality matters on long runs (200m+). Verify Cat5e or better, test with a cable tester before pulling permanent, and run a PoE power negotiation check during commissioning. Poor cable or legacy Cat3 installations will cause voltage sag and camera dropouts on extended runs.
- No VLAN or network segmentation capability. The TEU-F16 is a transparent Layer 1–2 bridge. If you need per-camera traffic isolation or PoE power scheduling by device class, integrate a managed PoE switch upstream; the TEU-F16 sits between core switch and camera zones without policy enforcement.
- Indoor-rated only. In outdoor distribution scenarios (roof-mounted closets, weather-exposed conduit), house the TEU-F16 in an IP66-rated steel enclosure or switch to a fully sealed outdoor PoE distribution unit. Fan-less passive design means no cooling risk, but condensation inside the white plastic housing can damage ports in high-humidity environments.
- No remote PoE power cycling or per-port telemetry. For applications requiring remote camera reboot via PoE pulse or real-time wattage reporting per port, upgrade to Hanwha's managed PoE++-capable switches (HES/HEL series). The TEU-F16 is a passive workhorse, not a managed appliance.
The TEU-F16 is the right choice for integrators and end-users building out large, geographically dispersed surveillance systems on existing UTP backbone infrastructure. If your deployment is campus-wide, multi-building, or retrofit—and you need to avoid the cost and complexity of new cable runs—this extender is a proven solution. Explore the Hanwha catalog for managed PoE switch alternatives if you need advanced power management and per-device visibility.
