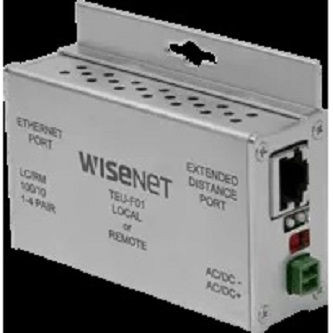

Hanwha TEU-F01 Ethernet UTP Extender PoE Pass-Through
The TEU-F01 is a single-channel Ethernet extender designed to push IP surveillance beyond the standard 100-meter copper limitation. By amplifying signal over unshielded twisted pair (UTP) cabling while simultaneously passing through Power over Ethernet (PoE), this device eliminates the need for intermediate power supplies or network switch placement at extended run endpoints. This matters on large campuses, multi-building retail chains, or warehouse installations where running a new network backbone becomes prohibitively expensive.
Key Features
- Extended Ethernet Range: Amplifies UTP signal transmission beyond the standard 100-meter Ethernet maximum. Reduces the need for additional switch placement or backbone infrastructure in sprawling facilities—a cost and complexity win on projects where running new fiber or conduit is impractical.
- Pass-Through PoE Delivery: Both power and data traverse the same UTP run, eliminating separate power supplies or injectors at the remote end. Draws power from the upstream PoE source and regenerates it at the output, meaning you provision once, not twice.
- Zero-Configuration Operation: Plug-and-play design requires no IP address assignment, firmware updates, or VMS registration. Plug one end into your PoE source; plug the other into a camera or network device. No commissioning overhead.
- Universal Compatibility: Works with Hanwha IP cameras and third-party ONVIF-compliant or standard PoE devices. Not brand-locked, so it integrates into mixed-vendor deployments without vendor-specific software or licensing.
- Compact Form Factor: Discreet industrial-grade housing fits into equipment racks, wall-mount enclosures, or field cabinets without occupying significant real estate. Suitable for both indoor IT closets and weatherproof outdoor junction boxes.
- Wired Connectivity: Relies on passive UTP cabling, not wireless radio or fiber—no RF interference, no line-of-sight constraints, no frequency licensing. Stable and predictable for mission-critical surveillance spans.
Integration & Compatibility
The Hanwha IP cameras line integrates directly with the TEU-F01. Because the extender operates transparently at Layer 1 (physical signal regeneration), it presents no protocol compatibility barriers. A network video recorder or managed PoE switch upstream sees the remote camera exactly as if it were connected locally—no special VMS modules or driver updates needed. If you're planning a larger PoE infrastructure deployment, account for the TEU-F01's pass-through behavior: it draws power from the source and regenerates it, so ensure your upstream PoE injector or PoE switch supplies sufficient wattage for both the extender and the end device.
Typical Deployment Scenarios
Common use cases include retail networks spanning parking lots to back-of-house facilities, warehouse perimeter monitoring where IP cameras must mount 200–300 meters from the network closet, educational campuses with distributed building-to-building surveillance, and industrial sites where segregating IT and security networks over extended runs justifies the infrastructure investment. Each scenario avoids the cost and labor of installing secondary power distribution, separate conduit runs, or additional network switching at intermediate points.
Frequently Asked Questions
Q: Does the TEU-F01 work with non-Hanwha cameras?
A: Yes. The TEU-F01 is a transparent signal extender compatible with any standard PoE IP camera or network device that operates over Ethernet. It does not require Hanwha firmware or VMS licensing.
Q: What is the maximum distance the TEU-F01 can extend?
A: The TEU-F01 amplifies UTP signal transmission beyond the standard 100-meter Ethernet limit. Exact extended range depends on cable quality, environmental noise, and the specific device power draw at the remote end. Consult the datasheet for distance tables under typical deployment conditions.
Q: Does the TEU-F01 require configuration or firmware updates?
A: No. The TEU-F01 is a zero-configuration plug-and-play device. Connect it between a PoE source and a remote camera—no IP address, DHCP, or VMS setup required.
Q: Can I use the TEU-F01 outdoors?
A: The TEU-F01 is rated for indoor installation. For outdoor cable runs, house the extender in a weatherproof enclosure or cabinet, or consider an outdoor-rated alternative in the network infrastructure product line.
Q: Does the TEU-F01 support H.265 compression?
A: The TEU-F01 is a physical-layer extender. It does not transcode or process video; it simply regenerates the Ethernet signal and passes PoE through. Compression (H.265, H.264, or MJPEG) is determined by the camera or encoder upstream, not the extender.
Q: What happens if the remote device requires more than the available PoE budget?
A: The TEU-F01 passes through the power supplied by the upstream source. If the remote camera or device draws more current than your PoE injector or switch can supply, the extender cannot compensate. Verify upstream PoE wattage before deployment, especially on multi-camera runs or if using power-hungry accessories.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
I treat the TEU-F01 as a tactical solution, not a permanent network architecture fix. If you're deploying surveillance across a 300-meter warehouse perimeter or a multi-building retail campus where every meter of backbone conduit costs money, the TEU-F01's PoE pass-through model saves you a second power distribution run and a PoE injector at the endpoint. That's real capex reduction on large jobs.
Technical Highlights:
- Single-Channel Pass-Through PoE: Regenerates both signal and power on a single UTP pair, so you provision one infrastructure path instead of two. Upstream PoE supplies the power; the extender amplifies it and retransmits it to the end device. No separate PSU, no second cable to pull.
- Zero-Configuration Transparency: Because it operates at Layer 1 (physical-layer signal regeneration), any network video recorder, switch, or management platform upstream sees the remote camera as directly connected. No driver licensing, no DHCP scope reservation, no special VMS module.
- Extended Ethernet Span: Pushes UTP transmission beyond 100 meters, eliminating the need for intermediate switch placement or fiber backbone in sprawling facilities where adding network infrastructure is logistically expensive or disruptive.
Deployment Considerations:
- Indoor rating only—if your cable run traverses outdoor conduit or exposed rooftop, house the TEU-F01 in a weatherproof junction box or skip to an outdoor-rated extender variant. Adding an enclosure adds cost and complexity; verify this upfront.
- Upstream PoE budget is the hard constraint. The TEU-F01 passes through the available power; if your remote camera and any auxiliary load exceed your injector's total wattage, the system browns out. Oversizing the upstream PoE supply is cheap insurance.
- UTP cable quality matters. Cheap or damaged CAT5 cabling introduces signal noise that erodes the extender's range gain. Use verified CAT5e or CAT6 on long runs; test the link before mounting the camera.
Pick the TEU-F01 when you're connecting a single remote camera or sensor over distance and want to avoid dual infrastructure (separate power + data runs). It's not a wholesale network redesign tool—it's a targeted cost-saver for point-to-point extended deployment scenarios.
