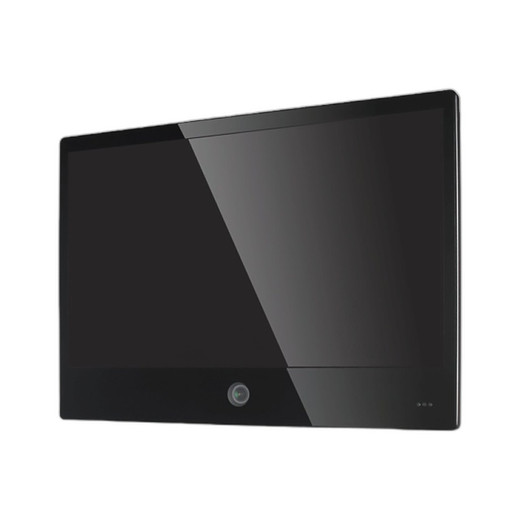

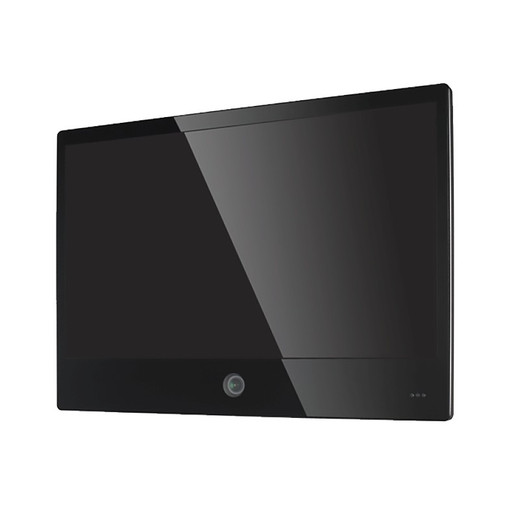

Hanwha SMT-3211PVM-PIP 32" 1080p Monitor with 2MP Camera

Hanwha SMT-3211PVM-PIP 32" Display Monitor with Integrated 2MP Surveillance Camera

The Hanwha SMT-3211PVM-PIP combines a 32-inch 1080p LED display with an integrated 2-megapixel surveillance camera into a single device, eliminating the need for separate monitor and camera installations. This consolidation reduces cable clutter, lowers per-location power consumption, and simplifies commissioning in environments where monitoring and content delivery must operate in parallel—retail floors, transit hubs, corporate lobbies, banking halls, and healthcare facilities benefit most from this dual-function approach.

Key Features

• 32-inch 1080p LED display: Delivers sufficient pixel density for clear viewing at typical public-facing distances (10–20 feet), suitable for both live surveillance feeds and promotional or informational content without noticeable degradation. At closer ranges (under 8 feet), individual pixels may become visible, but this is standard for 1080p displays at this size.
• 2MP integrated surveillance camera: Provides 1920 × 1080 resolution—adequate for area and perimeter coverage, incident documentation, and facial detail capture in medium to high-traffic environments. Not ideal for license plate reading or biometric-grade identification at distance; if those use cases are primary, evaluate a dedicated higher-megapixel camera instead.
• Picture-In-Picture (PIP) capability: Allows simultaneous display of live camera feed and digital signage or promotional content on a single screen. Operators see real-time surveillance while patrons view announcements or wayfinding information, eliminating the need to toggle between inputs or deploy multiple displays.
• DC power operation: Eliminates the need for separate AC conditioning in the display unit. DC supplies are simpler to integrate into controlled environments (retail back-office, security command centers, transportation control rooms) and reduce ground-loop hum risks compared to AC mains. Not suitable for field deployments requiring AC-only infrastructure.
• HDMI and VGA connectivity: Supports flexible source integration—connect NVR outputs, media players, digital signage platforms, or traditional VGA-based security consoles without requiring adapters. HDMI is the preferred interface for modern systems; VGA is included for backward compatibility with legacy equipment.
• Wide viewing angles: Ensures clarity across public spaces, reducing the need for multiple smaller displays or tilted mounts. Exact viewing-angle specifications (typically 178° horizontal × 178° vertical for LED panels) support standing, walking, and seated viewpoints without significant image wash-out.

Integration and Deployment Context

The SMT-3211PVM-PIP is purpose-built for fixed indoor installations where both surveillance and signage are active, continuous functions. Integration requires standard video sources compatible with HDMI or VGA; ensure your network video recorder or digital signage platform outputs in one of these formats. The integrated camera connects via the same device—no separate camera cabling or power runs are necessary beyond the DC supply to the monitor itself.

If your primary requirement is surveillance alone, or if signage is infrequent or secondary, a standalone monitor with an external Hanwha IP camera may offer better flexibility and cost efficiency. This device shines when both functions are equally weighted and space/power constraints favor consolidation.

Deployment scenarios that favor the SMT-3211PVM-PIP include retail loss-prevention with concurrent promotional messaging, airport terminals displaying wayfinding while monitoring passenger flow, corporate lobbies presenting company announcements alongside security awareness, and banking facilities integrating customer-facing content with perimeter surveillance. In warehouse or industrial automation environments, this device is less relevant unless digital signage for workflow instructions is paired with area monitoring.

Frequently Asked Questions

Q: Can I display the camera feed on the left side of the screen and static content on the right using PIP?

A: Yes. The PIP feature allows independent sizing and positioning of the surveillance feed and external content. Exact layout options depend on the display's firmware settings; consult the unit documentation or contact the manufacturer for available PIP layout configurations.

Q: Is the SMT-3211PVM-PIP NDAA Section 889 compliant?

A: No compliance statement appears in available documentation. If NDAA compliance is a procurement requirement, verify directly with the manufacturer or your supplier before committing to purchase.

Q: What is the maximum distance at which the integrated 2MP camera can identify a person's face?

A: At 2MP (1920 × 1080), facial recognition is feasible at distances up to approximately 8–12 feet under good lighting, assuming standard mounting height and angle. Poor lighting, reflections, or face-on angles less than 45° to the camera degrade performance. For forensic-grade identification over longer distances, evaluate higher-megapixel dedicated cameras.

Q: Does the SMT-3211PVM-PIP work with Milestone XProtect or other third-party VMS platforms?

A: The integrated camera's compatibility depends on whether it outputs ONVIF or proprietary Hanwha streams. Confirm ONVIF support with the manufacturer and test integration with your VMS before deployment. The display itself is a passive display device and does not require VMS integration—any HDMI or VGA source works.

Q: What is the warranty on the SMT-3211PVM-PIP?

A: Warranty details are not present in available documentation. Contact the manufacturer or authorized supplier for warranty period, coverage terms, and support options.

Q: Can I wall-mount the SMT-3211PVM-PIP vertically, or is it landscape-only?

A: The device is designed for landscape (horizontal) mounting as a display monitor. Vertical (portrait) mounting is not recommended and may not be supported. Confirm mounting orientation with the manufacturer before installation.

Karl Wilson

The SMT-3211PVM-PIP solves a specific operational pain point: reducing infrastructure footprint when surveillance and digital signage are both mandatory. By integrating a 2MP camera directly into the monitor, you eliminate one power connection, one video cable run, and one mounting point per location—meaningful savings when deploying five or ten units across a retail chain or transit network. The 32-inch 1080p display paired with PIP functionality means operators can monitor live surveillance while displaying content to customers simultaneously, without screen-switching overhead.

Technical Highlights:

• 2MP camera resolution (1920 × 1080): Sufficient for area coverage and incident documentation in medium-traffic zones; expect usable facial detail to about 10–12 feet under typical retail or office lighting. If your use case is primarily long-distance identification or license-plate capture, this camera will disappoint—upgrade to a dedicated higher-MP unit in those scenarios.
• DC power architecture: Simplifies commissioning in controlled environments (offices, retail back-rooms, command centers) where AC mains are stable. Do not treat this as a cost advantage over AC-powered alternatives; the savings are modest. The real advantage is reduced electrical complexity and fewer ground-loop risks in dense installations.
• PIP display capability: Allows true parallel operation of surveillance and signage without requiring multiple screens or input switchers. This is not a gimmick—it directly addresses the operational requirement to monitor loss and present customer-facing content simultaneously. If only one function is active at any given time, a simpler single-source monitor is cheaper.

Deployment Considerations:

• Integration dependency: The SMT-3211PVM-PIP requires HDMI or VGA source compatibility. If your NVR outputs only RTSP or proprietary formats, you'll need an external decoder or media player. Confirm your source's output specs before purchasing.
• Fixed indoor use only: DC power and lack of environmental sealing make this unsuitable for outdoor or harsh-environment deployments. If you need weatherproof surveillance or high-temperature tolerance, look to dedicated outdoor cameras and separate displays.
• Consolidation vs. flexibility trade-off: Combining functions into one device saves space and power but creates a single point of failure. If the monitor fails, you lose both surveillance and signage. In mission-critical scenarios, separate displays with independent cameras may offer better resilience.

Best fit: retail loss prevention with concurrent promotional messaging, airport terminals integrating passenger monitoring with wayfinding displays, corporate lobbies mixing security awareness with company announcements, and banking facilities balancing customer-facing content with perimeter surveillance. Not a match for outdoor deployments, field surveillance, or scenarios where one function is secondary.
