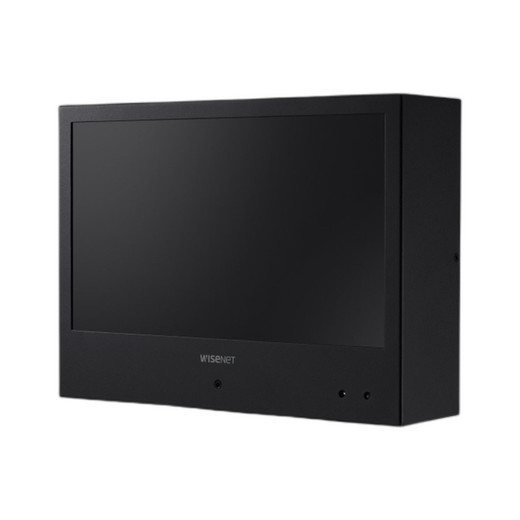

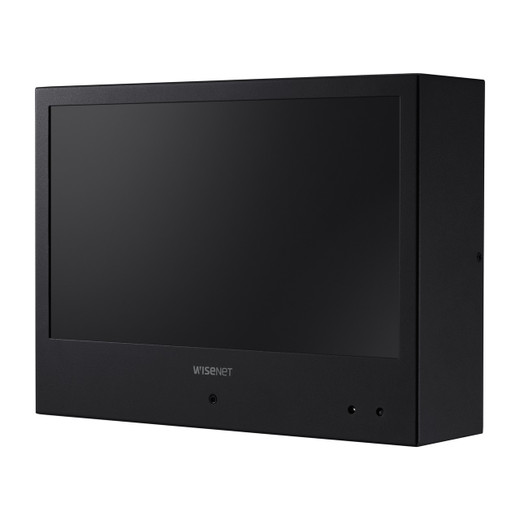

Hanwha SMT-1030PV 10" PoE+ Public View Monitor with Embedded 2MP Camera
The SMT-1030PV combines a 10.1-inch high-brightness display with an embedded 2MP camera into a single compact form factor, eliminating the need to source and mount separate display and surveillance hardware. This convergence reduces installation labor, cable runs, and wall real estate — meaningful advantages in retail storefronts, secure entry lobbies, and access control points where aesthetic integration matters. Powered entirely via PoE+ over a single RJ-45 connection, the unit draws just 0.28A at 48V, so it won't strain a standard managed switch's power budget.
Key Features
- 10.1" LED display with 500cd/m² brightness: Ensures readability in mixed lighting — storefronts with external sunlight and interior ambient lighting won't wash out the screen, eliminating the need for supplemental lighting or hood installation.
- 2MP (2.13M effective pixels) embedded CMOS camera: Sufficient resolution for facial recognition at 4–6 feet and object identification at typical lobby/entrance distances; the 1/2.8" sensor with 4.6mm fixed lens delivers a 140° horizontal × 120° vertical field of view — wide enough for single-point monitoring of entry doors or queue lines without multiple units.
- 150dB Wide Dynamic Range (WDR): Exceptionally rare for this form factor and price point. Handles simultaneous high-brightness and low-brightness areas — think sunlit storefronts with shadowed interior zones or backlit access points — without crushing shadow detail or blowing highlights. Eliminates the need to reposition cameras or add supplemental lighting to compensate for lighting imbalance.
- 0.06 Lux minimum illumination: Captures usable video in near-darkness, reducing reliance on IR fill-light or external illumination in dimly lit back-office areas or low-ambient venues.
- PoE+ (48V 0.28A) power delivery: Single network cable powers both display and camera — no separate 12VDC supply required, no power outlet needed at the mount location. Installation cost savings accrue immediately for distributed deployments.
- H.265, H.264, and MJPEG codec support: H.265 compression reduces bandwidth and storage overhead by roughly 40–50% compared to H.264 on equivalent quality settings — material savings when recording continuously across multiple monitors on bandwidth-constrained networks or limited SD card storage.
- Built-in microSD/SDHC/SDXC slot (up to 256GB): Local video backup independent of network availability. If your network goes down, recording continues to the card. Retrieval does not require remote connectivity — walk to the device and extract the card in seconds.
- Dual alarm I/O (1 input, 1 output): Integrates with door sensors, buzzers, or external relay systems. Trigger an external alarm when motion is detected on the embedded camera, or control a relay when an alarm input fires — useful for integrating with existing access control panels or security systems.
- ONVIF Profile S/G and SUNAPI HTTP API support: Plays nicely with mainstream VMS platforms and IP surveillance infrastructure; no proprietary software or licensing lock-in required to pull video into your central monitoring station.
- Customizable text overlays and "Recording in progress" indicator: The on-screen recording indicator serves as a passive deterrent while maintaining a professional aesthetic — customers know they're being monitored without aggressive signage.
- VESA 75×75mm mount compatibility: Works with standard monitor arm solutions and wall brackets, reducing custom bracket costs and allowing flexibility to reposition the unit if site conditions change.
Integration & Compatibility
The SMT-1030PV (often searched as SMT 1030PV) integrates into IP-based surveillance infrastructure via standard ONVIF compliance. No proprietary controller or separate viewing client is required to access live or recorded video — any ONVIF-compatible network video recorder or VMS platform can ingest the stream. The embedded 20ms response time ensures smooth playback on networked displays, and multi-language support (English, Spanish, French, German, Italian) accommodates diverse facility staffing.
Network connectivity is single-port RJ-45; no separate Ethernet cable or managed PoE+ switch is required if your existing infrastructure already supplies PoE+ to other cameras. For facilities building out PoE power infrastructure, the SMT-1030PV's modest draw (0.28A) allows up to 12–15 units per 90W PoE+ port, depending on switch port rating and cable length.
Environmental & Operational Resilience
Operating temperature range is 0–50°C (32–122°F) with 40–90% relative humidity tolerance — suitable for climate-controlled retail, office, and hospitality spaces. The device is not rated for outdoor exposure, unheated warehouses, or high-humidity environments like commercial kitchens. The 50,000-hour panel lifespan equates to roughly 5–7 years of continuous 24/7 operation before brightness degradation becomes noticeable. Compact footprint (246.2 × 180.4 × 64.8mm) and light weight (2kg) mean minimal structural load on drywall or desk mounts.
Certifications include UL, CE, and FCC approval for use across North America and EU markets without additional testing or compliance overhead.
Frequently Asked Questions
Q: Can the SMT-1030PV serve as a standalone monitor without the embedded camera?
A: No — the device is sold as an integrated display + camera solution. The camera cannot be disabled or physically removed. If you need a display-only unit for control room applications, select a standard PoE+ monitor from the Hanwha lineup instead.
Q: What happens to recorded video if the microSD card fills to capacity?
A: The device supports circular recording (overwrite oldest frames when capacity is reached), or you can configure it to stop recording and alert the administrator. Consult the device configuration manual for loop-recording vs. stop-on-full options.
Q: Is the SMT-1030PV NDAA Section 889 compliant or suitable for U.S. federal procurement?
A: Evidence does not confirm NDAA or Section 889 compliance. Hanwha products are generally available for U.S. government and critical infrastructure use, but this specific model's compliance status should be confirmed directly with the manufacturer or your procurement team before federal contracting.
Q: Can I use the SMT-1030PV outdoors or in a high-humidity environment?
A: No. Operating temperature limits (0–50°C) and lack of IP67 or higher weatherproofing mean the unit is suitable for climate-controlled indoor spaces only. Outdoor or unheated warehouse deployments require a different camera form factor.
Q: Does the SMT-1030PV support two-way audio or microphone input?
A: Evidence does not indicate audio input, built-in microphone, or two-way audio capability. The unit is video and alarm I/O focused; audio is not supported in this model.
Q: What frame rate and bitrate should I expect from the embedded camera?
A: The device delivers smooth video playback at 20ms response time across supported codecs (H.265, H.264, MJPEG). Exact frame rates and bitrates depend on resolution, codec selection, and lighting conditions; consult the detailed device specification sheet or configure the unit in your test lab to determine bandwidth requirements for your network.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SMT-1030PV represents a convergence of display and surveillance technologies—a hybrid approach that reduces hardware complexity and installation costs. Its 150dB WDR capability is exceptional for this form factor, addressing the primary challenge of monitoring areas with mixed lighting (e.g., storefronts with external sunlight and interior ambient light, or backlit access points). The PoE+ power standard is critical: a single network cable eliminates the need for dual drops (power and data) and reduces labor at the point of installation. For retail and hospitality integrators, this form factor saves time and material costs compared to sourcing a monitor, a separate IP camera, and two separate cable runs.
Technical Highlights:
- 150dB WDR with 0.06 Lux floor: Handles extreme lighting ratios and near-total darkness without auxiliary illumination—meaningful when retrofitting existing retail displays or access points that lack supplemental lighting control.
- H.265 codec with microSD backup: Reduces storage overhead by 40–50% vs. H.264, and the 256GB microSD slot allows offline failover recording if network connectivity is lost. Retrieval is immediate—no remote VMS required.
- 140° × 120° field of view from a 2MP fixed lens: Wide enough for single-point monitoring of entry doors, queue lines, or small retail spaces; avoids the cost and complexity of multi-camera layouts for confined spaces.
- PoE+ (0.28A @ 48V): Modest power draw allows up to a dozen units per 90W PoE+ port, reducing switch port consumption and simplifying power budgeting across distributed deployments.
Deployment Considerations:
- No outdoor rating: 0–50°C operating range and absence of IP67 seal mean this is strictly indoor, climate-controlled spaces. Don't attempt deployment in unheated back-of-house areas, loading docks, or weather-exposed vestibules.
- Display-only operation not possible: The camera cannot be disabled. If you need a public-view monitor without embedded surveillance, this is not the right model.
- 4.6mm fixed lens is non-adjustable: Field of view is fixed at install time. If mounting height or distance to the subject changes, you cannot zoom or refocus the lens. Plan the mount location carefully before install.
The SMT-1030PV is strongest in retail point-of-sale zones, secure lobby access points, and small-footprint facilities where a single integrated display + camera unit reduces clutter and installation overhead. Its WDR capability and PoE+ simplification make it worth evaluating against conventional separate-monitor-and-camera layouts for any confined, indoor, mixed-lighting space.
