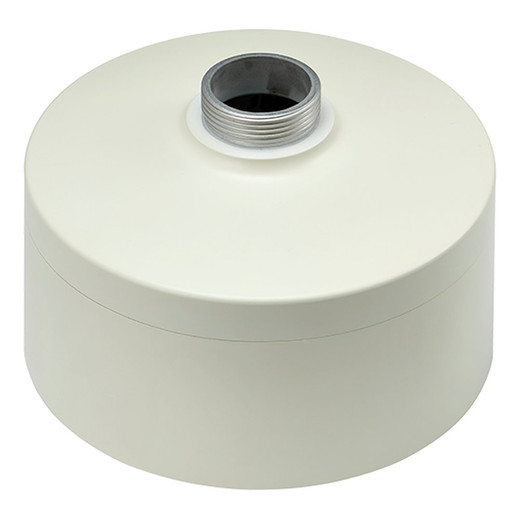

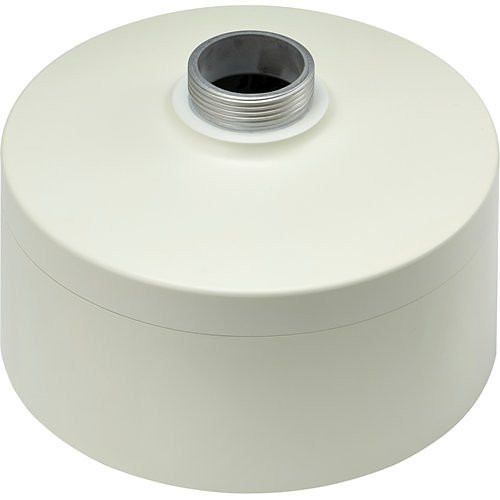

Hanwha SBP-168HM Ceiling Mount Cap Adapter for XNP-6120H
The SBP-168HM is a purpose-built ceiling mount cap adapter engineered exclusively for the Hanwha XNP-6120H fixed camera system. This is a mechanical interface component — not a standalone device — that bridges the camera body to standard ceiling mounting infrastructure. If you're deploying the XNP-6120H in a fixed overhead position, the SBP-168HM ensures precise alignment and secure mechanical coupling. It's a straightforward integration choice: XNP-6120H in your spec, SBP-168HM in your BOM.
Key Features
- XNP-6120H Exclusive Fit: Designed for the XNP-6120H only. No cross-compatibility with other Hanwha IP camera models. Verify your camera model before ordering to avoid mismatch.
- IP66 Environmental Rating: Rated IP66 (dust-tight, continuous water jets), meaning dust ingress and direct rain won't compromise the mount seal. Skip this if you need full submersion protection — that requires IP67 or higher. Suitable for covered outdoor eaves, interior ceilings, and protected mounting locations.
- Extended Operating Range -20°C to 50°C: The adapter material and seals remain stable across this 70°C temperature span. Relevant if you're deploying in unheated warehouses, outdoor-adjacent facilities, or climates with seasonal swings. Not rated for extreme cold (below -20°C) or heat (above 50°C).
- Weather-Resistant Construction: Built from engineering-grade materials formulated to resist moisture absorption and corrosion. This extends service life in high-humidity environments — typical in warehouses, cold storage, and coastal facilities — but does not substitute for proper drainage or ventilation at the mounting point.
- Discrete Black Finish: Neutral black coloring blends with drop-ceiling grids, commercial drywall, and metal framework. Reduces visual signature compared to bright finishes, though finish does not affect optical or electrical performance.
- Secure Mechanical Coupling: Adapter maintains rigid alignment between camera and mount, preventing drift or vibration that could degrade image stability over time. Critical in high-traffic areas where ceiling vibration is present.
Integration & Compatibility
The SBP-168HM mounts to standard 1.5-inch or metric ceiling grids and threaded mounting infrastructure. It serves as the mechanical interface layer between the XNP-6120H camera base and your ceiling structure. Verify your mounting surface and hardware before purchase — the adapter assumes standard commercial ceiling hardware availability. For integration guidance specific to your facility, reference the XNP-6120H installation documentation.
Deployment Scenarios
Typical use cases include retail store ceilings (high foot traffic areas), corporate office spaces, warehouse and distribution centers, and transportation hubs. Any fixed-position deployment where the XNP-6120H is the specified camera and ceiling mounting is the chosen installation method. Not suitable for pole-mounted, wall-mounted, or pendant installations — those require different hardware.
Frequently Asked Questions
Q: Will the SBP-168HM work with other Hanwha camera models?
A: No. The SBP-168HM is designed exclusively for the XNP-6120H. Use of this adapter with any other camera model will result in poor fit, misalignment, and potential safety hazards. Always verify camera model compatibility before purchase.
Q: Can I use the SBP-168HM in full outdoor weather exposure?
A: The IP66 rating handles dust and rain jets, but not continuous outdoor weather or direct sunlight exposure over extended periods. Deploy in covered eaves, overhangs, or protected outdoor locations. For fully exposed outdoor mounting, consult the XNP-6120H product documentation for alternative mounting solutions.
Q: What mounting hardware is included?
A: The adapter itself is the component. Verify with your facility's IT or facilities team regarding available ceiling mounting hardware and anchor points before installation.
Q: Does the SBP-168HM affect camera performance or image quality?
A: No. The adapter is a passive mechanical component. It does not alter optical path, sensor behavior, or electrical operation of the XNP-6120H. Its role is structural stability only.
Q: Is the SBP-168HM suitable for high-vibration environments?
A: Yes. The rigid mechanical coupling reduces vibration-induced drift. In locations with significant ceiling vibration (industrial facilities, transit stations), proper installation of the adapter is essential for maintaining stable image framing.
Q: What is the operating temperature range for the SBP-168HM?
A: The adapter operates reliably between -20°C and 50°C (-4°F to 122°F). Outside this range, material properties may shift. Verify your facility's ambient temperature profile before deploying in extreme climates.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-168HM is a passive mechanical accessory, not a networking or image processing component. Its job is precise mechanical coupling and environmental protection of the XNP-6120H interface. If you're mounting an XNP-6120H to a ceiling, the SBP-168HM eliminates guesswork about fit and alignment — it's the correct interface for that camera model. The IP66 rating and -20°C to 50°C operating temperature window are non-negotiable in humid or temperature-variable facilities.
Deployment Considerations:
- Model-Exclusive Design: The SBP-168HM is engineered only for XNP-6120H mounting. If your project includes other Hanwha fixed cameras, you'll need different adapters for each model. Verify your entire camera BOM against mounting adapter specs before procurement.
- Temperature Stability Matters: The -20°C to 50°C operating range is hard boundary. Unheated warehouses, attics, and outdoor-adjacent spaces near this threshold should be verified against your facility's actual seasonal temperature profile. Exceeding limits can degrade seal integrity.
- IP66 is Not IP67: IP66 means rain and dust jets won't breach the mount seal, but full submersion or continuous high-pressure spray may. Ceiling-mounted installations rarely encounter this, but if your facility has washdown operations or high-pressure cleaning schedules, confirm the ceiling location won't be subject to direct spray.
- Vibration Isolation: The rigid coupling is a feature in vibration-prone environments, but ensure the underlying ceiling mount point is itself structurally sound. A loose ceiling tile or degraded anchor will defeat the adapter's mechanical stability.
Best fit: retail, corporate, warehouse, and transit facilities where XNP-6120H is specified and ceiling mounting is the planned installation method. Skip this if your facility's temperature range regularly exceeds ±20°C ambient or if you require full-submersion environmental protection.
