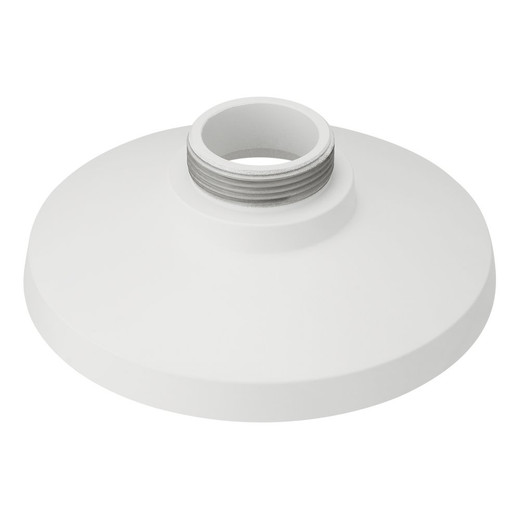

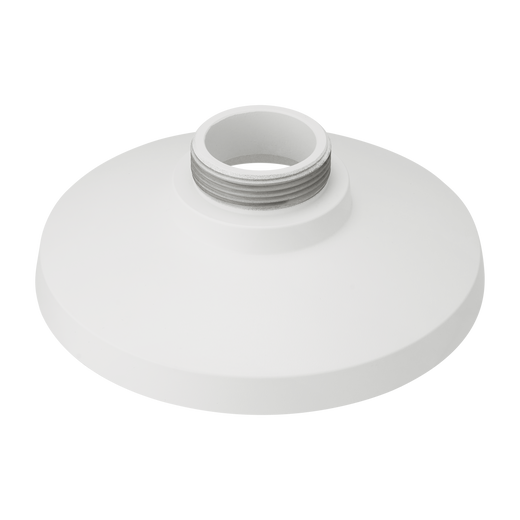

Hanwha SBP-301HMW3 Cap Adapter

The Hanwha SBP-301HMW3 is a precision aluminum cap adapter engineered for pole-mount and wall-mount surveillance installations across retail, transportation, critical infrastructure, and enterprise security deployments. This accessory bridges the connection between your Hanwha camera housing and standard industrial mounting poles, ensuring stable, secure positioning in both indoor and outdoor environments.

Key Features

• 1.5" NPT Pipe Thread: Integrates directly with standard industrial mounting poles and infrastructure — no proprietary adapters required, reducing procurement complexity and cost across multi-site deployments.
• Aluminum Construction: Resists corrosion from salt spray, rain, and airborne contaminants — critical in coastal, urban, or high-humidity warehouse environments where steel mounts degrade within 12–24 months.
• Lightweight at 270g (0.60 lb): Reduces installation labor and strain on mounting brackets; a single technician can position and secure without mechanical assistance.
• Ivory/White Finish: Blends with standard ceiling infrastructure and building stock — avoids the visual jarring of black or silver mounts in retail and hospitality settings where aesthetics matter to tenants and customers.
• Compact Diameter (Ø155.1mm / 6.11"): Fits within standard architectural ceiling plenums and conduit runs; does not interfere with sprinkler systems, HVAC ducts, or cable trays — a practical constraint in retrofits.
• 55.0mm Height (2.17"): Low profile minimizes protrusion above suspended ceilings, reducing snag hazards and compliance issues in warehouse automation environments where overhead clearance is measured in inches.

Integration & Compatibility

The SBP-301HMW3 (often searched as SBP 301HMW3) is designed for Hanwha surveillance systems requiring stable pole-mount solutions. The 1.5" NPT threading is the industry standard for structural mounting, meaning this adapter works with any camera housing or junction box equipped with female NPT ports — not locked to a single Hanwha camera model. If you're standardizing across camera mounting infrastructure in a multi-vendor environment, verify that your Hanwha housing includes a female 1.5" NPT port before ordering.

Deployment Considerations

Use this adapter in pole-mount or wall-mount configurations where cameras sit above suspended ceilings or on exterior structural poles. For flush wall mounts or low-profile installations where minimal protrusion is critical, verify ceiling or wall depth before committing. In high-vibration environments (near heavy machinery or transport hubs), ensure the mounting pole itself is rigid — this adapter cannot compensate for flex in the structural support. For outdoor installations in sub-zero climates, aluminum remains stable; however, ensure fasteners are stainless steel or plated to prevent seizure during thermal cycling.

Frequently Asked Questions

Q: Is the SBP-301HMW3 suitable for outdoor use?

A: Yes. Aluminum resists corrosion better than steel, particularly in humid or salt-spray environments. However, pair it with stainless steel fasteners and ensure your camera housing is rated for the outdoor temperature and moisture conditions you're deploying into.

Q: What thread type does the SBP-301HMW3 use?

A: 1.5" NPT (National Pipe Thread). This is the standard industrial thread, compatible with most structural mounting poles and junction boxes.

Q: Can I use the SBP-301HMW3 in ceiling tile drops or suspended grid systems?

A: Only if the mounting pole extends through the grid and is anchored to solid structure above (structural steel or concrete). Do not rely on ceiling tile grid alone — it will not support the weight and vibration of a full camera assembly.

Q: What fasteners are included with the SBP-301HMW3?

A: No fasteners are included. The adapter requires stainless steel or plated bolts and lock washers appropriate to your mounting pole's thread. Consult your structural engineering documents or Hanwha installation guide for fastener sizing.

Q: How do I know if my Hanwha camera housing is compatible with the SBP-301HMW3?

A: Check your camera housing or junction box specification sheet for a female 1.5" NPT port. If the port listing is missing or uses a different thread size (1.25", 2", etc.), the SBP-301HMW3 will not fit.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Hanwha SBP-301HMW3 is a straightforward piece of kit — aluminum cap adapter with 1.5" NPT thread. Its real value isn't in the part itself, but in what it enables: a standards-based connection point that doesn't lock you into proprietary mounting brackets. In a 50-camera retail rollout or a warehouse retrofit, that standardization saves weeks on procurement and headaches during installation.

Technical Highlights:

• 1.5" NPT Thread: Industry-standard pipe fitting. This means you can source poles, junction boxes, and elbows from any industrial supplier — not waiting for Hanwha-specific accessories to clear customs or back-order.
• Aluminum Body: Typically lasts 5–8 years in humid or salt-spray settings without visible pitting or seizure, compared to 18–24 months for untreated steel. In a coastal retail or transportation hub, the corrosion difference is measurable on the replacement schedule.
• 270g Weight: Light enough that a single technician doesn't need a lift or second set of hands to position a camera assembly. Cumulative labor savings on a 20-camera job is real — roughly 4–6 hours of installers working at height.

Deployment Considerations:

• This adapter is a dumb mounting interface — it has no locking mechanism, no swivel, no orientation compensation. Your pole must be plumb, and your camera housing must thread cleanly. If either is off-spec, the camera sits crooked.
• No fasteners included. Stainless steel bolts and lock washers are non-negotiable in outdoor or damp environments; neglecting this detail causes the adapter to work loose within 6–12 months under vibration or thermal cycling.

The SBP-301HMW3 is the right call for warehouse automation facilities, retail chains standardizing on Hanwha cameras, and integration shops where you need to cut procurement time and reduce vendor lock-in on mounting infrastructure. Skip it if you've already committed to a proprietary quick-release mount system or if your poles are non-standard (1.25", 2", or custom threads).
