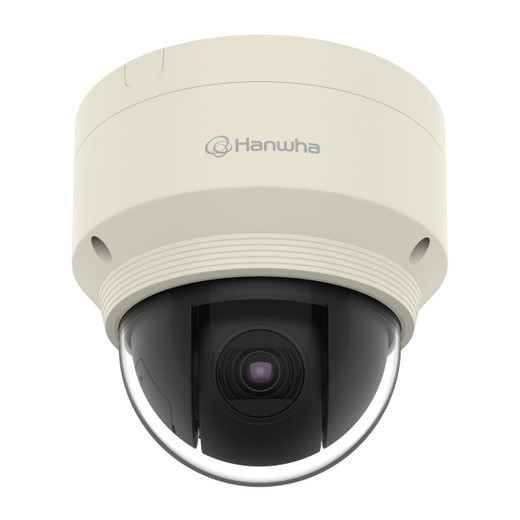

Hanwha XNP-6120H/KME 2MP Outdoor Mini PTZ Dome Camera
The Hanwha XNP-6120H/KME is a 2MP outdoor mini PTZ dome from the Hanwha Vision Wisenet X Series — a compact PTZ built for deployments where you need optical reach and vandal resistance without committing to a full-size pan-tilt unit. With a 5.2–62.4mm motorized lens delivering 12x optical zoom and an additional 32x digital zoom, this camera covers subjects from wide overview to tight close-up without pixel interpolation artifacts degrading your evidence-grade frames.
Overview
The XNP-6120H/KME targets perimeter entrances, parking structures, retail exteriors, and mid-size commercial sites where operators need to zoom in on events without dispatching personnel. The mini dome form factor keeps the footprint discrete while the IK10 impact rating means the housing survives deliberate interference — relevant anywhere public-facing or in unmonitored areas. TAA compliance makes this unit eligible for federal procurement and government-adjacent projects. The alternative SKU SQ-XP612HKME references the same unit through certain distribution channels — both designations cover identical hardware.
Key Features
- 12x Optical Zoom (5.2–62.4mm): Optical reach to 62.4mm means you can resolve license plate characters or facial detail at distances where a fixed lens would deliver a useless smear. Pair with the 32x digital zoom for investigative playback on already-recorded footage. When selecting from PTZ cameras, this zoom ratio suits mid-range perimeters up to roughly 100–150 feet depending on subject size.
- 1080p Full HD at 30fps: 1920x1080 at 30fps delivers fluid motion capture — important when tracking a moving subject through the PTZ field. The 16:9 aspect ratio maps cleanly to standard monitor layouts without cropped or letterboxed dead zones.
- 150dB WDR: At 150dB, this is wide dynamic range capable of handling simultaneously bright and shadowed zones — a sun-lit parking lot entrance with a shaded canopy overhead, for example. Most budget PTZs top out at 120dB; 150dB is a meaningful gap when scenes include direct sun exposure.
- H.265 Compression: H.265 cuts storage consumption roughly 40–50% compared to H.264 at equivalent quality. On a 24/7 recording PTZ, that reduction directly translates into fewer drives or longer retention windows on your NVR. MJPEG remains available for legacy integrations that require it.
- Day/Night (ICR) with IR: The mechanical IR cut filter switches automatically, maintaining color accuracy during daylight and dropping to monochrome IR-assisted imaging after dark. No manual scheduling required — the ICR responds to actual lux levels.
- IP66 + IK10 Ratings: IP66 blocks wind-driven rain and dust ingress — adequate for exposed exterior mounting. IK10 withstands 20-joule impacts, the highest IK classification, so this unit won't fold under a deliberate strike or accidental contact from equipment. Budget for a compatible pendant or wall mount rated for PTZ loads at your intended installation height.
- SD/SDHC/SDXC Slot (up to 512GB): Edge storage up to 512GB means the camera can buffer or record locally if network connectivity drops — useful in locations where intermittent WAN is a real risk. It is not a replacement for centralized recording but provides a meaningful failover layer.
- Bi-directional Audio: Two-way audio enables live voice-down from a control room — suitable for deterrence at entry points or intercom-style communication at unmanned access zones.
- AI-Based Video Analytics: The Wisenet X Series embeds deep-learning algorithms that classify people, vehicles, faces, and license plates in real time. This reduces nuisance alerts from wind-blown foliage, lighting transitions, or animals — helping operators focus attention on actionable events rather than chasing false triggers.
Integration and Compatibility
The XNP-6120H/KME supports H.265, H.264, and MJPEG with multiple simultaneous streams, making it compatible with the broad range of VMS platforms that accept ONVIF-conformant streams. The Wisenet X Series is natively supported by Hanwha's own Wisenet WAVE VMS and works with most third-party systems via ONVIF. Confirm your VMS version supports the X Series plugin before specifying, particularly on older installs.
Frequently Asked Questions
Q: Is the XNP-6120H/KME TAA compliant?
A: Yes. The XNP-6120H/KME carries TAA (Trade Agreements Act) compliance, making it eligible for federal government and GSA-schedule procurement.
Q: What is the optical zoom range on the XNP-6120H/KME?
A: The XNP-6120H/KME uses a 5.2–62.4mm motorized lens providing 12x optical zoom, supplemented by 32x digital zoom.
Q: What compression formats does the XNP-6120H/KME support?
A: It supports H.265, H.264, and MJPEG with multiple simultaneous streams.
Q: Can the XNP-6120H/KME store footage locally?
A: Yes. The camera includes an SD/SDHC/SDXC memory slot supporting cards up to 512GB for edge recording or network failover buffering.
Q: What are the environmental ratings for the XNP-6120H/KME?
A: The XNP-6120H/KME is rated IP66 for weather resistance and IK10 for impact resistance — the highest IK classification available.
Q: Does the XNP-6120H/KME support two-way audio?
A: Yes, bi-directional audio is supported, enabling live voice-down from a control room or intercom-style use at access points.
The spec I keep coming back to on the XNP-6120H/KME is the 150dB WDR rating. Most mid-range PTZs I spec sit at 120dB — that extra 30dB isn't cosmetic, it's the difference between a usable image at a sun-facing parking garage entrance and a blown-out white rectangle for half your shift. This unit handles the transition from direct sun to deep shadow in a single frame without the halo banding that trips up analytics engines.
Technical Highlights:
- 12x Optical Zoom: The 5.2–62.4mm motorized range gives you genuine optical reach — critical for reading plates or faces at 80–120 feet without relying on digital zoom that degrades resolution at the sensor level.
- H.265 + 512GB Edge Storage: H.265 cuts your storage overhead roughly in half versus H.264. Combined with a 512GB SD card slot, you have a credible local failover buffer if your network segment goes down during an event.
- IK10 Impact Rating: At 20 joules, IK10 is the ceiling of the IK scale. On a publicly accessible PTZ — loading dock, parking structure column, school exterior — this matters more than most buyers realize until they deal with their first vandalism incident.
Deployment Considerations:
- This is a 2MP unit — at 1080p, you get smooth 30fps PTZ tracking, but if your scene requires simultaneous wide and detail coverage at 4K, you'll need to consider a higher-resolution model in the Wisenet X family. Use this where zoom range and environmental hardening are the primary requirements, not pixel density.
- TAA compliance is verified for the XNP-6120H/KME — but confirm your procurement channel requires the /KME suffix specifically if the alternate SKU SQ-XP612HKME appears in your quote. Both cover the same hardware; documentation for TAA-audited purchases should reflect the correct MPN.
The XNP-6120H/KME is the right call for a mid-range outdoor perimeter at a transit hub, municipal facility, or educational campus where a compact PTZ needs to survive weather and tampering while tracking subjects across a 100-foot zone — and where TAA compliance is non-negotiable for procurement.
