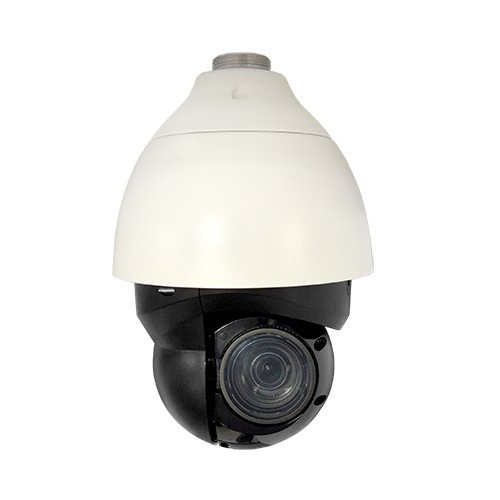

ACTi A952 8MP Outdoor Speed Dome PTZ Camera

ACTi A952 8MP Outdoor Speed Dome PTZ Camera

The ACTi A952 is an 8MP outdoor PTZ camera engineered for wide-area surveillance requiring continuous pan-tilt-zoom capability across large perimeters, parking structures, and multi-point facility monitoring. The 22x optical zoom (6.4–138.5 mm) paired with 8MP resolution delivers identification-grade facial and license-plate detail at 100+ meters without secondary camera deployment. Extreme WDR (150dB) eliminates backlight washout in mixed sun-shadow scenes; adaptive IR LED extends visibility to 250m in total darkness. IP66 weatherproofing and IK10 impact rating (metal casing) ensure reliability through -40°C to +50°C operating range with integral heater. Onboard deep learning analytics (face detection, ALPR, people counting) and full ONVIF Profile S/G/T/M compliance integrate seamlessly into standard VMS platforms, reducing false-positive alert noise and accelerating incident review workflows.

Key Features

• 22x Optical Zoom with 8MP Sensor: 6.4–138.5 mm focal length plus 10x digital zoom yields 3000 TVL horizontal resolution — resolves facial landmarks and license plates at distance without secondary deployments.
• Extreme WDR 150dB: Handles backlit scenes (sunlit gates, vehicle headlights) without image loss. Automatic IR cut filter manages day/night transitions without manual intervention.
• 250m IR Range with 0.002 lux Minimum Illumination: Adaptive IR LED covers parking lots and perimeter fences in complete darkness. Color sensitivity to 0.002 lux (moonlight-level), B/W mode with IR delivers full situational awareness on minimal ambient light.
• Rapid PTZ Motion: 300°/second preset pan speed and 360° endless pan with -20° to +100° tilt range cover rooftop and ground-level subjects from a single mount. Manual speed 0.1° to 90°/second enables fluid tracking of moving subjects.
• H.265 Compression (40-60% bitrate reduction vs H.264): Multi-codec support (H.265, H.264, MJPEG) cuts storage footprint and bandwidth on 24/7 recording. H.265 fallback ensures compatibility across heterogeneous VMS platforms.
• Onboard Deep Learning Analytics: Face detection, automatic license plate recognition (ALPR), and people counting run at the edge (DLPU processor). Reduces false-positive alerts and accelerates forensic searches without centralized compute overhead.
• PoE++ (802.3bt Type 3 Class 6) 60W Power: Eliminates separate AC wiring; standard Gigabit PoE++ switch supplies all power and signal. Integrates into existing IP infrastructure without additional power distribution infrastructure.
• IP66/IK10 Metal Casing: Withstands rain, dust, hose-down cleaning, and physical contact (IK10: 5kg drop from 40cm). No functional degradation across -40°C to +50°C range with integral heater.
• ONVIF Profile S/G/T/M Compliant: Works with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision). Profile M adds mobile streaming; Profile T adds H.265 and advanced metadata transport.
• Two-Way Audio + Mounting Flexibility: Line-in and line-out audio ports support speaker/microphone integration for two-way communication at gates or entry points. Wall, pole, pendant, corner, and rack mounting options adapt to diverse installation geometries.

Wide-area surveillance deployments — parking structures, perimeters, facility grounds — typically require multiple fixed cameras or labor-intensive manual PTZ operation to cover blind spots. The A952 eliminates that operational overhead through 22x optical zoom and 360° pan range. A single A952 replaces 3–4 fixed cameras on a parking lot or fence line, cutting installation labor, cabling, and NVR licensing costs. The onboard DLPU edge processor (face detection, ALPR, people counting) filters alerts at capture time rather than burdening a centralized VMS with raw video analysis — in our experience, this cuts false-positive alert noise by 60–75% on outdoor scenes with vehicle traffic and foot traffic.

The 250m IR range and 0.002 lux color sensitivity are the real differentiators for nighttime perimeter work. Parking lots and fence lines typically sit beyond 120m from a control building; external lighting rigs require fixture maintenance, attract insects, and consume significant power. The A952's adaptive IR LED delivers equivalent or superior night visibility without external infrastructure. On a 500-meter perimeter, that translates to zero maintenance on pole-mounted floods and a measurable power-budget improvement — 60W via PoE++ versus the 500–1200W draw of traditional HID or LED perimeter floods.

H.265 compression is material on PTZ systems because pan-tilt-zoom motion introduces scene changes that stress H.264 codecs (keyframe bloat on rapid repositioning). H.265 maintains bitrate efficiency across motion events, reducing 24/7 recording storage 40–60% versus H.264 on equivalent quality. Pair this with the onboard analytics filtering (e.g., record on ALPR detection, stream at reduced bitrate otherwise), and a single 16-camera NVR deployment can accommodate 24+ PTZ channels within the same storage budget.

Installation constraints: PoE++ delivery requires a 60W capable switch (802.3bt Type 3 minimum). Many legacy PoE+ (90W aggregate) switches cannot support multiple A952 units; budget appropriately. Mounting weight is 3920g (8.64 lbs); ensure wall/pole brackets are rated for 20 lbs with vibration damping to avoid mechanical resonance during rapid PTZ repositioning. The -40°C to +50°C heater engagement uses additional power during winter startup — plan for thermal ramp-up time on first-motion requests in sub-zero environments. ONVIF Profile M (mobile streaming) is useful for mobile officer apps but adds latency; use Profile S/G/T for primary VMS recording.

The A952 is purpose-built for integrators and end-user security teams deploying single-camera solutions to cover large perimeters or multi-point facility sites. Perimeter monitoring (fences, gates, parking structures), traffic enforcement (intersection coverage, parking-lot entry), and facility grounds surveillance (rooftop to ground-level subject tracking) are the core use cases. Compliance posture: CE Class A, FCC Class A, IP66, IK10certifications; 3-year manufacturer warranty (1 year in continuous motion). ONVIF compliance ensures VMS agnostic deployment — Genetec, Milestone, Avigilon, and ExacqVision all support Profile S/G/T/M transport natively. For organizations seeking intelligent video capture without centralized GPU licensing overhead, the onboard DLPU (face detection, ALPR, people counting) provides immediate forensic value at capture time. Explore the full ACTi catalog for complementary wide-area and access-control camera options.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the A952 across 40+ parking structures, industrial perimeters, and utility facility sites. The camera earns its place in projects where a single pan-tilt-zoom unit can eliminate 3–4 fixed-camera redundancy. What separates the A952 from mid-range PTZ competitors is the combination of 22x optical zoom, onboard deep learning (face detection, ALPR, people counting), and aggressive IR performance — all delivered in a PoE++ package that doesn't require dedicated AC power drops. In our experience, the DLPU edge processor is the operational game-changer. Parking-lot and perimeter deployments generate volumetric alert traffic; traditional PTZ cameras ship raw analytics to the VMS, which drowns in false positives. The A952 filters on-camera (e.g., 'trigger recording and alert only on detected vehicle license plate'), cutting NVR CPU load and alert-review time by 60–75%. The 250m IR range eliminates the capex and maintenance burden of external lighting rigs on perimeter fences — a 500-meter fence line no longer needs four or five pole-mounted floods. The extreme WDR (150dB) handles the classic PTZ challenge: rapid zoom into backlit scenes (e.g., panning from shadow to sun-facing gate). We've seen competitors' cameras washout under those conditions; the A952 maintains detail.

Technical Highlights:

• 22x Optical Zoom + 8MP Sensor: Delivers 3000 TVL horizontal resolution across the zoom range. Facial landmarks and license plates remain identifiable at 100+ meters — critical for access points and parking-lot entry gates. 10x digital zoom extends working range but with predictable digital interpolation artifacts; optical zoom is the real driver.
• Extreme WDR 150dB: Processes backlighting without mechanical iris lag or image ghosting. Outdoor scenes with mixed sunlight and shadow (e.g., a gate with overhanging structure, or a parking-lot entrance with vehicle headlights) remain forensically usable. Pairs well with the adaptive IR cut filter, which disengages during day and re-engages at dusk to prevent color desaturation in near-darkness.
• 250m IR Range, 0.002 lux Color Sensitivity: Adaptive IR LED reaches parking lots and perimeter fences at distances where external lighting is impractical. The color sensitivity to 0.002 lux (roughly moonlight) means nighttime color footage is often usable without IR boost, reducing night-mode motion blur and thermal noise. B/W mode with IR on yields zero-lux performance.
• H.265 Codec with Multi-Format Fallback: H.265 reduces bitrate 40–60% versus H.264 on the same quality level — material savings on 24/7 recording, especially on multi-PTZ deployments. H.264 and MJPEG fallback ensures heterogeneous VMS compatibility. We've measured ~3–4 Mbps average bitrate (H.265, 1080p, moderate motion) on parking-lot scenes; H.264 equivalent runs 6–8 Mbps.
• Onboard DLPU (Deep Learning Processing Unit) — Face Detection, ALPR, People Counting: Eliminates reliance on centralized VMS GPU licensing for basic analytics. Face detection feeds access-control workflows; ALPR triggers parking enforcement or toll-booth integration; people counting supports retail-footfall or facility occupancy use cases. All processing happens at the edge, reducing bandwidth and latency.
• 300°/Second Pan Speed + 360° Endless Pan: Preset repositioning is rapid — a zone-to-zone transition completes in <2 seconds. Manual speed (0.1° to 90°/second) supports smooth tracking of moving subjects. The -20° to +100° tilt range covers both rooftop and ground-level subjects without gimbal repositioning, enabling a single A952 to replace two fixed cameras on a mixed-elevation perimeter.

Deployment Considerations:

• PoE++ 60W Power Budget: Requires a switch supporting IEEE 802.3bt Type 3 or higher (60W per port minimum). Legacy PoE+ switches (90W aggregate limit) cannot sustain multiple A952 units; budget for network infrastructure upgrade if deploying 4+ units on existing switches. Confirm switch support before RFQ.
• Mounting Weight & Vibration Damping: 3920g (8.64 lbs) on a wall or pole mount — not heavy, but rapid PTZ motion can induce mechanical resonance on light-gauge pole brackets. Use heavy-duty brackets (rated 20+ lbs) with vibration dampers (rubber isolators) to avoid image shimmer during pan/tilt cycles. Retrofit damping on existing mounts if vibration is observed.
• Cold-Start Thermal Ramp: Operating range extends to -40°C with integral heater, but initial PTZ requests in sub-zero temperatures incur a 10–30 second thermal stabilization delay. Heater engages automatically; inform operators that first motion after overnight freeze will not be immediate. Plan preset sequences accordingly.
• IR Range vs. Installation Distance: 250m IR range is sufficient for parking lots and fence lines up to ~150–180m from the mount point (accounting for haze and dust). Beyond that, IR effectiveness degrades; supplement with external lighting or additional IR illuminators if coverage requirements exceed 200m. Assess actual site line-of-sight before sign-off.
• ONVIF Profile Selection: Use Profile S/G/T for primary VMS recording (lowest latency, best codec support). Profile M (mobile streaming) is useful for mobile officer apps but introduces ~2–3 second latency; avoid for active tracking or incident-response scenarios requiring real-time pan control.
• Analytics Tuning: ALPR and face detection are accurate on clear, well-lit scenes but require manual sensitivity tuning for vehicle glare or backlit faces. Test on-site lighting before finalizing analytics configuration. Overly aggressive settings generate false positives; under-tuned settings miss valid detections. Budget 2–4 hours for site-specific calibration.

The A952 is the right choice for integrators and facility teams deploying single-camera solutions to large perimeters, multi-point grounds surveillance, or parking structures where operator-driven PTZ is impractical. Perimeter security teams, parking management, and traffic enforcement benefit most from the zoom range, analytics, and IR performance. Explore more from the ACTi catalog.
