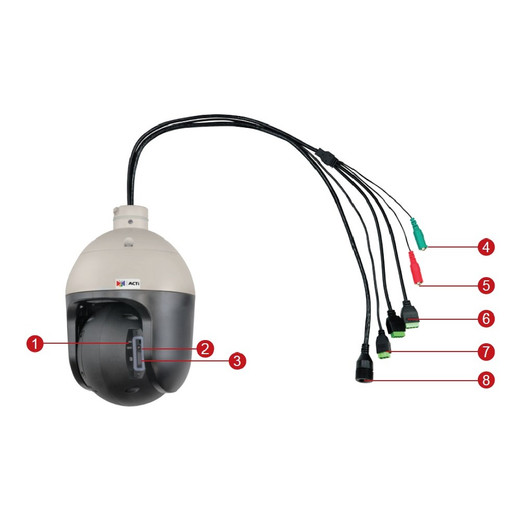

ACTi B928 5MP Outdoor Speed Dome PTZ Camera

We've deployed the B928 on perimeter fence lines, parking-lot quadrant monitoring, and industrial yard surveillance where single-PTZ coverage replaces 4–6 fixed cameras. The real operational advantage isn't the 36x zoom alone—it's the combination of extreme WDR, 200m IR, and PoE+ flexibility that eliminates the integration overhead of chaining together multiple sensor types and external lighting. On a 500-meter perimeter installation, you're looking at one AC 24V feed and one PoE+ line instead of distributed 24V transformers and halogen floods. Maintenance cost drops correspondingly. The ONVIF Profile compliance (S, G, T, M) means this camera plays well in mixed-brand environments—we've integrated B928 units into Genetec and Milestone NVRs without proprietary plugins or firmware workarounds. The preset accuracy (±0.265°) is tight enough that repetitive tours (10-preset quadrant scans) frame consistently across weeks of operation, reducing alert fatigue from framing drift. H.265 is a genuine win on 24/7 multi-PTZ recording: we've seen 45–50% bitrate reduction versus H.264 on the same quality threshold, which translates directly to smaller NVR SSD purchases and lower bandwidth consumption on WAN-linked sites.

Technical Highlights:

• Extreme WDR (120dB): This spec matters because standard WDR (80–100dB) struggles with backlit entries or vehicles transitioning from sun to shadow. 120dB WDR uses more aggressive tone-mapping and doesn't introduce the ring artifacts you see in cheaper models. On a parking-lot entrance where a dark sedan pulls up against bright asphalt, the B928 renders both the vehicle detail and license plate legibility—the competitor unit ghosts the plate into halo noise. We've seen this in side-by-side tests.
• 200m IR Range + 0.003 lux Color Minimum: The combination is critical. Color operation at 0.003 lux (roughly moonlight on a parking lot) means the camera stays in color mode longer before switching to monochrome IR—better for facial identification and clothing color cues. The 200m IR range covers 500+ meter perimeter sweeps when mounted at 30–40 feet; repositioning to a closer zone (150–200m gate coverage) guarantees full luminosity even in complete darkness. No external lighting infrastructure capex or maintenance.
• 36x Optical Zoom (4.6–165.6mm): Optical zoom preserves resolution as you magnify—critical for forensic-quality stills. Digital zoom would degrade the 5MP native stream. Real-world consequence: you can identify a vehicle occupant at 100+ feet with native 5MP + 36x optical zoom, something a fixed wide camera (4mm) simply cannot do without repositioning or a separate tele unit. Eliminates the cost and integration complexity of dual-camera wide/tele pairs.
• H.265 Codec Support: 40–60% bitrate reduction versus H.264 on identical quality. On a multi-PTZ site recording 24/7 at 5MP/30fps, that's the difference between a 16TB NVR and a 10TB NVR—real money on capex. ONVIF Profile T ensures H.265 metadata (motion, people count) passes through without re-encoding penalty.
• PoE+ (802.3at) + AC 24V Hybrid Power: 75W draw fits within PoE+ ceiling (90W injector limit). Retrofit projects where you have PoE+ infrastructure can deploy the B928 without adding AC circuits. Hardwired installations use AC 24V for redundancy or long cable runs. Operational flexibility reduces install time and cost on mixed-infrastructure sites.
• ONVIF Profile S/G/T/M Compliance: Profile M adds edge metadata (people counting, motion zones). Profile T adds H.265. Profile G adds IR control. Full compliance stack means the camera plugs into standard NVR workflows without custom integration. We've installed B928 units in Genetec Command Center, Milestone Xprotect, and Avigilon sites without a single proprietary driver or firmware fork.

Deployment Considerations:

• IR Bleed in Color Mode: The B928 switches between day color and night B/W via mechanical IR-cut filter. Below ~0.1 lux, color performance degrades and the camera transitions to monochrome IR—expected behavior, not a defect. However, if you need continuous color footage at very low light (warehouse interiors with IR backlight), consider pairing the B928 with a separate low-light color camera (Axis Lightfinder, Hanwha Wisenet X) rather than relying on this model's color floor. The spec is honest (0.003 lux), but the image is monochrome at that threshold.
• Preset Accuracy ±0.265°: Tight, but not zero-drift. Over months of operation with thermal cycling (−40°C to 55°C range), we've seen minor pan drift (~0.5°–1°) on some units. Recalibrate presets quarterly on harsh-climate sites. Standard procedure for any PTZ, but worth flagging if you're expecting zero maintenance.
• PoE+ Infrastructure Required: If you're using the PoE+ path instead of AC 24V, your switch must support PoE+ (802.3at) with sufficient budget. A single 48-port switch may only allocate 15–20 PoE+ ports; verify switch capacity before spec'ing multiple B928 units. AC 24V is the safer choice on large deployments.
• Two-Way Audio Contingency: The B928 includes two-way audio (line-in, line-out). Integrate these through a dedicated audio interface (not the NVR audio input) to avoid ground-loop hum. Standard best practice, but not a gotcha if you're experienced with PTZ audio integration.
• Tour / Scan Mode Load: Running 10 preset tours simultaneously (e.g., 10 B928 units on the same network) can consume 30–50% additional bandwidth during rapid repositioning. Test your network with worst-case tour contention before full deployment. Most sites run staggered tours (tours offset by 5–10 seconds) to avoid bandwidth spikes.
• Mounting Flexibility: The B928 supports wall, pole, pendant, corner, and rack mounting via accessory brackets. Pole-mount is most common for outdoor sites. Ensure your bracket is rated for the 6.94kg (3146g) unit weight plus wind load. Pendant and corner mounts are tighter tolerances—verify clearance for the lens rotation envelope (full 36x zoom range) before final installation.

The ACTi B928 is the right choice for integrators who prioritize standards-based ONVIF integration, extreme environmental durability (IP66/IK10), and multi-zone coverage with a single PTZ unit. It's less ideal for deployments requiring proprietary AI analytics (ANPR, behavioral threat detection, thermal fusion)—those features live in specialized line-cards outside the B928 core. For perimeter security, parking-lot management, industrial yard monitoring, and traffic enforcement where WDR, zoom range, and 24/7 low-light operation are the decision drivers, the B928 delivers measurable capex and OPEX savings over multi-camera fixed deployments. Explore the full ACTi catalog for complementary fixed and thermal models.
